BDS Suspension 4 Inch Lift Kit w/ 4-Link Ram 3500 2013-2018 4WD Gas
-
Free shipping on orders over $100
-
Secure payments
- Available

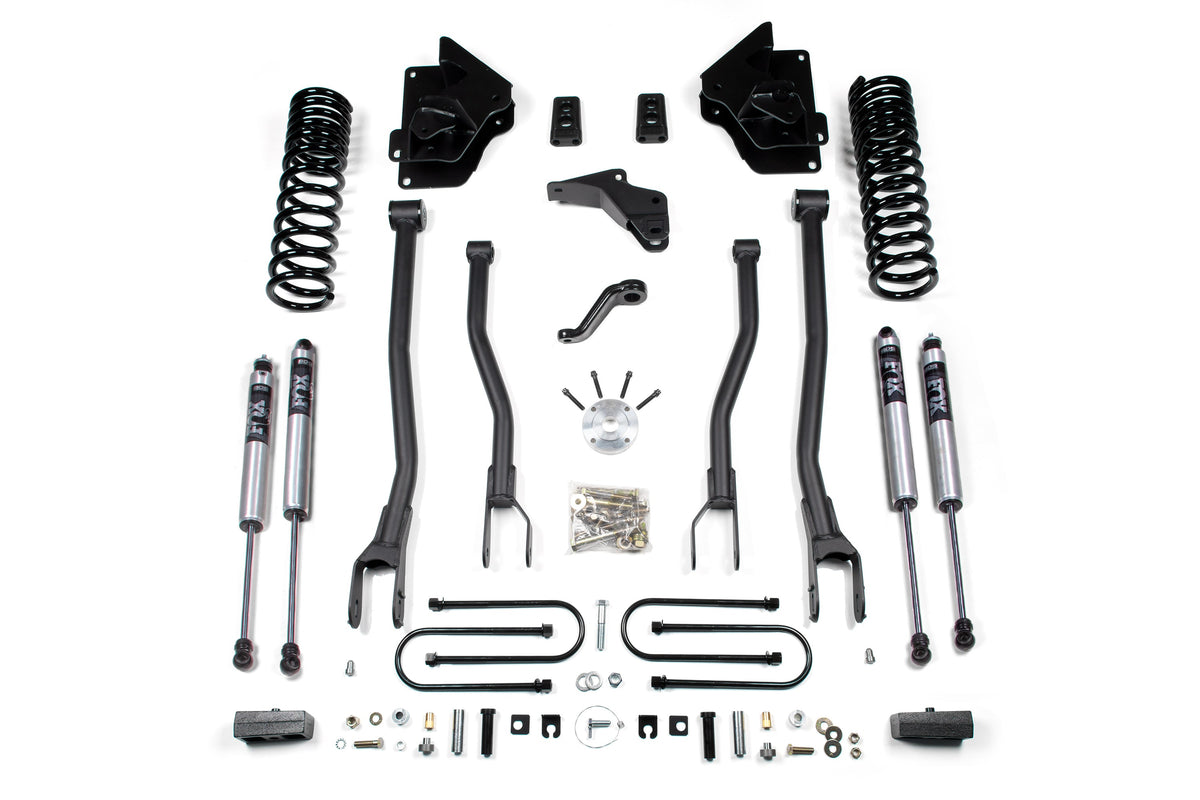

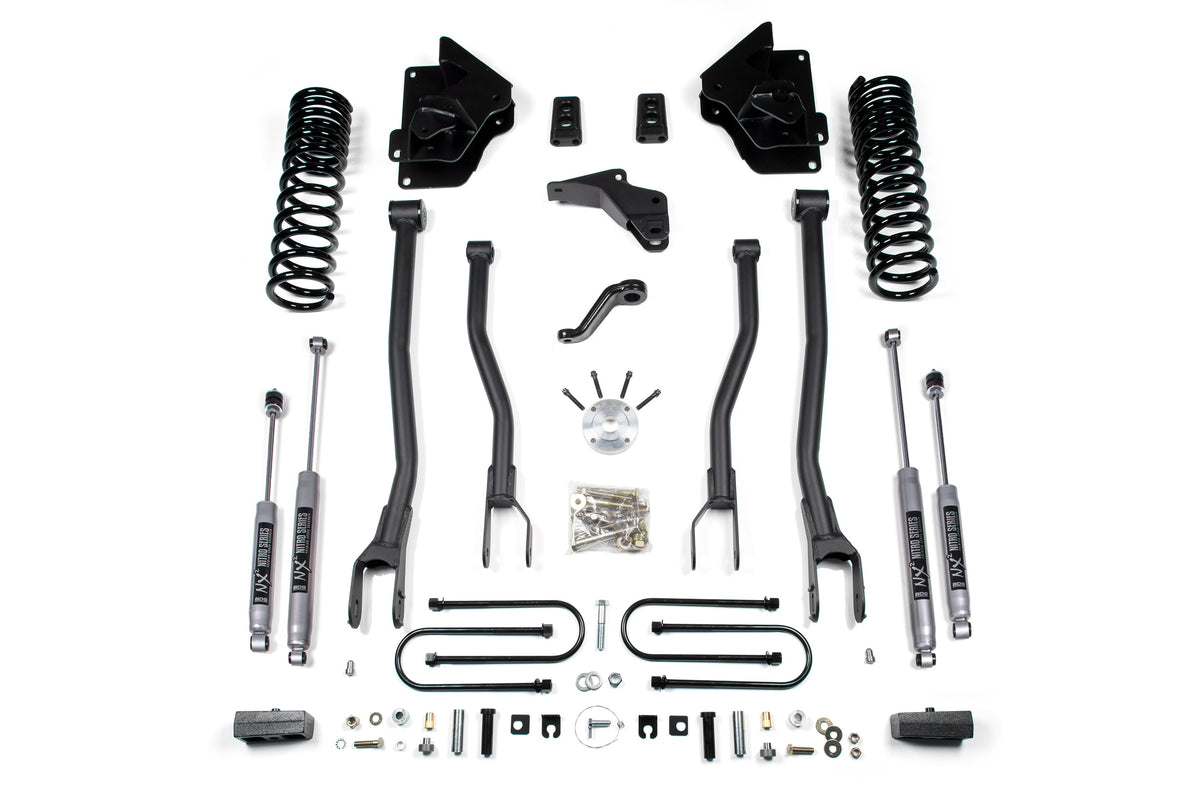

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option 3 Inch Block Kit
FOX 2.5 Performance Elite Series
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|
| 3 Inch Block Kit – FOX 2.5 Performance Elite | BDS1613FPE | Yes | one BDS012317, 2013 Ram 3500 3 inch Rear Box w/4 inch axle one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas one FOX88326063, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust one FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5” Lift, Dual Speed Compression Adjust |
| 3 Inch Block Kit – FOX 2.0 Performance Series | BDS1613FS | Yes | one BDS012317, 2013 Ram 3500 3 inch Rear Box w/4 inch axle one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
| 3 Inch Block Kit – NX2 Nitro Series | BDS1613H | Yes | one BDS012317, 2013 Ram 3500 3 inch Rear Box w/4 inch axle one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
| 2 Inch Block Kit – FOX 2.0 Performance Series | BDS1777FS | Yes | one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4 one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
| 2 Inch Block Kit – NX2 Nitro Series | BDS1777H | Yes | one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4 one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2) one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2) one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
Fits:
Part #: BDS1613FPE, BDS1613FS, BDS1613H, BDS1777FS, BDS1777H
