Built to take abuse and ask for more, the BDS 4 inch 4-Link Lift Kit for RAM 3500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS 4-Link arms for better articulation and rugged strength to handle anything the trail throws at you.
Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers - giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets.
Looking to push harder? The optional FOX 2.0 hydraulic bump stops for the front are a must.
These add an extra layer of control when you’re hitting hard or landing heavy, soaking up big impacts and keeping things in check.
Whether you’re crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.
Details:
Specifications:
- Lift Height: 4.0 Inch
- Front Lift Height: 4.0 Inch
- Rear Lift Height: 2.0 Inch
- Drive: 4WD
- Fuel Type: Diesel
- Lift Type: 4-Link/Block
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |
| Rubber Bump Stop / 2 Inch Block Without Overload / 6 Bolt / FOX 2.5 Performance Elite |
BDS1670PES |
Yes |
BDS012215, BDS012433, BDS012434, BDS122331, BDS122432, BDS122624, FOX88326101, FOX88406518 |

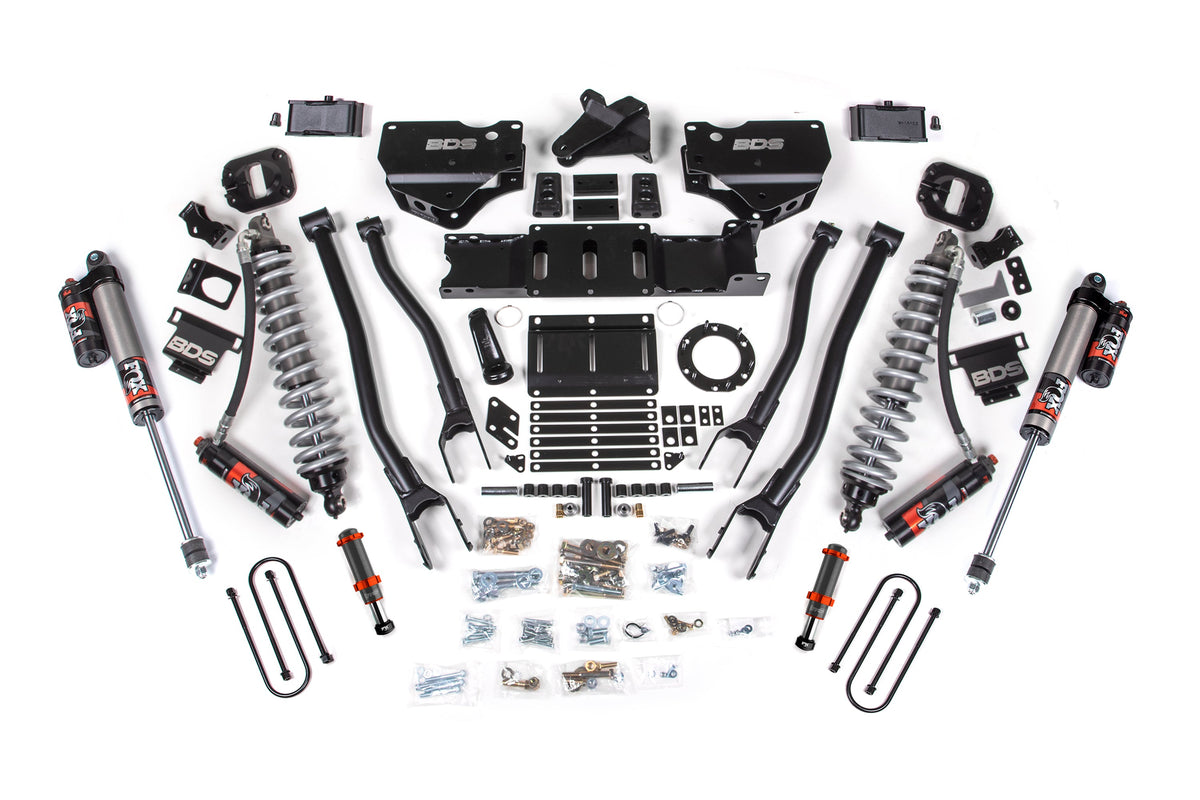

| FOX 2.0 Hydro Bump Stop / 2 Inch Block Without Overload / 6 Bolt / FOX 2.5 Performance Elite |
BDS1670PESB |
Yes |
BDS012215, BDS012433, BDS012434, BDS122331, BDS122624, FOX88302155, FOX88326101, FOX88406518 |
| Rubber Bump Stop / 2 Inch Block With Overload / 6 Bolt / FOX 2.5 Performance Elite |
BDS1671PES |
Yes |
BDS012216, BDS012433, BDS012434, BDS122331, BDS122432, BDS122624, FOX88326101, FOX88406518 |
| FOX 2.0 Hydro Bump Stop / 2 Inch Block With Overload / 6 Bolt / FOX 2.5 Performance Elite |
BDS1671PESB |
Yes |
BDS012216, BDS012433, BDS012434, BDS122331, BDS122624, FOX88302155, FOX88326101, FOX88406518 |

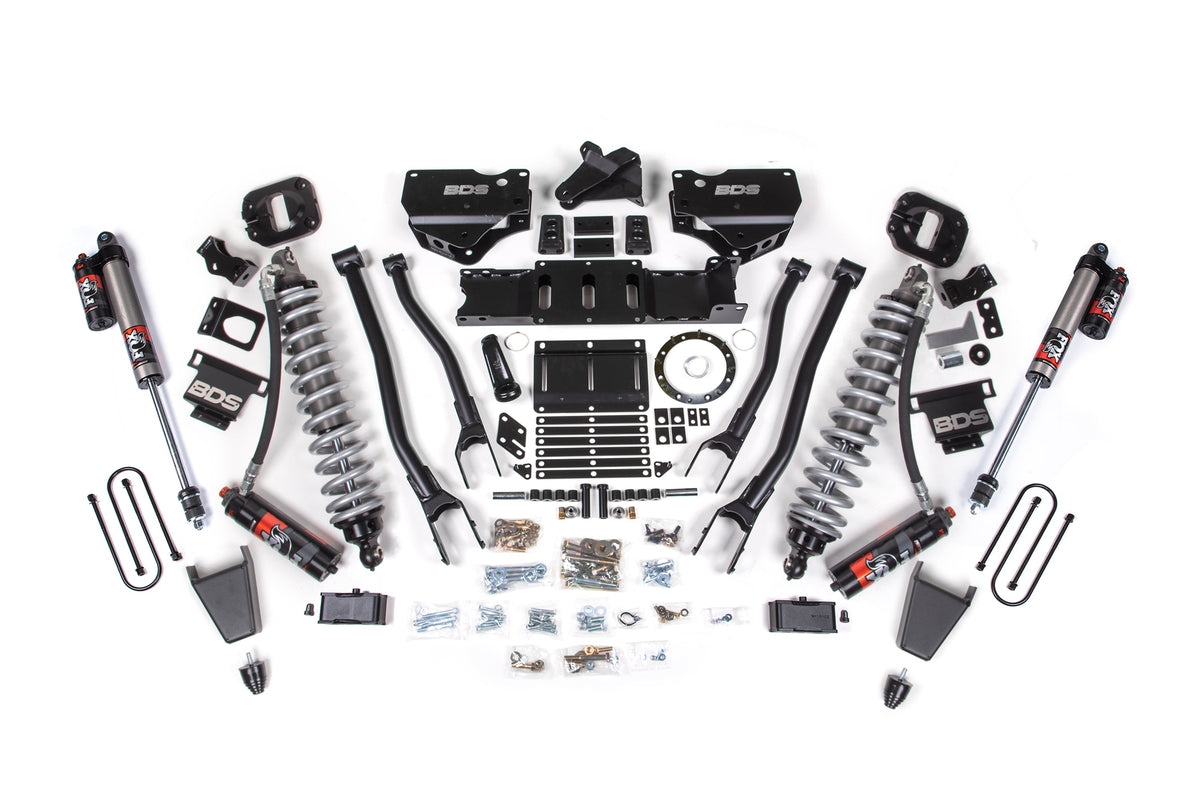

| Rubber Bump Stop / 2 Inch Block Without Overload / 8 Bolt / FOX 2.5 Performance Elite |
BDS1672PES |
Yes |
BDS012215, BDS012433, BDS012434, BDS122331, BDS122421, BDS122432, FOX88326101, FOX88406518 |

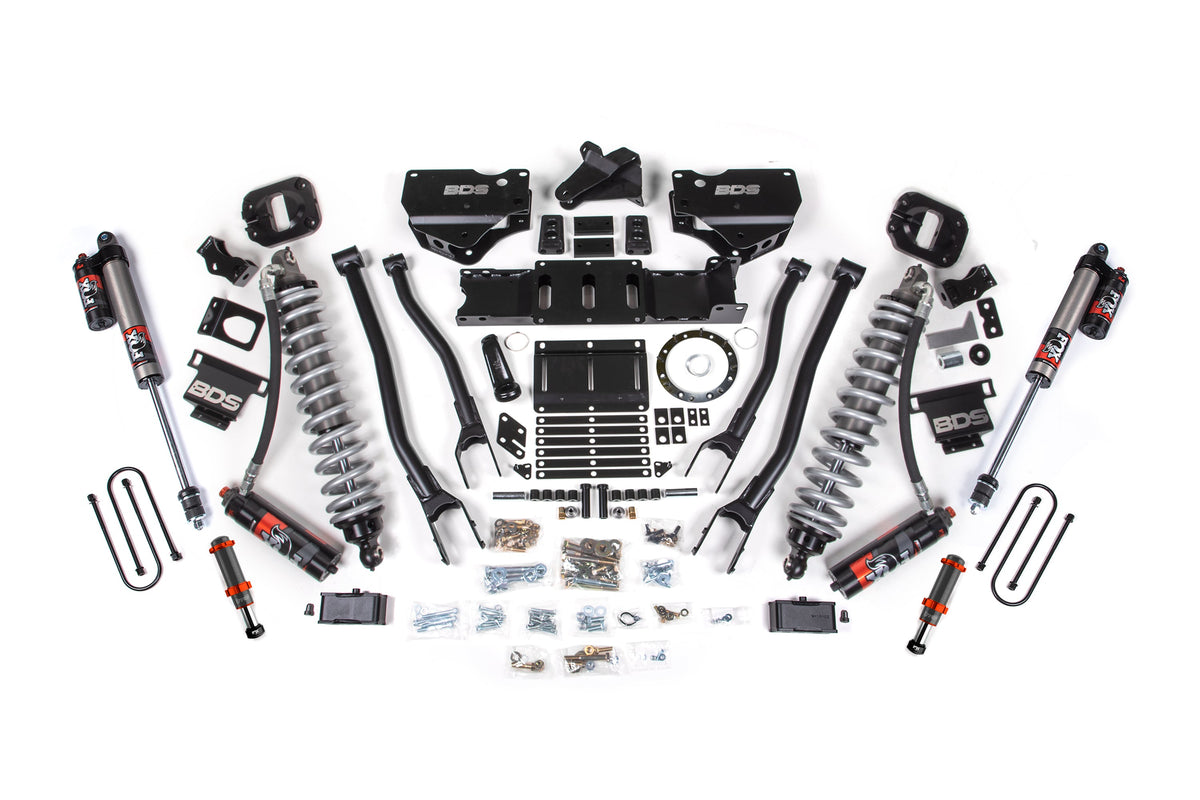

| FOX 2.0 Hydro Bump Stop / 2 Inch Block Without Overload / 8 Bolt / FOX 2.5 Performance Elite |
BDS1672PESB |
Yes |
BDS012215, BDS012433, BDS012434, BDS122331, BDS122421, FOX88302155, FOX88326101, FOX88406518 |
| Rubber Bump Stop / 2 Inch Block With Overload / 8 Bolt / FOX 2.5 Performance Elite |
BDS1673PES |
Yes |
BDS012216, BDS012433, BDS012434, BDS122331, BDS122421, BDS122432, FOX88326101, FOX88406518 |
| FOX 2.0 Hydro Bump Stop / 2 Inch Block With Overload / 8 Bolt / FOX 2.5 Performance Elite |
BDS1673PESB |
Yes |
BDS012216, BDS012433, BDS012434, BDS122331, BDS122421, FOX88302155, FOX88326101, FOX88406518 |
Fits:
Part #: BDS1670PES, BDS1670PESB, BDS1671PES, BDS1671PESB, BDS1672PES, BDS1672PESB, BDS1673PES, BDS1673PESB
