BDS Suspension 4 Inch Lift Kit w/ 4-Link Extended Travel Ram 3500 2025-2027 4WD Gas

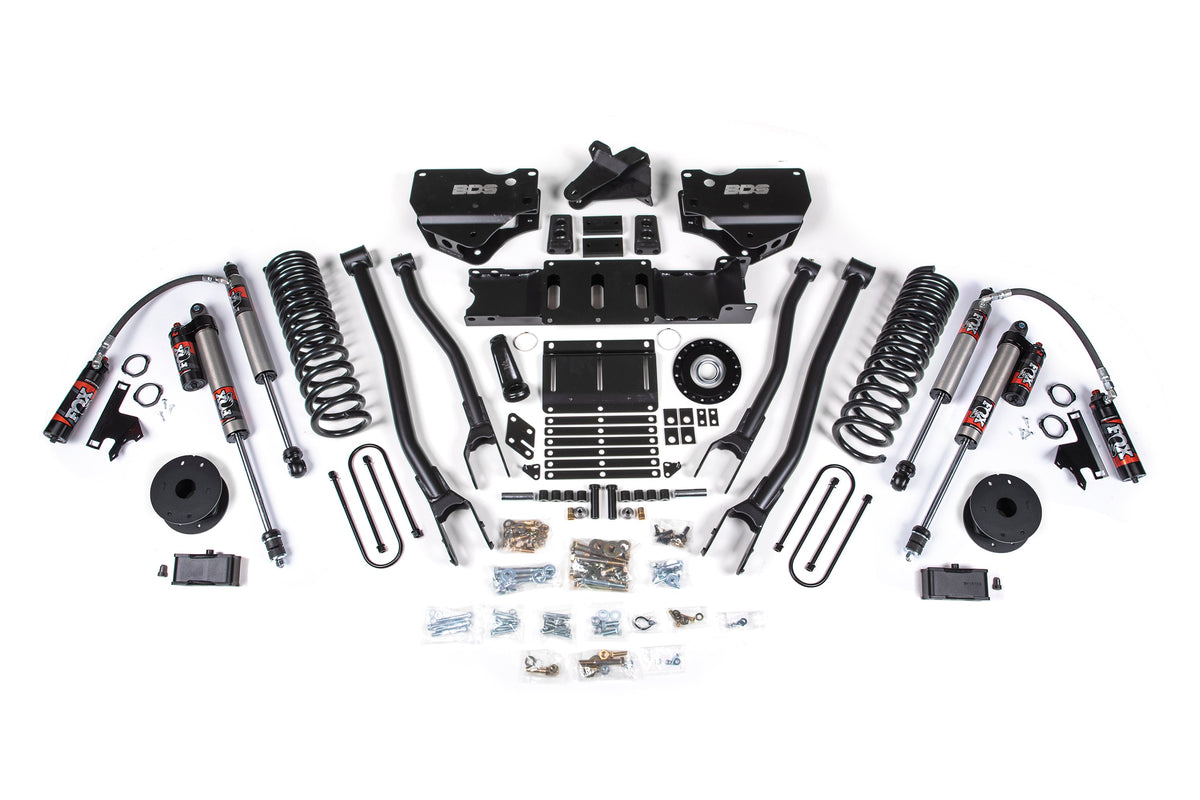

This BDS Suspension extended travel 4-inch 4-Link Lift Kit, designed specifically for Gas-powered Ram 3500 trucks, improves ride quality, handling, and off-road capability while maintaining excellent on-road comfort. With clearance for up to 37-inch tires, it delivers a more aggressive stance while preserving proper driveline geometry and everyday drivability.

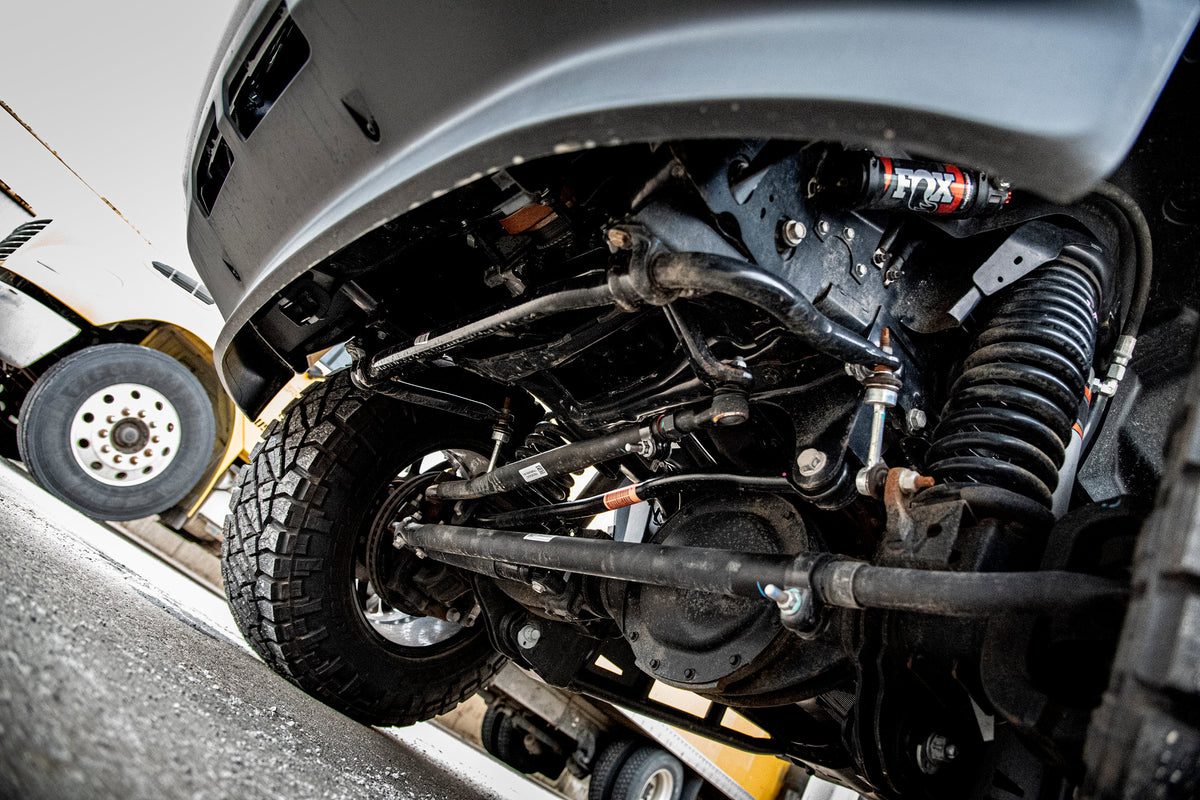

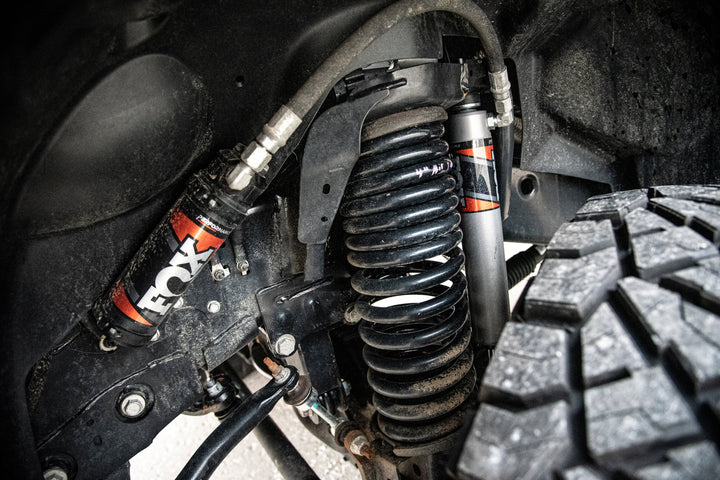

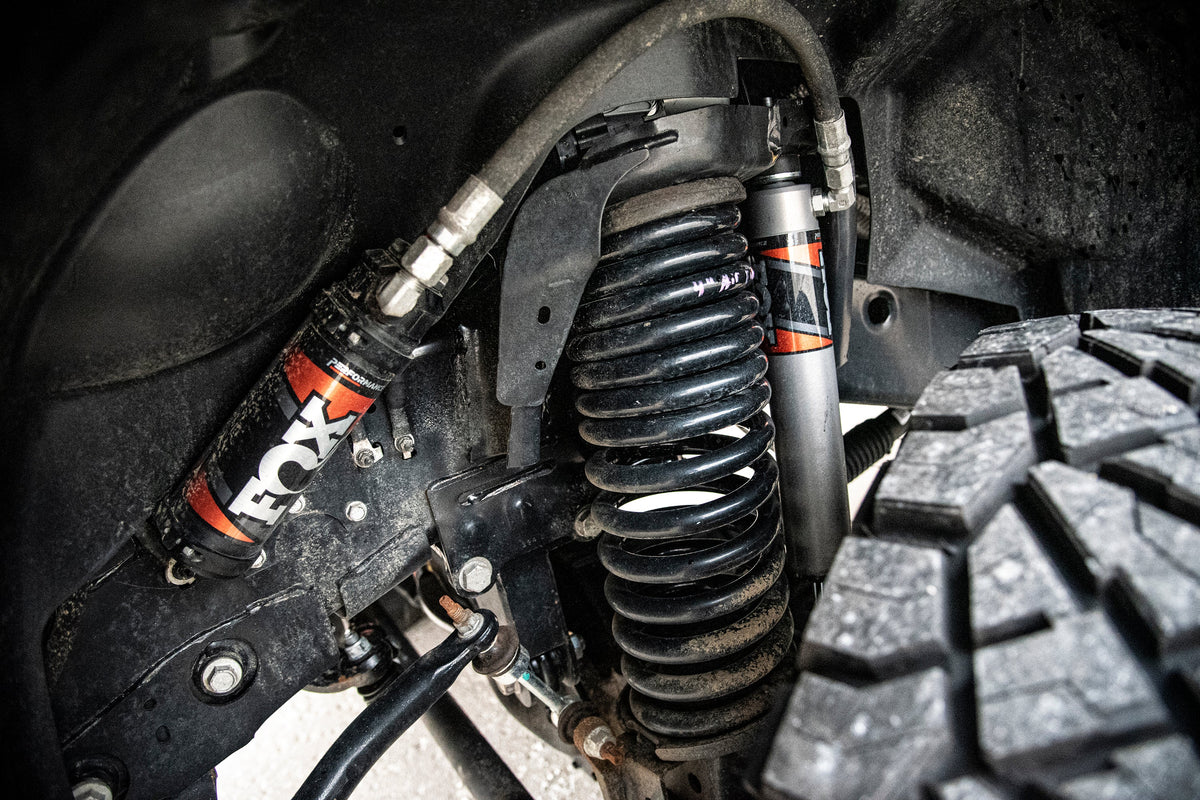

Up front, the kit features Pro-Ride coil springs engineered to support the weight of the Gas platform while providing a smooth, controlled ride. A heavy-duty 4-link front suspension system replaces the factory control arms to properly position the front axle while significantly reducing suspension bind through the full range of travel.

By allowing each link to articulate independently, the 4-link design maintains more consistent caster and pinion angles, improving straight-line stability, steering return-to-center, braking control, and overall ride quality both on and off the road. The reinforced link construction delivers exceptional strength and long-term durability for demanding on-road use, towing, and off-road conditions.

A heavy-duty track bar bracket is included to properly center the front axle and maintain precise steering geometry. Also included is a brand-new 10-bolt transfer case indexing ring engineered to clock the transfer case for optimized driveline angles and increased suspension droop. This indexing ring features an all-new, industry-leading seal developed specifically for motorsports applications, delivering superior sealing performance, reduced friction, and long-term durability under extreme heat and speed.

By properly clocking the transfer case, this system allows increased suspension travel and improved off-road capability compared to lift kits that do not re-index the transfer case. Additional components include sway bar links, brake line brackets, and premium shock absorbers matched to your selected configuration.

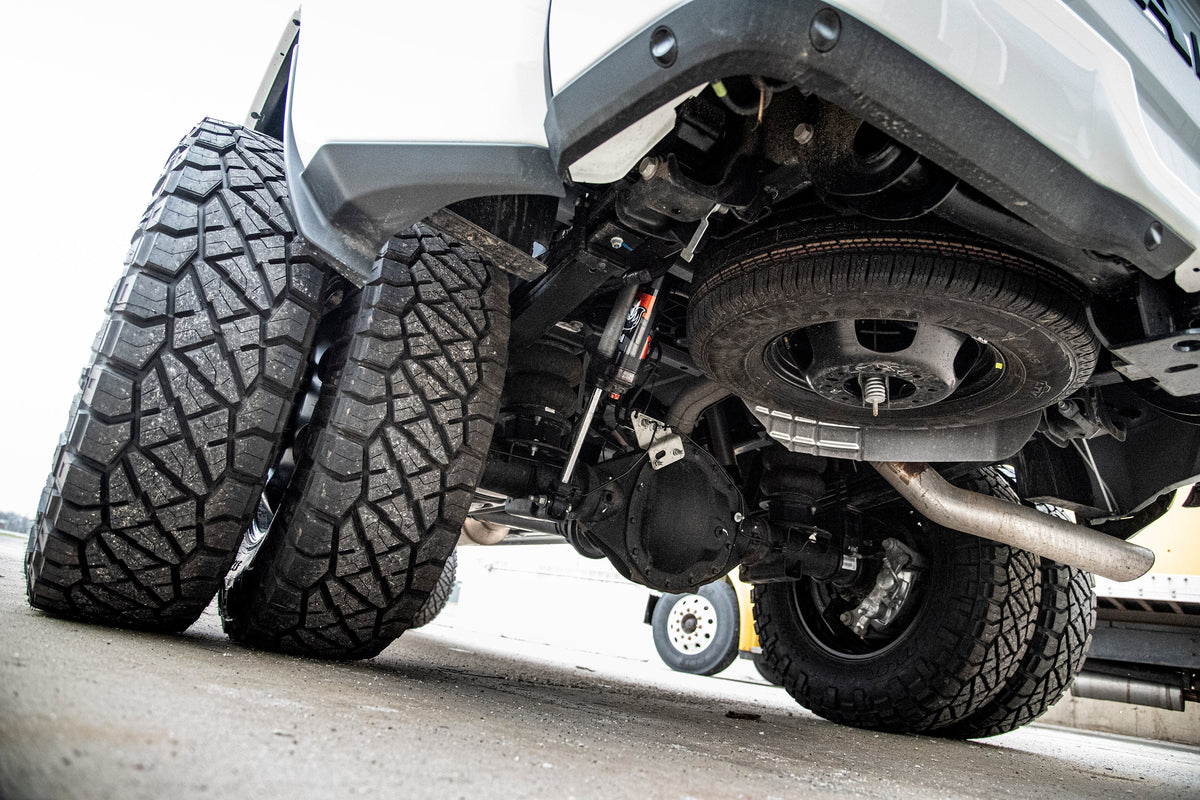

In the rear, lift is achieved using a high-strength fabricated lift block with longer U-bolts to ensure a secure and reliable installation. Matching rear shocks are included to maintain balanced ride quality and consistent performance from front to rear.

Shock options allow you to fine-tune ride quality and performance to match your driving style. BDS NX2 Nitro shocks provide a comfortable, well-controlled ride for daily driving and light off-road use. FOX 2.0 Performance Series IFP shocks feature aluminum construction and internal floating piston technology for consistent, fade-free performance.

FOX 2.5 Performance Series IFP shocks increase oil capacity and cooling for enhanced damping control in more aggressive terrain. At the top level, FOX 2.5 Performance Elite Series shocks with Dual Speed Compression (DSC) adjusters deliver race-inspired performance and tunability, allowing independent adjustment of low- and high-speed compression for maximum control and versatility.

Built with BDS Suspension's uncompromising commitment to strength, ride quality, and long-term reliability, this 4-inch 4-link lift kit is the ideal upgrade for Ram 3500 owners seeking improved handling, corrected suspension geometry, increased suspension travel, and confidence-inspiring performance both on and off the road.Features and Benefits:

Recommended Tires and Wheels:

Shock Option:NX2 Nitro Series:

FOX 2.0 Performance Series:

FOX 2.5 Performance Elite Series:

FOX 2.5 Performance Series HTO:

Details:

Features:

• Extended travel shocks with transfer case indexing ring.
• 4-Link Front suspension for consistant caster control throughout travel.
• Front high strength dual rate coil springs for a great ride on any terrain
• Forged front adjustable track bar allows you to re-center axle
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 or upgrade to Fox shocks to suit your needs.
• (Trimming may be required)
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.

Specifications:

• Lift Height: 4.0 Inch
• Drive: 4WD
• Fuel Type: Gas
• Lift Type: Spring
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 2025-2026 Ram 3500

Part #: BDS2160FPE, BDS2160FS, BDS2160H, BDS2160PS, BDS2161FPE, BDS2161FS, BDS2161H, BDS2161PS, BDS2162FPE, BDS2162FS, BDS2162H, BDS2162PS, BDS2163FPE, BDS2163FS, BDS2163H, BDS2163PS, BDS2164FPE, BDS2164FS, BDS2164H, BDS2164PS
