BDS Suspension 4 Inch Lift Kit Ram 3500 2013-2018 4WD Gas
-
Free shipping on orders over $100
-
Secure payments
- Available
Improve the ride and style of your 2013-2018 RAM 3500 gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option 3 Inch Block Kit
FOX 2.0 Performance Series
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|

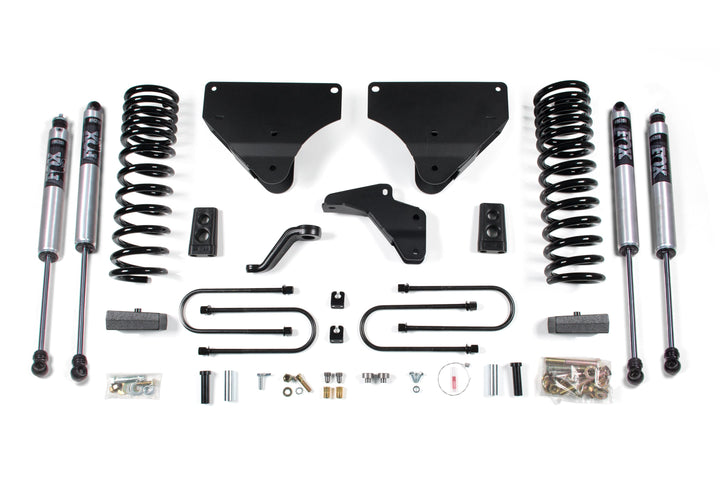

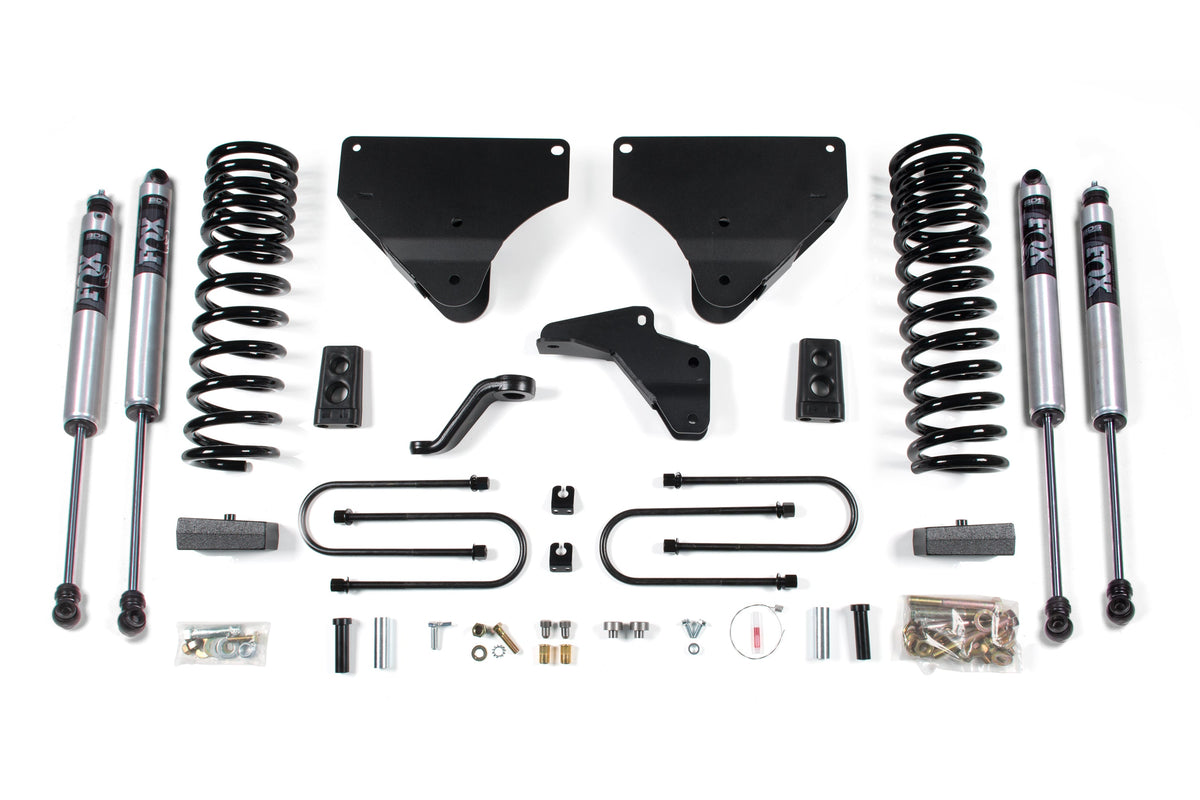

| 3 Inch Block Kit / FOX 2.0 Performance Series | BDS1612FS | Yes | one BDS012317, 2013 Ram 3500 3 inch Rear Box w/4 inch axle one BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |

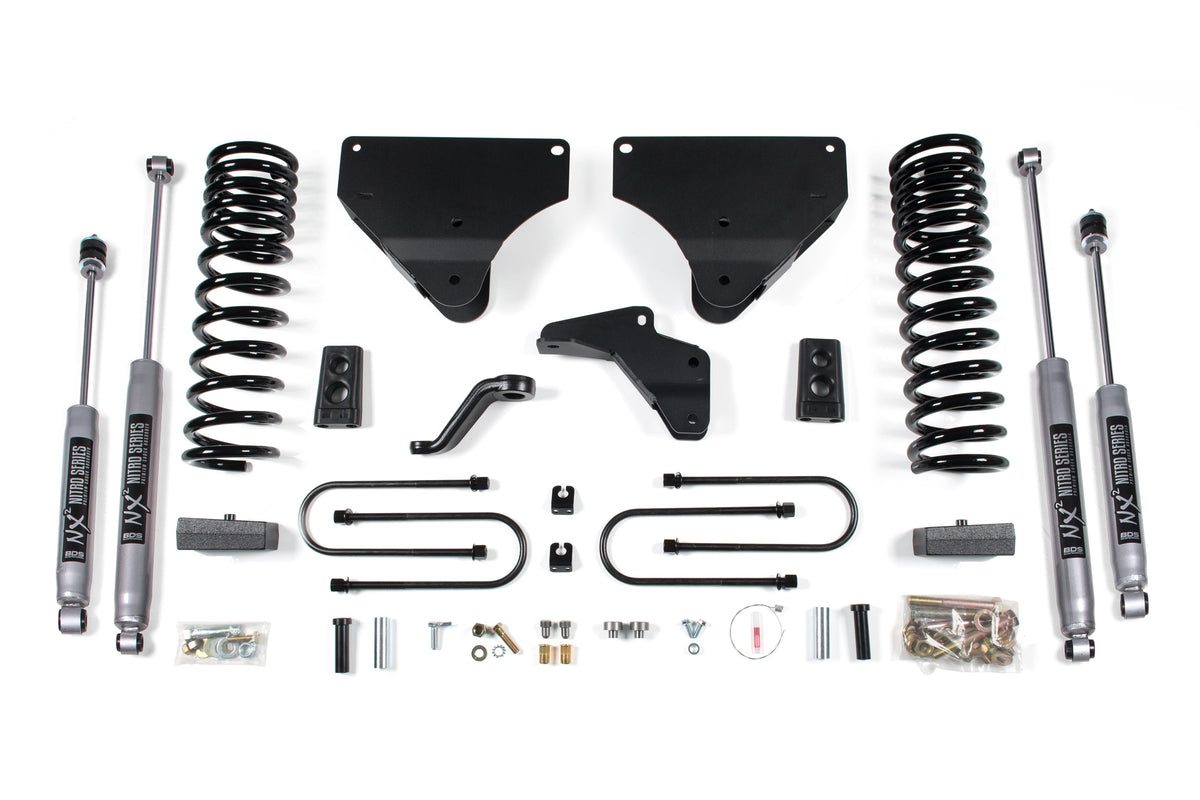

| 3 Inch Block Kit / NX2 Nitro Series | BDS1612H | Yes | one BDS012317, 2013 Ram 3500 3 inch Rear Box w/4 inch axle one BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
| 2 Inch Block Kit / FOX 2.0 Performance Series | BDS1779FS | Yes | one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4 one BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
| 2 Inch Block Kit / NX2 Nitro Series | BDS1779H | Yes | one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4 one BDS012401, 2013-18 Ram 2500/300 4 inch Front Box Kit one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
Fits:
Part #: BDS1612FS, BDS1612H, BDS1779FS, BDS1779H
