BDS Suspension 4 Inch Lift Kit Ram 2500 Power Wagon 2014-2018 4WD
-
Free shipping on orders over $100
-
Secure payments
- Available
Take your 2014-2018 RAM 2500 Power Wagon to the next level with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
Up front the lift kit includes specific Pro-Ride coil springs, heavy-duty radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
FOX 2.0 Performance Series
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|

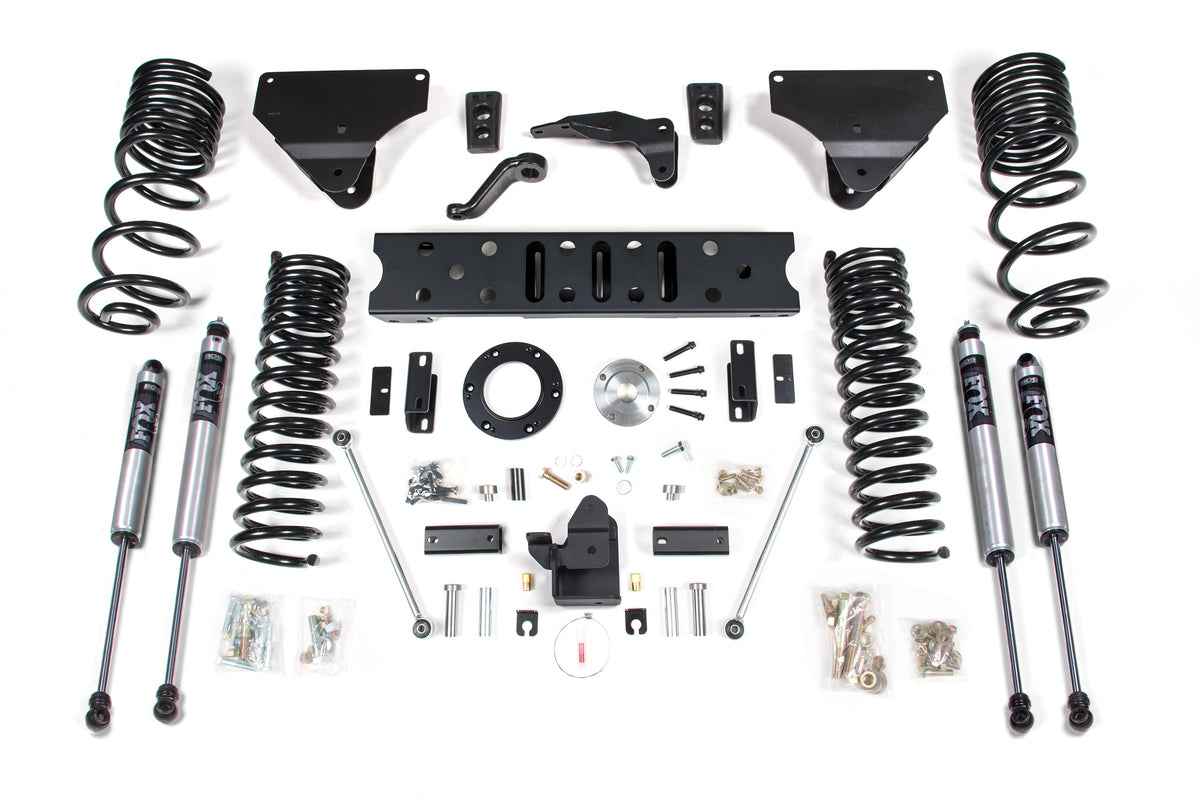

| FOX 2.0 Performance Series | BDS1636FS | Yes | one BDS012256, 14-up Ram Power Wagon Rear Box Kit one BDS012402, 14-up Ram Power Wagon Front Box Kit one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas one BDS122616, Ram T-Case Index - Gas - 6 Bolt two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 two FOX98224753, Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1 |

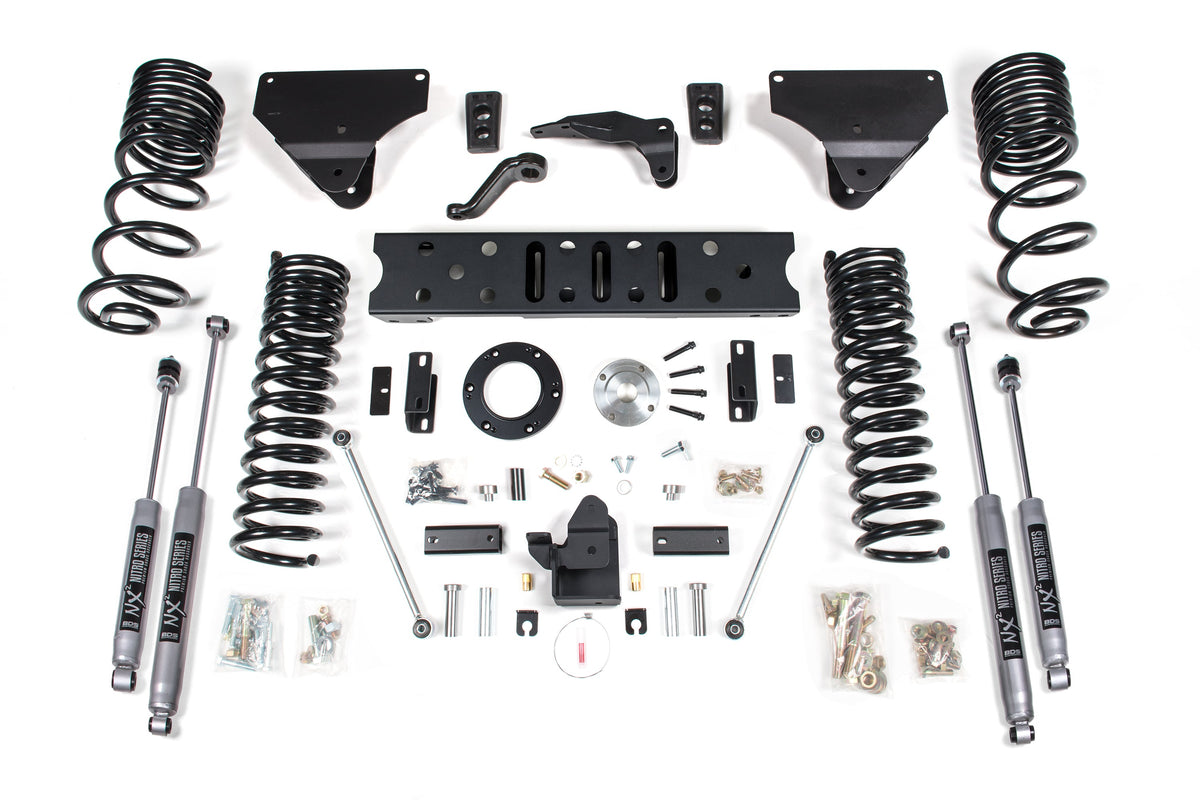

| NX2 Nitro Series | BDS1636H | Yes | one BDS012256, 14-up Ram Power Wagon Rear Box Kit one BDS012402, 14-up Ram Power Wagon Front Box Kit one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas one BDS122616, Ram T-Case Index - Gas - 6 Bolt two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 two BDS85757, Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1 |
Fits:
Part #: BDS1636FS, BDS1636H
