Built to outperform, BDS Suspension engineered a 4-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 Power Wagon that maximizes performance on and off road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.
Up front the lift kit Includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option Block Kit
Axle Diameter 3.5 Inch
The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.
FOX 2.0 Performance Series
Features:
- Tubular long arms reduce caster change and create more controlled feeling on and off road
- Heavy duty control arm brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Fitment Notes (from BDS):
- These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2 inch or 4 inch in diameter.
- 102009 rear brake line will not fit 2012 or newer models.
- Depending on the factory transmission mount, some 4 inch kits may require the transfer case indexing kit if a driveline vibration persists. See installation instructions for details.
Specifications:
- Lift Height: 4.0 Inch
- Front Lift Height: 4.0 Inch
- Rear Lift Height: 4.0 Inch
- Drive: 4WD
- Fuel Type: Gas
- Lift Type: Block
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |
| Block Kit – 3-1/2 Inch Axle / FOX 2.0 Performance Series |
BDS1771FS |
Yes |
one BDS012408, 03-up Dodge 3/4ton 4in Rear w/3-1/2 axle
one BDS012601, 09-10 Ram 6in Long Arm Box Kit
one BDS012801, Dodge Control Arm Mounts
one BDS012802, Dodge Control Arm Box Kit
one BDS032601, 03-12 Dodge Ram 2500(gas) 6in Coil Kit
one BDS122401, 05-13 Power Wagon Sway Bar Links
two FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 |
| Block Kit – 3-1/2 Inch Axle / NX2 Nitro Series |
BDS1771H |
Yes |
one BDS012408, 03-up Dodge 3/4ton 4in Rear w/3-1/2 axle
one BDS012601, 09-10 Ram 6in Long Arm Box Kit
one BDS012801, Dodge Control Arm Mounts
one BDS012802, Dodge Control Arm Box Kit
one BDS032601, 03-12 Dodge Ram 2500(gas) 6in Coil Kit
one BDS122401, 05-13 Power Wagon Sway Bar Links
two BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2
two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |

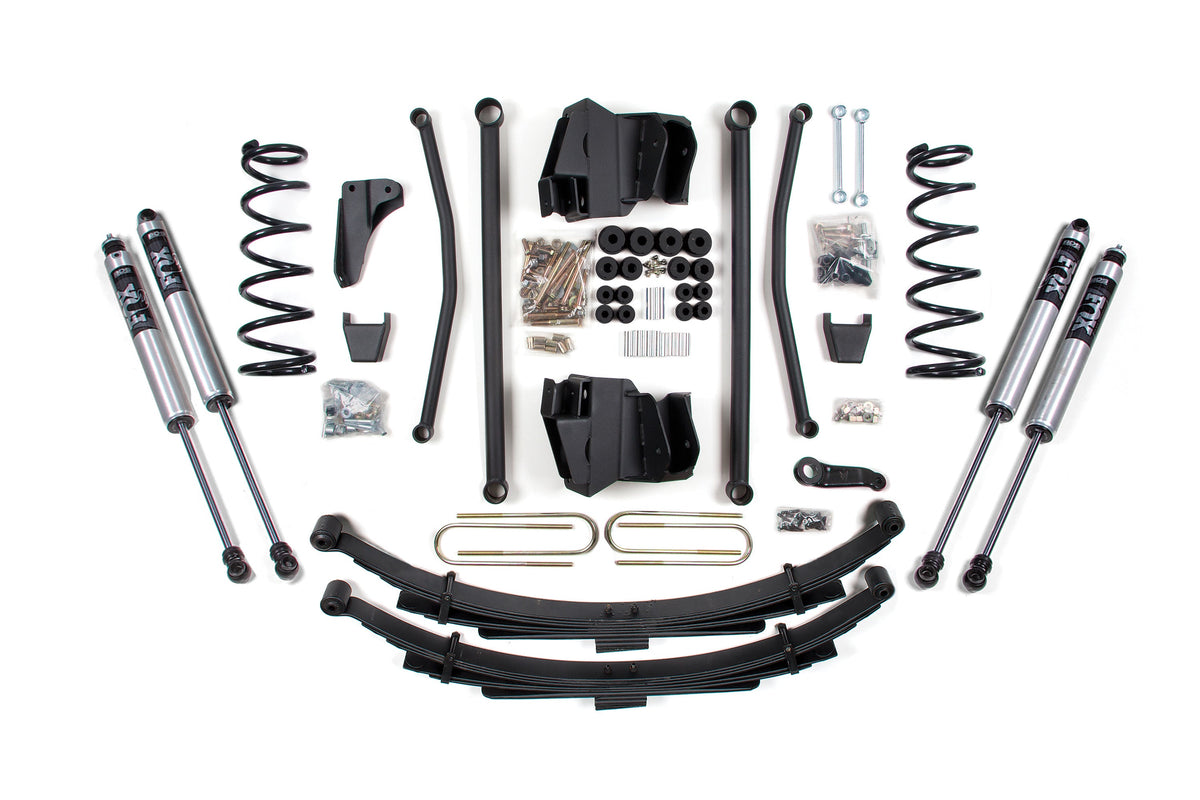

| Leaf Springs – 4 Inch Axle / FOX 2.0 Performance Series |
BDS1772FS |
Yes |
two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring
one BDS012601, 09-10 Ram 6in Long Arm Box Kit
one BDS012801, Dodge Control Arm Mounts
one BDS012802, Dodge Control Arm Box Kit
one BDS032601, 03-12 Dodge Ram 2500(gas) 6in Coil Kit
one BDS122401, 05-13 Power Wagon Sway Bar Links
two FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
four UBT4064, 9/16 x 3-1/2 x 12-1/2 Round U-bolt |

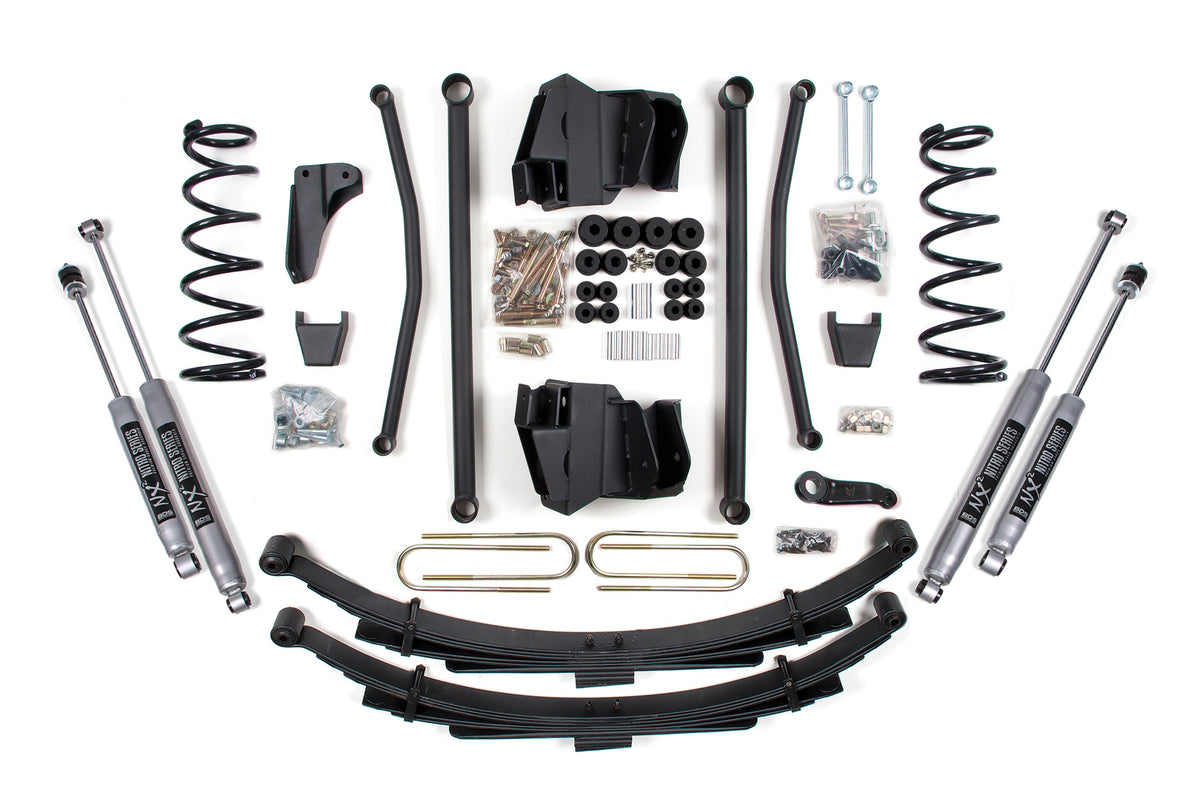

| Leaf Springs – 4 Inch Axle / NX2 Nitro Series |
BDS1772H |
Yes |
two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring
one BDS012601, 09-10 Ram 6in Long Arm Box Kit
one BDS012801, Dodge Control Arm Mounts
one BDS012802, Dodge Control Arm Box Kit
one BDS032601, 03-12 Dodge Ram 2500(gas) 6in Coil Kit
one BDS122401, 05-13 Power Wagon Sway Bar Links
two BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2
two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1
four UBT4064, 9/16 x 3-1/2 x 12-1/2 Round U-bolt |
| Block Kit – 4 Inch Axle / FOX 2.0 Performance Series |
BDS665FS |
Yes |
BDS012405, BDS012601, BDS012801, BDS012802, BDS032601, BDS122401, FOX98224751 (x2), FOX98224761 (x2) |
| Block Kit – 4 Inch Axle / NX2 Nitro Series |
BDS665H |
Yes |
BDS012405, BDS012601, BDS012801, BDS012802, BDS032601, BDS122401, BDS85751 (x2), BDS85761 (x2) |
Fits:
- 2009-2010 Dodge Ram 2500
- 2009 Dodge Ram 3500
- 2011-2013 Ram 2500
- 2011-2012 Ram 3500
Part #: BDS1771FS, BDS1771H, BDS1772FS, BDS1772H, BDS665FS, BDS665H
