BDS Suspension 4 Inch Lift Kit FOX 2.5 Performance Elite Coil-Over Chevy/GMC Avalanche, Suburban, Tahoe, or Yukon 1500 2007-2014 4WD

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance CrossmembersBDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.Heavy Duty Steering KnucklesBDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.Features and Benefits

Recommended Tires and Wheels

Rear Lift OptionBDS offers 2 inch rear coil spring spacers for a level or tail high stance with this kit!

Coil Spacers

Notes:

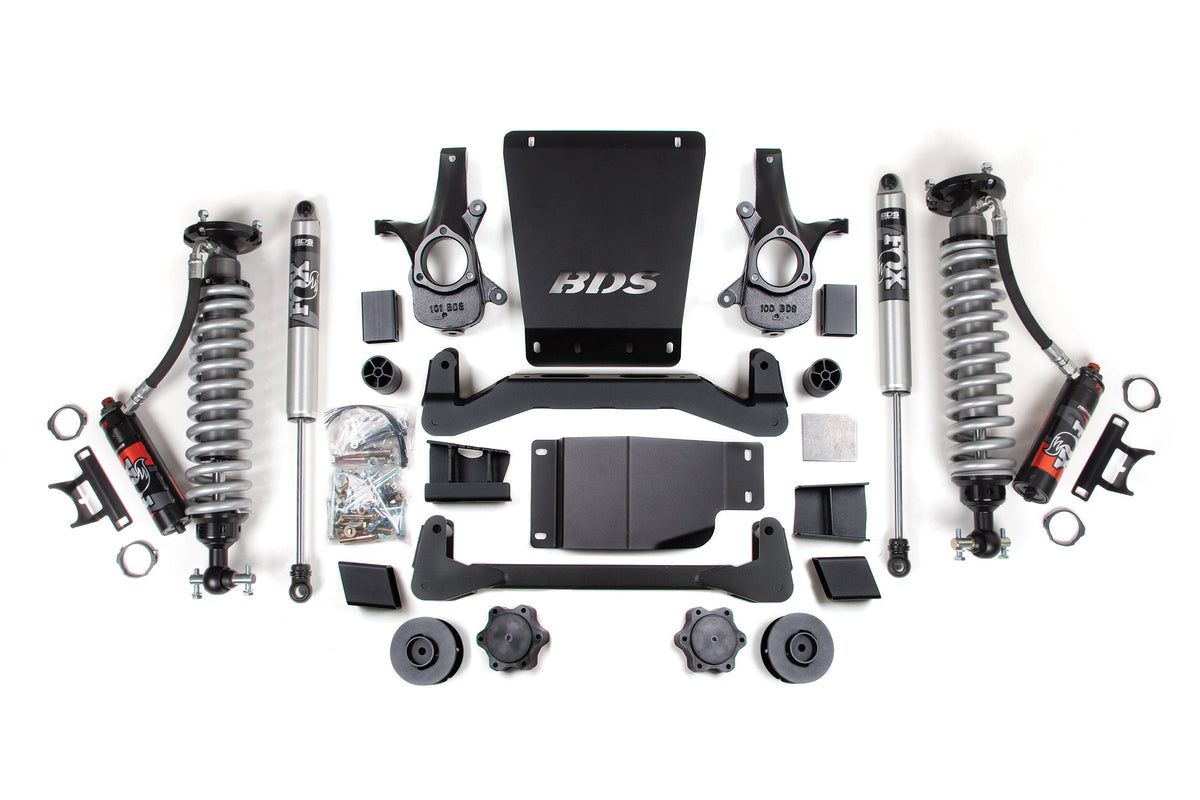

BDS021209 1 2007-2019 GM SUV - 2 inch Rear Box KitBDS021640 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (1of2)BDS021644 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (2of2)BDS121613 1 2007-2013 GM 1500, 2007-2014 GM SUV - Front Skid Plate Box KitFOX88406533 1 Kit: BDS 07-18 GM 1500, Front Coil over, 2.5 Truck PES, R/R, 4 inch, Lift, DSCFOX98224719 2 Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1

Features:

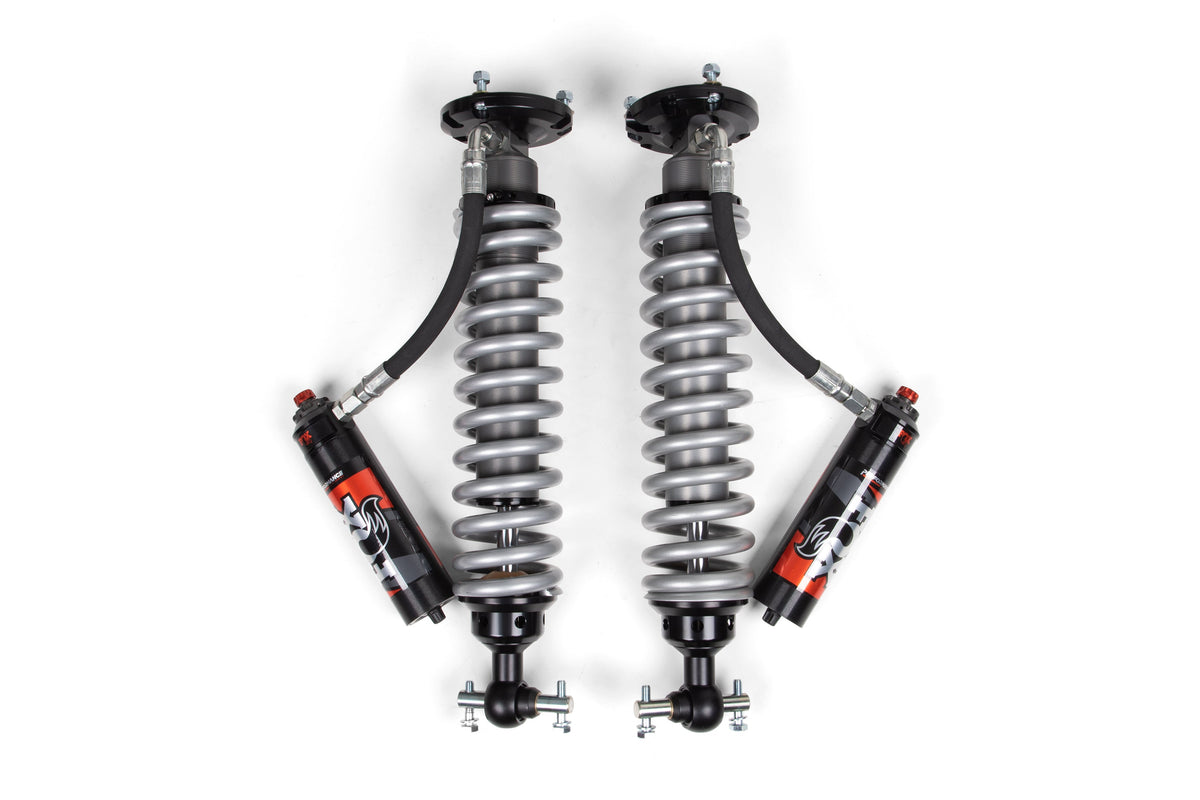

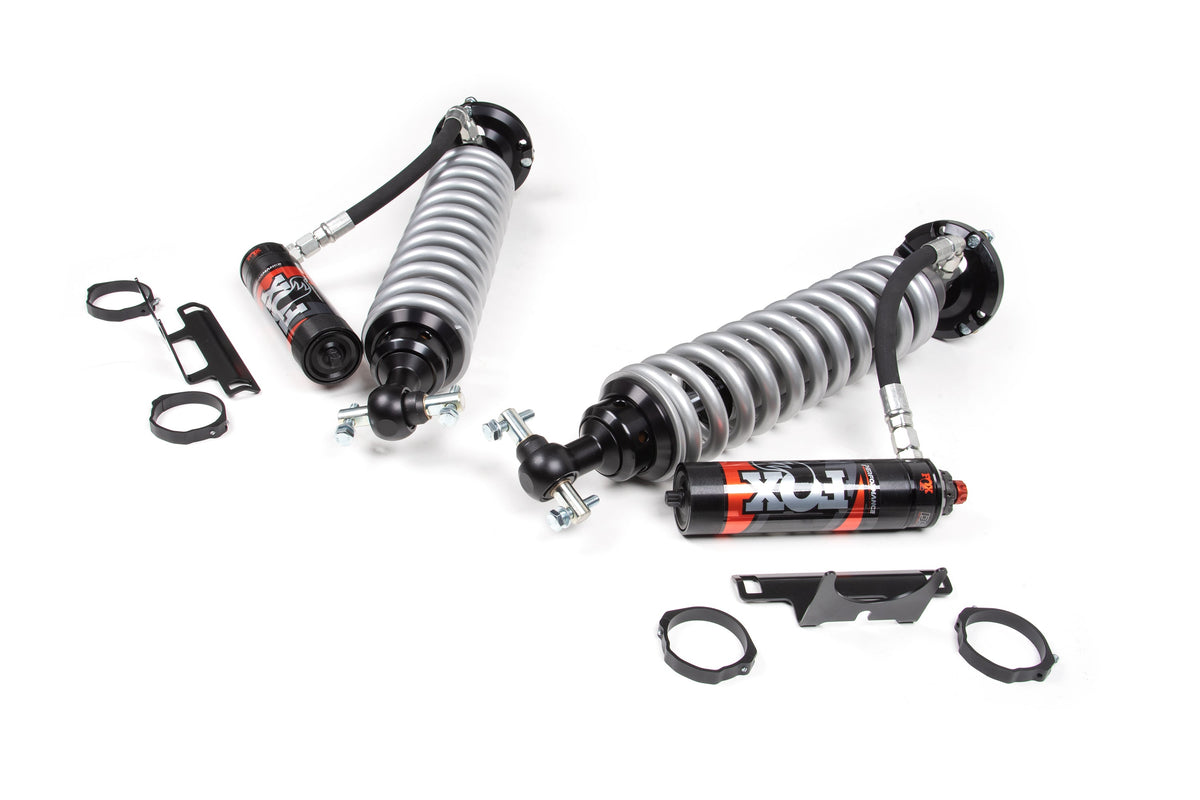

• Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.

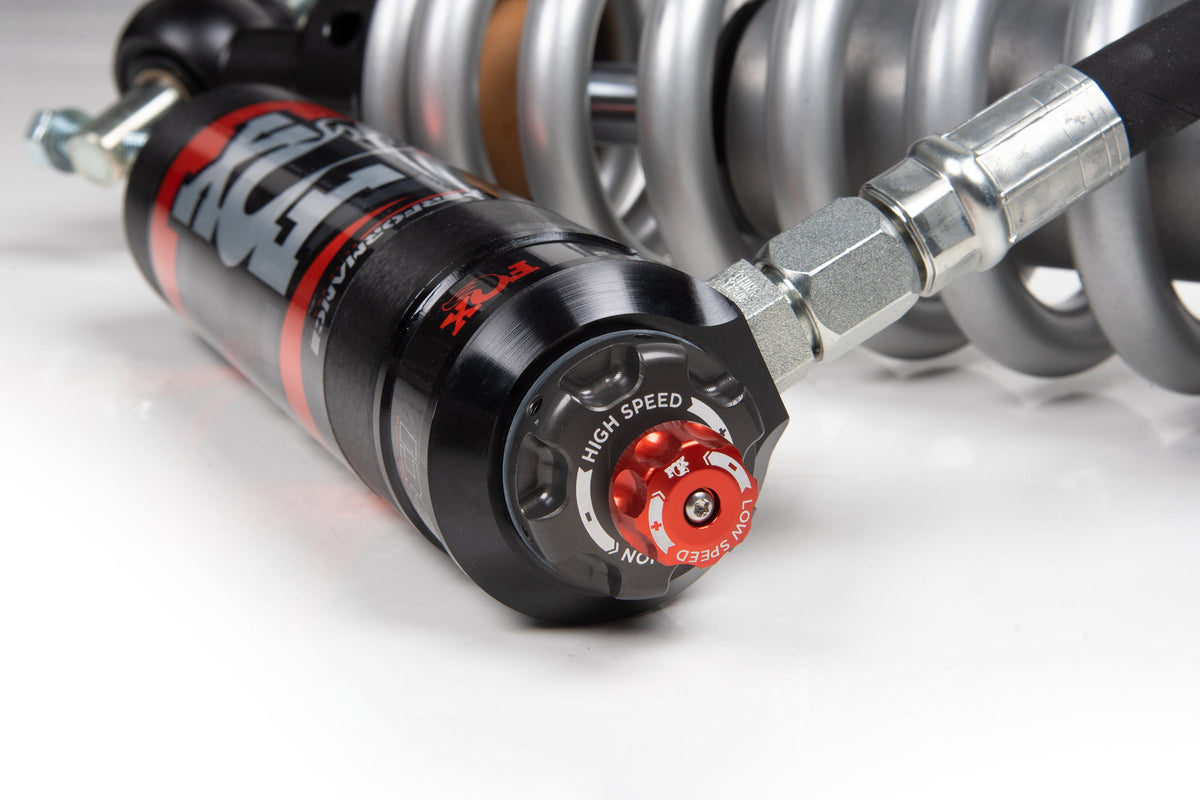

• The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX performance series IFP gas rear shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included
• (Trimming may be required)
• 32 x 11.5 with 17 x 8 and 4.5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
• Maintains factory ride quality
• Made with heavy-duty steel construction
• Powdercoat finish for long-lasting durability
• Will not work with auto-ride equipped vehicles. Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
• Minor frame bracket modification and welding are required.
• 20 inch wheels with 5 inch to 5-3/4 inch backspacing recommended to reduce trimming.
• Add BDS121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.

Specifications:

• Lift Height: 4.0 Inch
• Front Lift Height: 4.0 Inch
• Drive: 4WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 2007-2013 Chevrolet Avalanche
• 2015-2017 Chevrolet Suburban
• 2007-2014 Chevrolet Suburban 1500
• 2007-2017 Chevrolet Tahoe
• 2007-2017 GMC Yukon
• 2015-2017 GMC Yukon XL
• 2007-2014 GMC Yukon XL 1500

Part #: BDS188PSS, BDS900PSS
