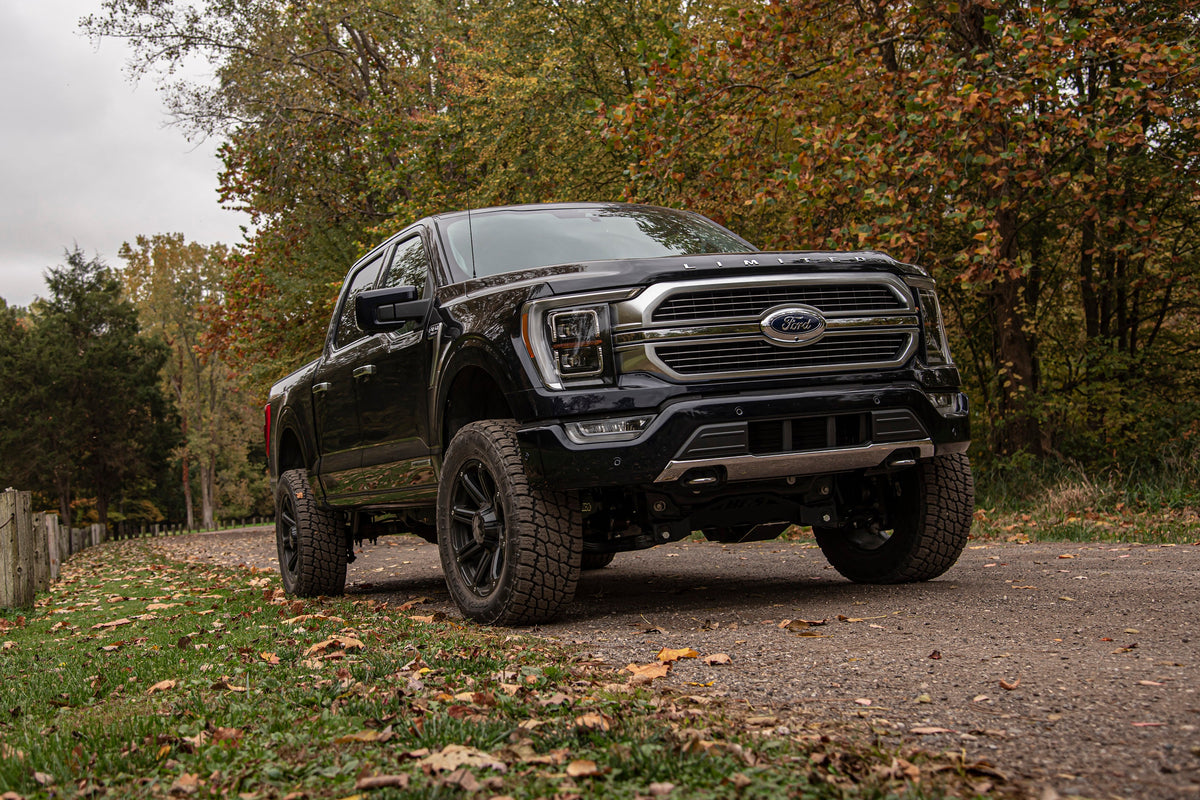

BDS Suspension 4 Inch Lift Kit FOX 2.0 Strut Ford F150 2021-2026 4WD

Increase the performance and capability of the 2021-2025 Ford F150 trucks with 4-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 4 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 35 inch Tires.

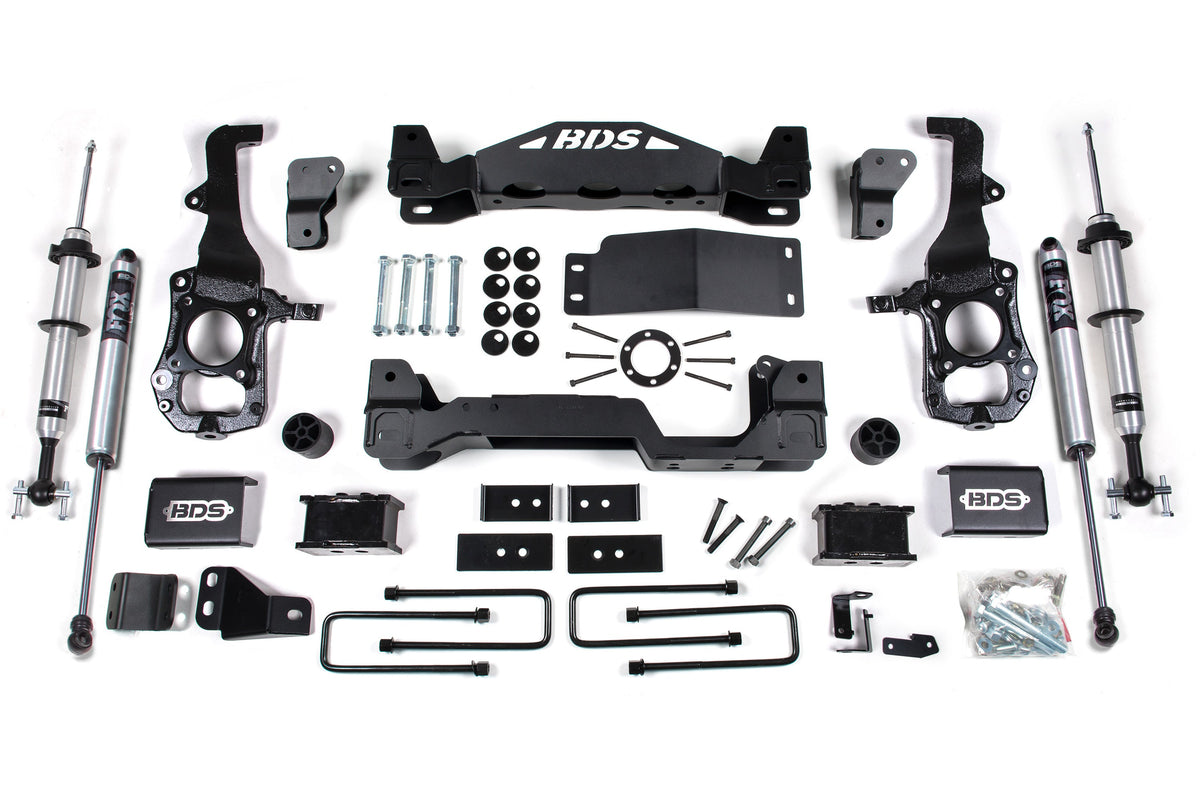

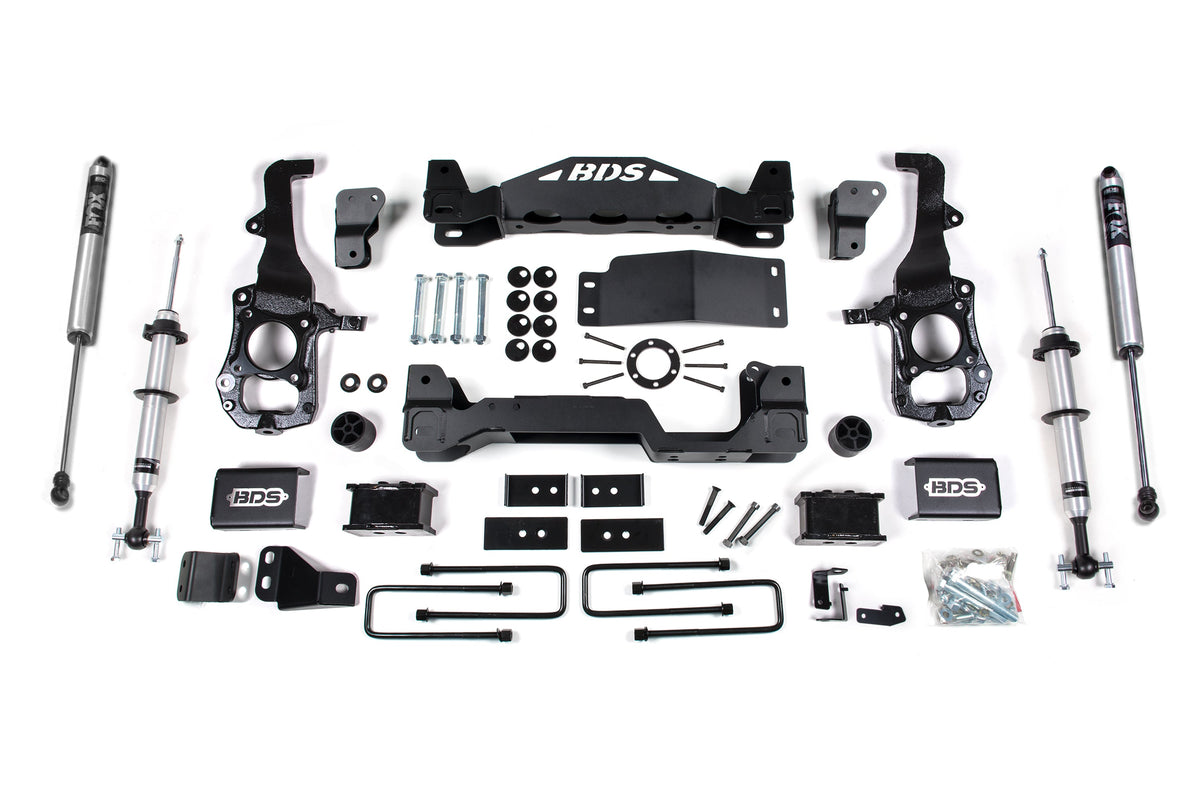

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection.

Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

FOX 2.0 Struts

These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate.

They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat-treated alloy shaft.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

2 Inch Block Kit

Features:

• FOX 2.0 Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Level to tail high appearance
• Tail low to level stance

Fitment Notes (from BDS):

• 18 inch or larger diameter wheels required. Stock 17 inch and 18 inch wheels cannot be re-installed. Stock 20 inch wheels can be used with up to a 305/60R20 Tire.
• 18 inch wheels with 5-5.5 inch backspacing should be test fit prior to mounting the Tire to ensure proper clearance to the steering knuckle/tie rod. 5.5 inch backspacing is highly recommended for Tire to frame crash bar clearance.
• Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
• Block kits replace factory 1-1/4 inch block. Stock block will not be reinstalled.
• Crash bars may require modification based on wheel and Tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
• Does NOT fit diesel models.
• Tremor models: only the 3-1/4 inch rear block is recommended. Larger blocks cause driveline vibration. Expected rake is 1 inchwith new block installed. Factory block provides slight tail low stance if desired
• Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
• This system has not been tested on models equipped with Ford BlueCruise.
• Will not work with models with CCD (Continuous Controlled Damping)
• Requires frame bracket modification.

Specifications:

• Lift Height: 4.0 Inch
• Front Lift Height: 4.0 Inch
• Rear Lift Height: 1 inch
• Drive: 4WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.5

Options & Part Numbers:

Fits:

• 2021-2025 Ford F-150

Part #: BDS1583FSR, BDS1902FSR
