BDS Suspension 4 Inch Lift Kit Ford F250/F350 Super Duty 2011-2016 4WD Diesel

Increase ground clearance on your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

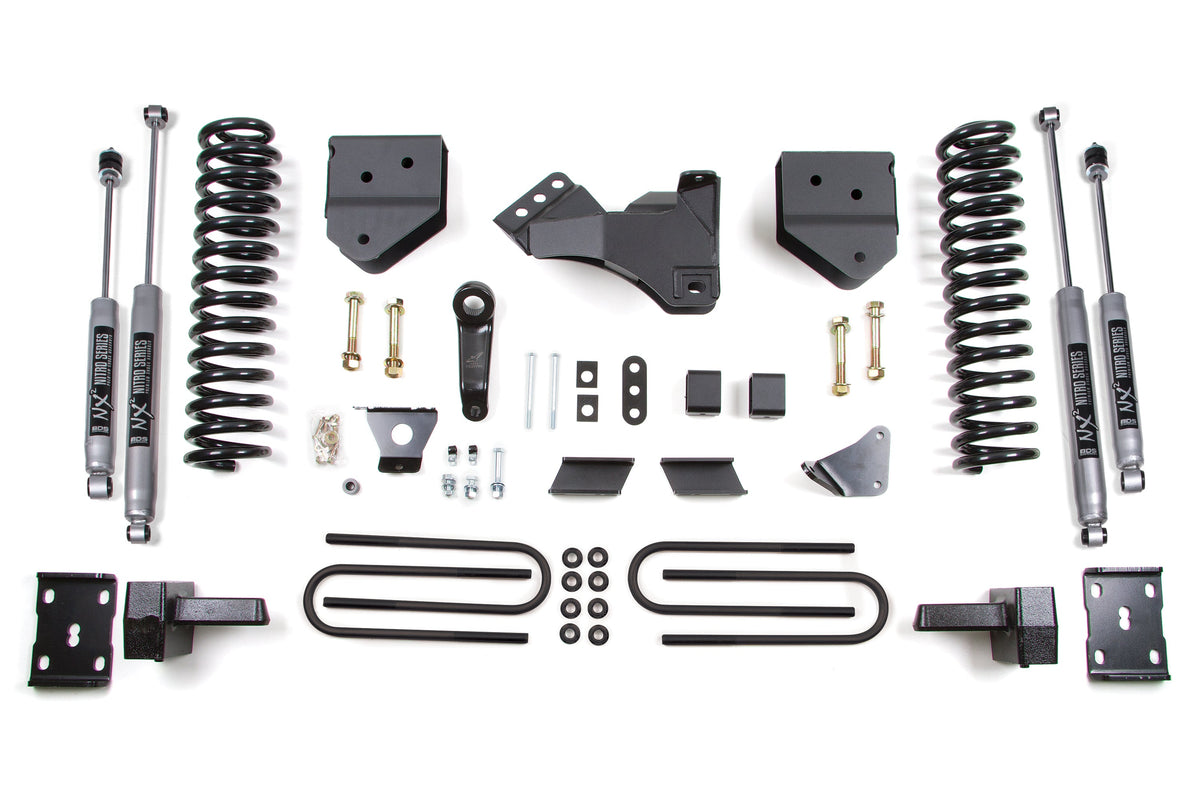

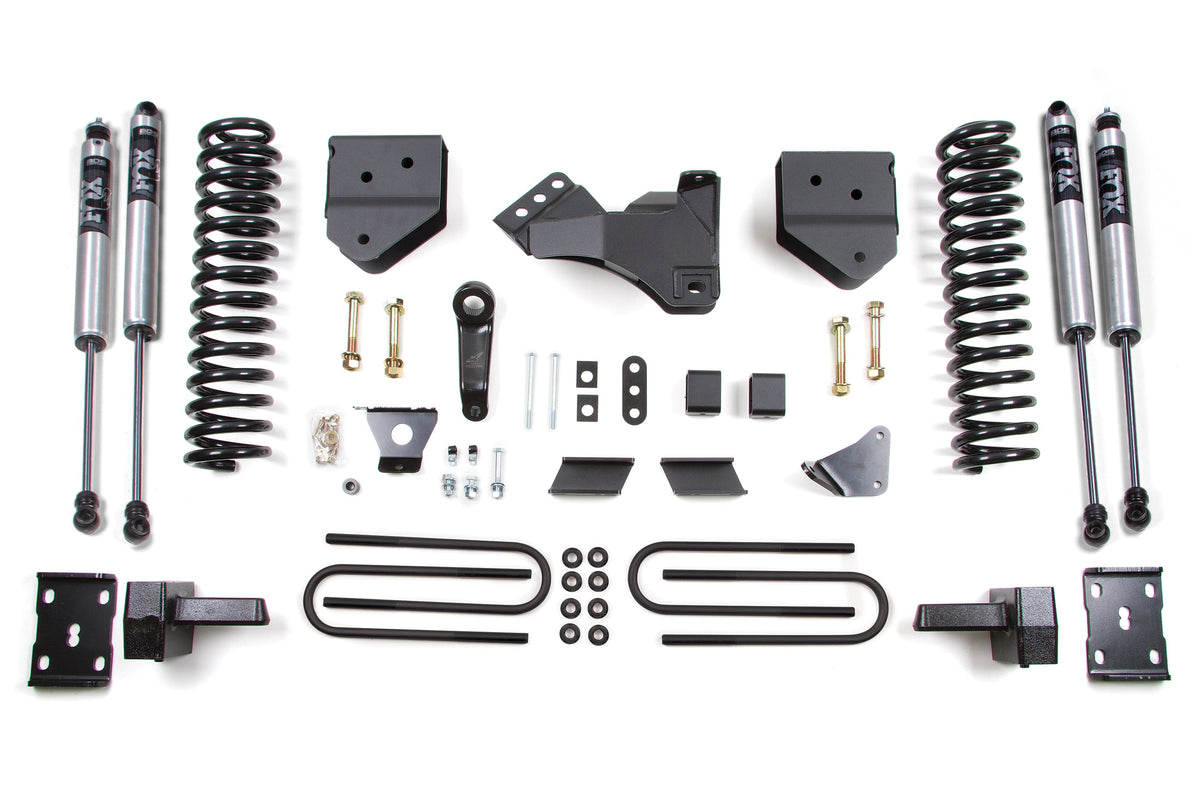

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering CorrectionTo optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

Easy, 100 percent Bolt-on installationPro-Ride dual rate coil springs provide a remarkable ride through any terrainHeavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.Track bar relocation bracket and pitman arm maintain proper steering angles for improved handlingSteel lift blocks with built-in bump stop provide level stance from front to rearStandard NX2 Nitro shocks with vehicle-specific valving for better controlUpgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-roadRecommended Tires & Wheels

Rear Lift OptionBlock Kit

Shock Option

FOX 2.0 Performance Series

Features:

• (Trimming may be required)
• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.
• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Steel lift blocks with built-in bump stop provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

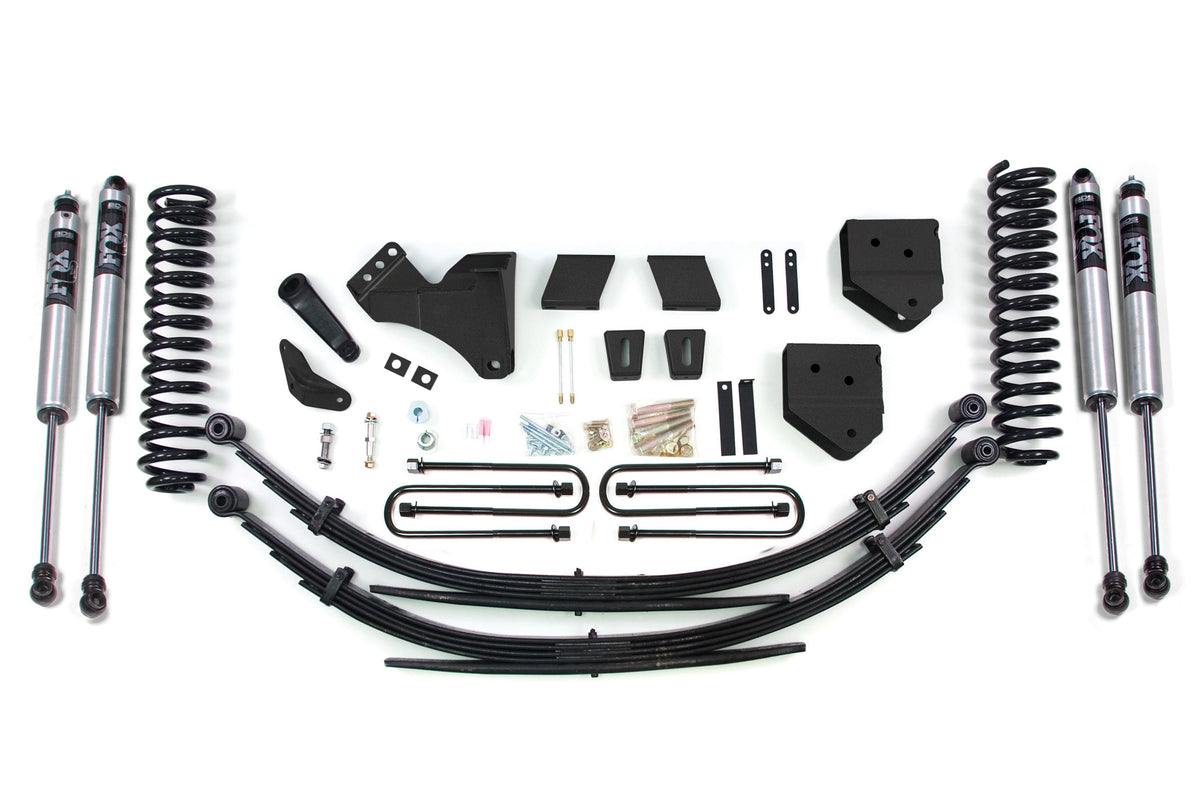

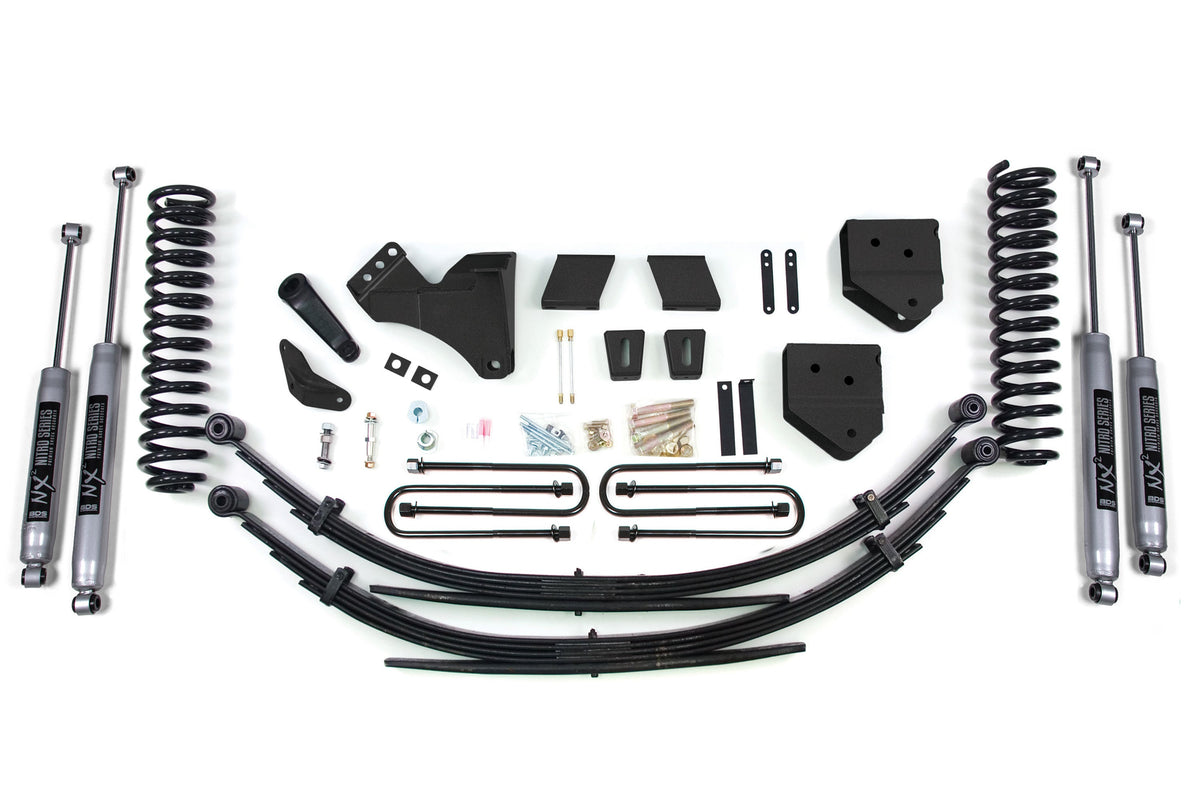

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Specifications:

• Lift Height: 4.0 Inch
• Front Lift Height: 4.0 Inch
• Rear Lift Height: 4.0 Inch
• Drive: 4WD
• Fuel Type: Diesel
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 2011-2016 Ford F-250 Super Duty
• 2011-2016 Ford F-350 Super Duty

Part #: BDS588FS, BDS588H, BDS592FS, BDS592H
