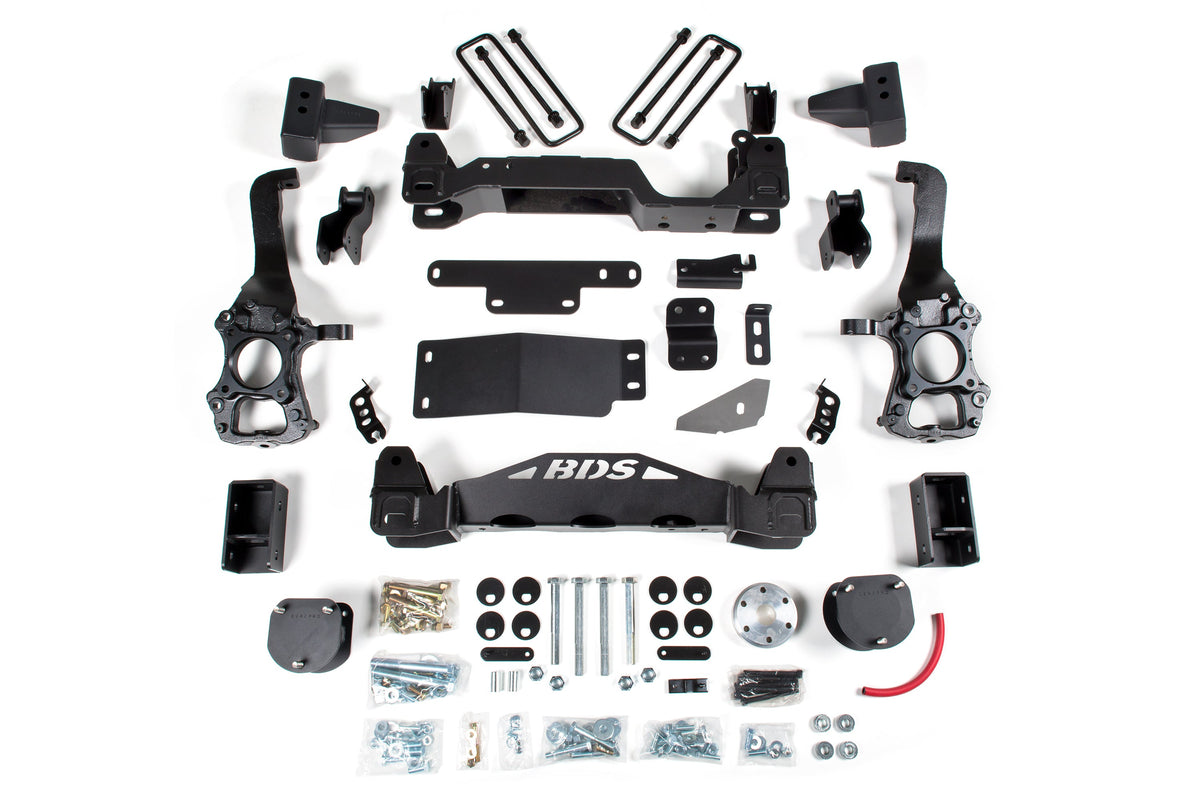

BDS Suspension 4 Inch Lift Kit Ford F150 Raptor 2010-2013 4WD

Easily upgrade to 37 inch Tires on your 2010-2013 Ford F150 Raptor 4WD truck with a 4-inch suspension lift kit by BDS Suspension. After months of engineering, BDS determined that the 4 inch lift height allows for the best use of the factory equipped FOX Shocks and maintain full range of suspension travel allotted by the factory suspension components.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection.

Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength lift blocks and longer u-bolts to lift and level the stance along with rear shock relocation brackets to maintain the FOX internal bypass rear shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features:

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Shock relocation brackets to maintain factory FOX Shocks

Fitment Notes (from BDS):

• Required frame bracket modification and welding
• Stock wheels cannot be installed
• 37x12.50 on 18x9 w/5 inch BS - check for proper tie rod end clearance
• FMVSS No.126 Compliant

Specifications:

• Lift Height: 4.0 Inch
• Front Lift Height: 4.0 Inch
• Rear Lift Height: 4.0 Inch
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 37 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 58-10 hrs

Options & Part Numbers:

Fits:

• 2010-2013 Ford F-150

Part #: BDS1511H
