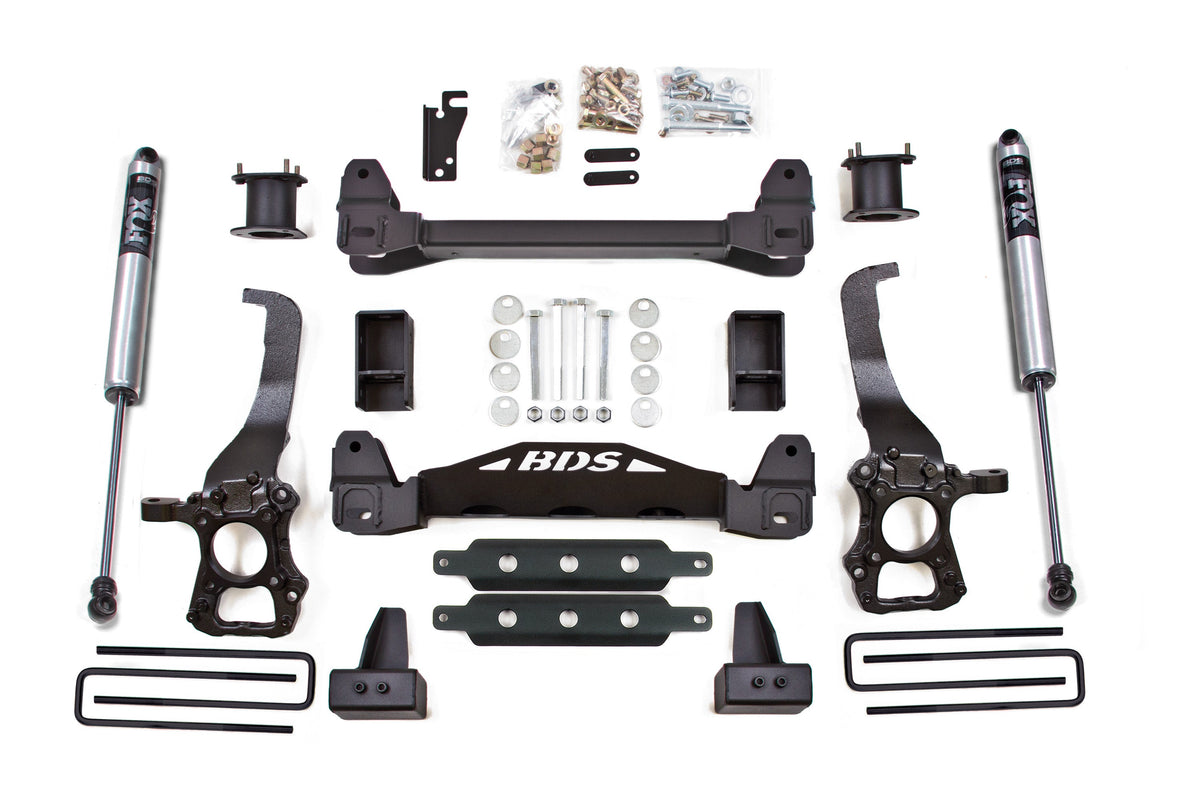

BDS Suspension 4 Inch Lift Kit Ford F150 2009-2013 2WD

Update the style and ride of your 2009-2013 Ford F150 2WD truck by installing a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, steel top mount strut spacer, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles.

These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Shock Option

FOX 2.0 Performance Series

Features:

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Fitment Notes (from BDS):

• 18 inch or larger diameter wheels required. Stock 17 inch & 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 Tires.
• E-brake bracket required for factory powersteps (123018)
• For a level to tail low appearance use #023415 with Kit#599H. Block kits replace factory 1-1/4 inch block.
• Early 2009 models may require brake assembly modification.
• Will not fit HD models (7 lug).
• Vehicles equipped with 2 piece rear driveshaft may require carrier bearing drop kit #122406
• This kit is FMVSS No.126 Compliant

Specifications:

• Lift Height: 4.0 Inch
• Front Lift Height: 4.0 Inch
• Rear Lift Height: 4.0 Inch
• Drive: 2WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.5

Options & Part Numbers:

Fits:

• 2009-2013 Ford F-150

Part #: BDS599FS, BDS599H
