Build your dream truck and take your Ford 1980-1983 F100 and 1980-1996 F150 4WD truck to new heights with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Pro-Ride Coil Springs
A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Rear Lift Options
Leaf Springs
Features:
- Easy, Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty steel drop brackets for proper suspension geometry
- Cast steel blocks provide level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.
- Add-a-leaf helps freshen up old worn-out factory leaf springs.
- Blocks are made from cast iron for max strength.
- Includes new center pins.
Fitment Notes (from BDS):
- Front end alignment required. Alignment cams may be required.
- 123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems between 1980 and 1996. In extremely rare cases, modification may be required.
- Extended lines required for all 4-6 inch lifts.
- Does not fit F150 models without power steering.
Specifications:
- Lift Height: 4.0 Inch
- Front Lift Height: 4.0 Inch
- Drive: 4WD
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |
| 2 Inch Leaf Springs |
BDS500H |
Yes |
two BDS003208, 73-96 Ford F150 2 Inch Rear Spring 3in wide
one BDS013001, 80-96 Ford F150 Front Box Kit
one BDS033401, 80-96 Ford F150/Bronco 4in Coil Kit
two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1
four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt |

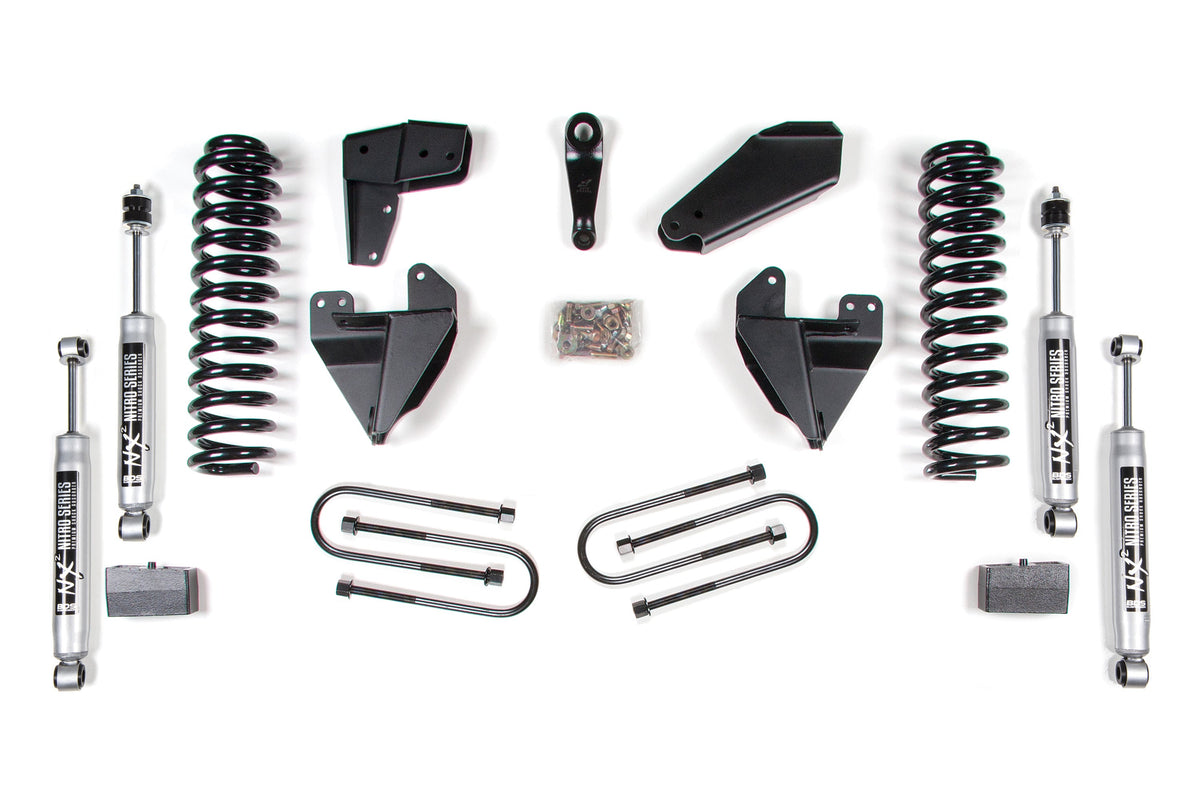

| 2 Inch Block Kit |
BDS501H |
Yes |
one BDS013001, 80-96 Ford F150 Front Box Kit
one BDS033401, 80-96 Ford F150/Bronco 4in Coil Kit
one BDS063209, Ford F150 2 Inch Block & U-bolt Kit
two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1 |

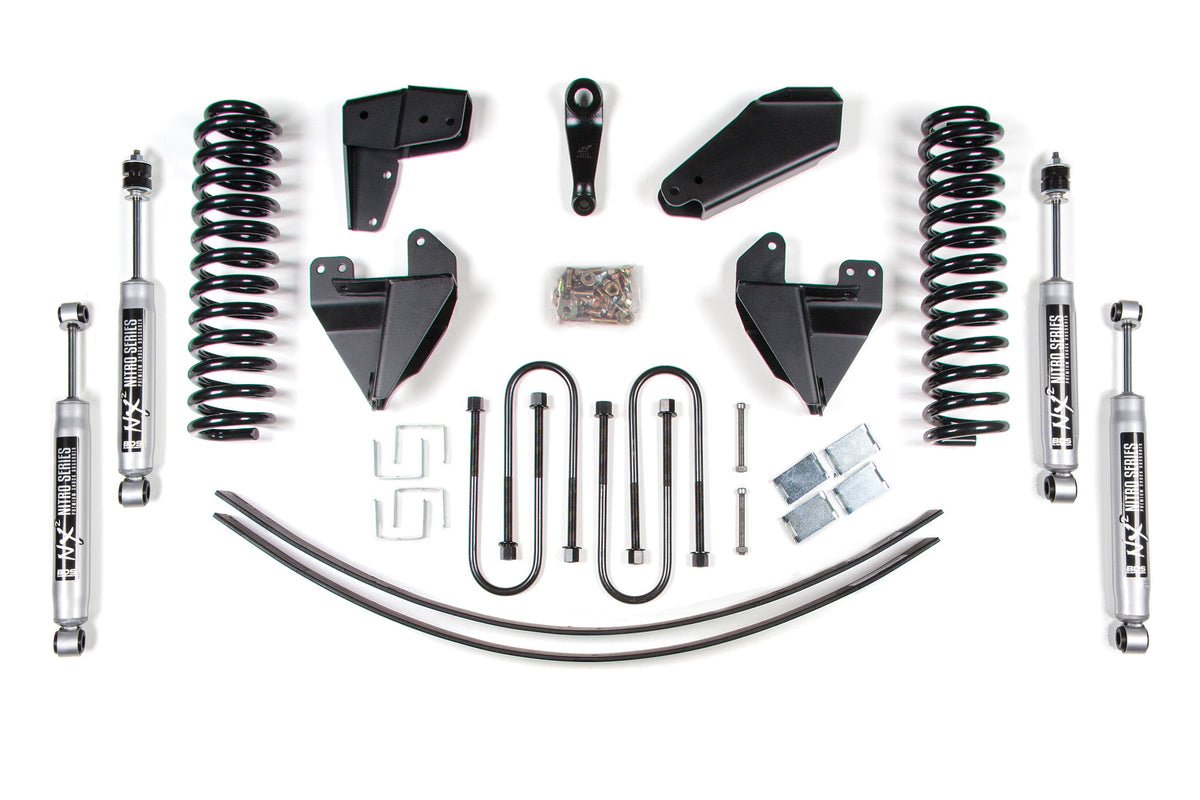

| Dual Add A Leaf_Kit |
BDS503H |
Yes |
one BDS013001, 80-96 Ford F150 Front Box Kit
one BDS033401, 80-96 Ford F150/Bronco 4in Coil Kit
one BDS113209, Ford 3in wide Rear Dual Add-a-leaf
two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1
four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt |

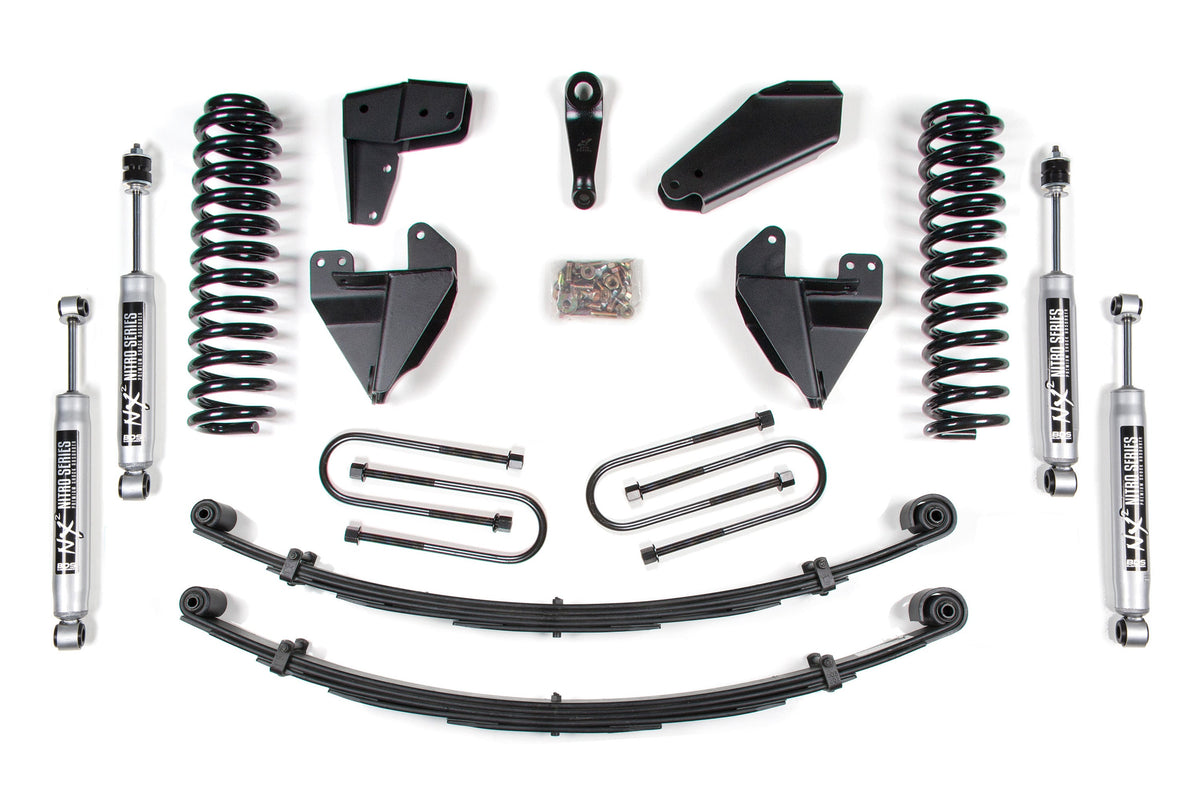

| 4 Inch Leaf Springs |
BDS505H |
Yes |
two BDS003408, 73-96 Ford F150 4in Rear Spring 3in wide
one BDS013001, 80-96 Ford F150 Front Box Kit
one BDS033401, 80-96 Ford F150/Bronco 4in Coil Kit
two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1
four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt |
Fits:
- 1980-1983 Ford F-100
- 1980-1996 Ford F-150
Part #: BDS500H, BDS501H, BDS503H, BDS505H
