BDS Suspension 4 Inch Lift Kit Dodge Ram 1500 2006-2008 4WD
-
Free shipping on orders over $100
-
Secure payments
- Available
BDS steps up the performance and capability of the 2006-2008 Dodge RAM 1500 4WD trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility.
These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Rear Shock Option
FOX 2.0 Performance Series
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|

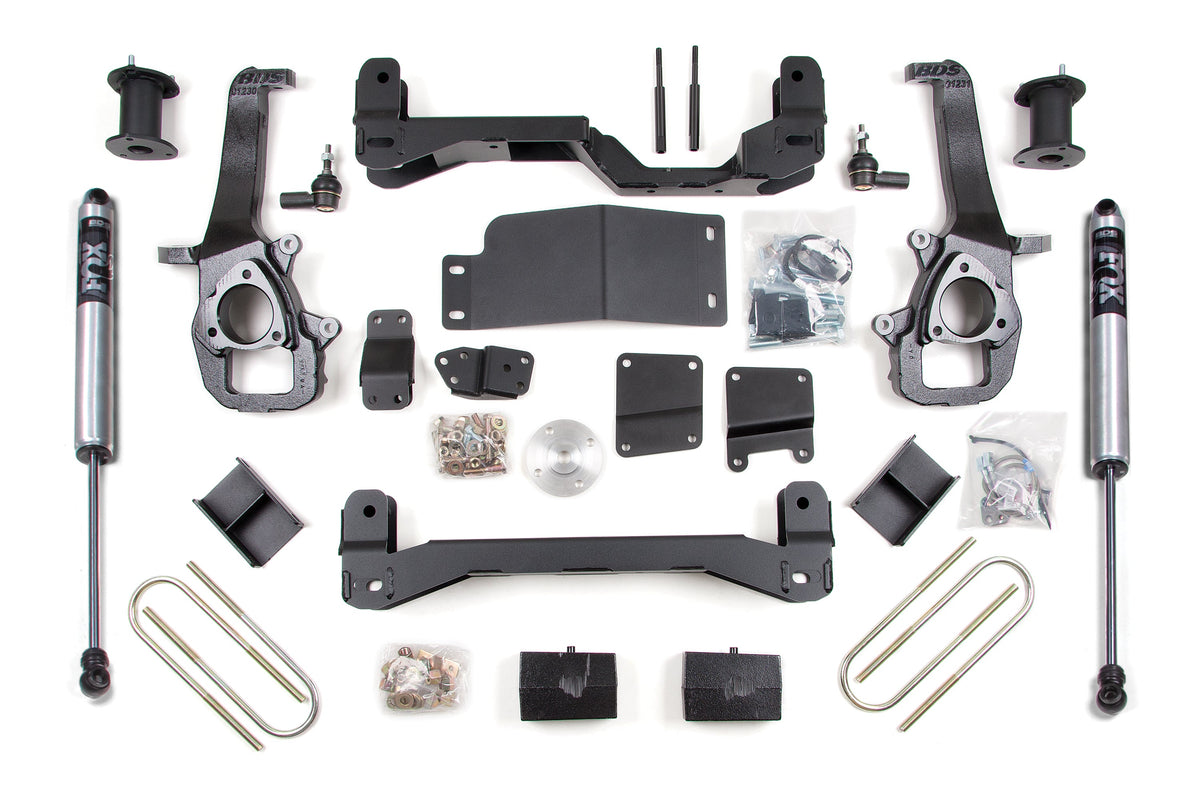

| FOX 2.0 Performance Series | BDS625FS | Yes | one BDS012218, 06-08 Dodge 1500 2 Inch Rear Box Kit one BDS022401, 06-10 Dodge 1500 4in Front Box Kt (3of4) one BDS022605, 06 Dodge 1500 6in (4of4) one BDS022620, 06-10 Dodge 1500 6in Front Box Kt (1of4) one BDS022621, 06-10 Dodge 1500 6in Front Box Kt (2of4) two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 |

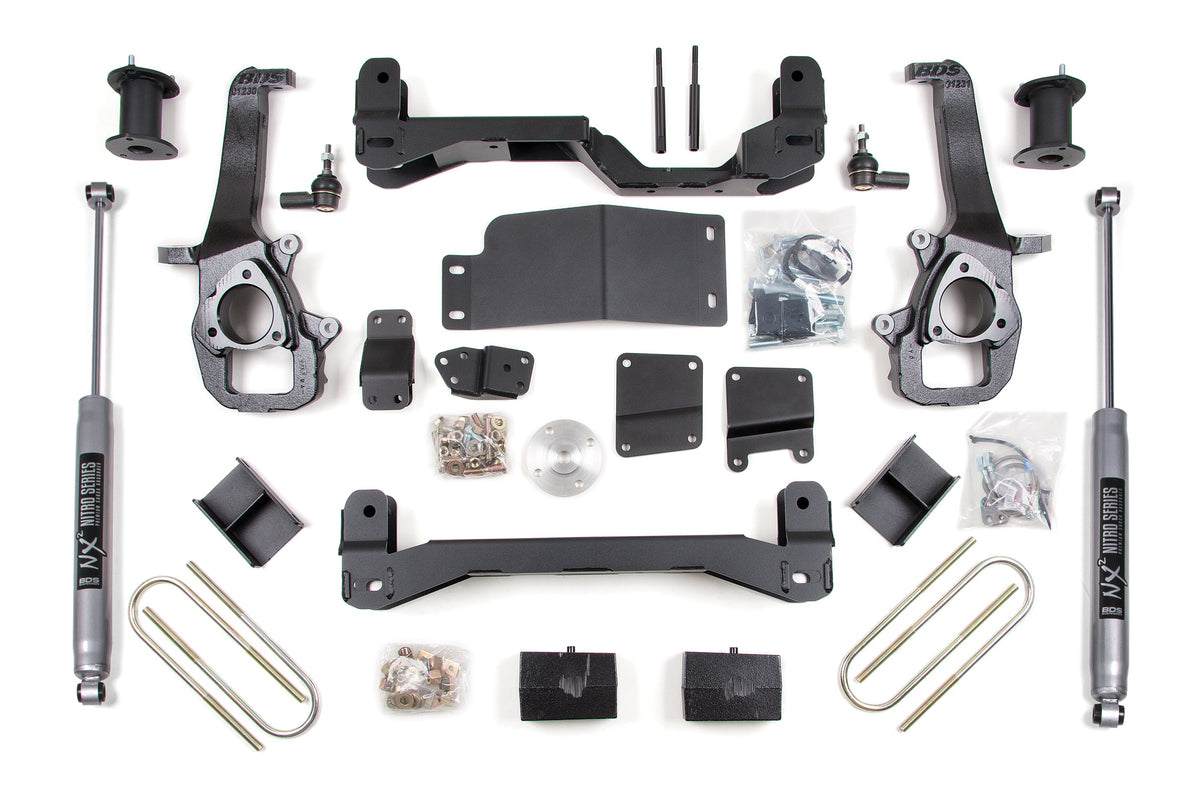

| NX2 Nitro Series | BDS625H | Yes | one BDS012218, 06-08 Dodge 1500 2 Inch Rear Box Kit one BDS022401, 06-10 Dodge 1500 4in Front Box Kt (3of4) one BDS022605, 06 Dodge 1500 6in (4of4) one BDS022620, 06-10 Dodge 1500 6in Front Box Kt (1of4) one BDS022621, 06-10 Dodge 1500 6in Front Box Kt (2of4) two BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1 |
Fits:
Part #: BDS625FS, BDS625H
