BDS Suspension 4 Inch Lift Kit Chevy Colorado ZR2 2017-2022
-
Free shipping on orders over $100
-
Secure payments
- Available
Want to lift your Colorado ZR2 and maintain the factory DSSV shocks? Then check out the BDS 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this lift kit includes everything necessary to set your ZR2 Colorado up right with clearance for up to 35 inch Tires. Specifically engineered strut spacers are supplied to correctly position the DSSV coilovers to set ride height and achieve clearance throughout suspension travel.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

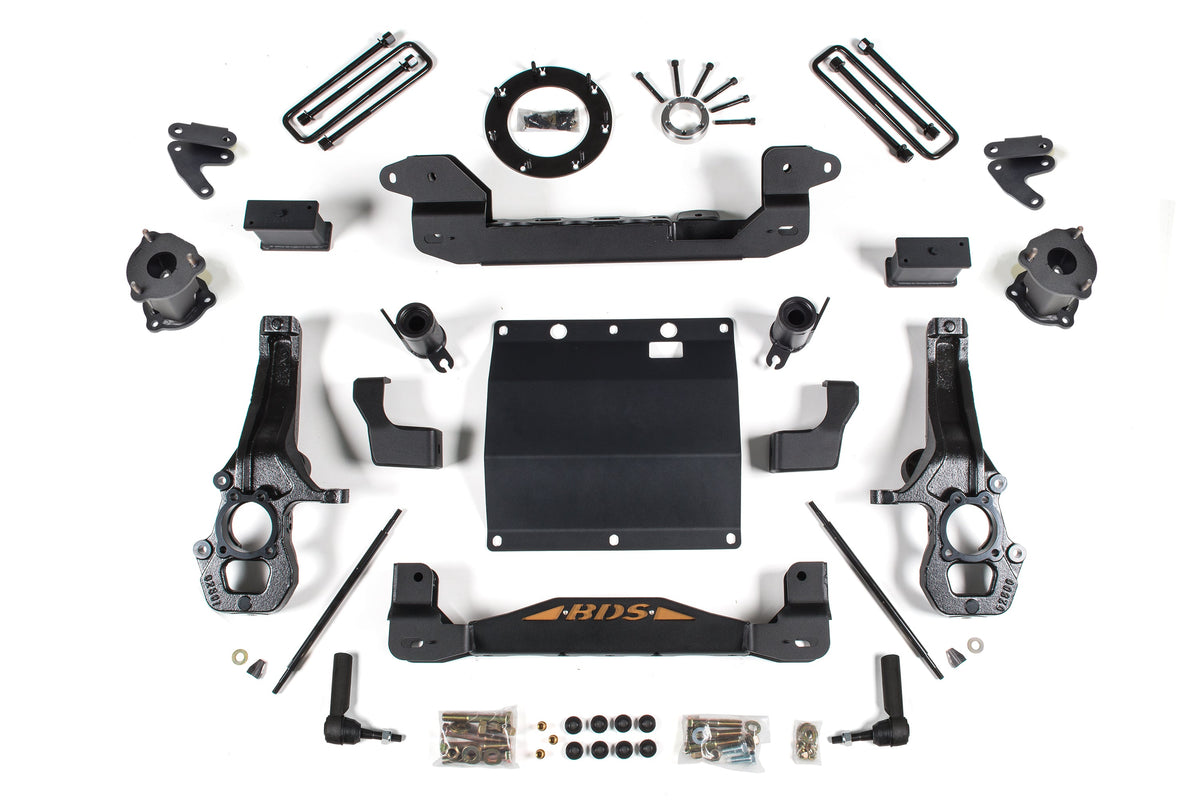

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links, bump stop extensions, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|
| ā | BDS745H | No ā shocks not included | one BDS021400, 2017-2022 Chevrolet Colorado ZR2 Box Kit 1of5 one BDS021401, 2017-2022 Chevrolet Colorado ZR2 Box Kit 2of5 one BDS021402, 2017-2022 Chevrolet Colorado ZR2 Box Kit 3of5 one BDS021403, 2017-2022 Chevrolet Colorado ZR2 Box Kit 4of5 one BDS021404, 2017-2022 Chevrolet Colorado ZR2 Box Kit 5of5 |
Fits:
Part #: BDS745H
