BDS Suspension 4.5 Inch Lift Kit Long Arm Conversion Dodge Ram 2500/3500 1994-1999 4WD

Built to outperform, BDS Suspension engineered a 4.5-inch lift kit with long arm conversion for your 1994-1999 Dodge RAM 2500 and 3500 4WD truck that maximizes performance on and off road.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel.

This 4-Link long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks and add-a-leaf combo, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

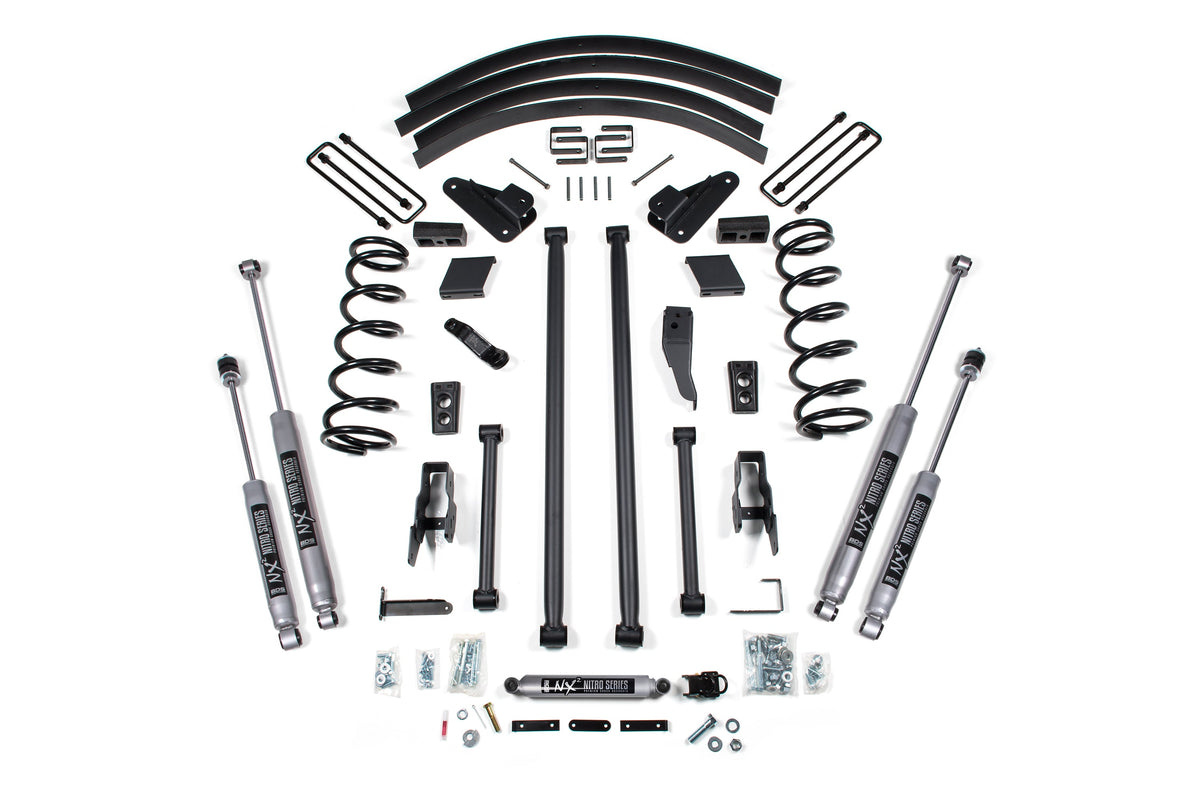

Rear Lift Option Block Kit Without Factory Overload

FOX 2.0 Performance Series

Features:

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• Blocks made of steel for high strength.
• Designed to provide correct pinion angles.
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
• (Trimming may be required)
• 35 x 12.5 with 16 x 8 and 4 in. Backspace
• Internal floating piston (IFP) monotube design
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Fitment Notes (from BDS):

• For models built after February 9, 1994 due to track bar stud size.
• May require exhaust modification
• Dual stabilizer may be substituted for single stabilizer that comes in the kit.
• These vehicles were produced with and without a top mounted overload spring. You will need to identify which your vehicle has before ordering.

Specifications:

• Lift Height: 4.5 Inch
• Front Lift Height: 4.5 Inch
• Rear Lift Height: 4.5 Inch
• Drive: 4WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 1994-1999 Dodge Ram 2500
• 1994-1999 Dodge Ram 3500

Part #: BDS213FS, BDS213H, BDS214FS, BDS214H, BDS216FS, BDS216H
