BDS Suspension 4.5 Inch Lift Kit Chevy Silverado or GMC Sierra 2500HD/3500 2001-2010 SRW 4WD
-
Free shipping on orders over $100
-
Secure payments
- Available
Designed to improve stance, performance, and capability, the BDS 4.5-inch lift kit for the 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 4WD is a must have upgrade. For maximum ground clearance. This kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function..
Track Width Option Narrow Track Knuckle
This system is available with two different knuckle designs. The standard knuckle widens the track width, but does not affect the turning radius. The narrow track knuckle reduces the total track width change by about 1.5 inch overall but does increase the turning radius slightly.
FOX 2.0 Performance Series
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|
| FOX 2.0 Performance Series / Narrow Track Knuckle | BDS1817FS | Yes | one BDS011319, 01-10 GM HD 3in Rear Kit one BDS021451, 01-10 GM HD 4.5in Box Kit (2of3) one BDS021452, 01-10 GM HD 4.5in Box Kit (3of3) one BDS021635, HD Narrow Track Knuckle Kit two FOX98224605, Fox 2.0 Shock 21.95 x 13.85 x 2- S50/EB1 two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
| NX2 Nitro Series / Narrow Track Knuckle | BDS1817H | Yes | one BDS011319, 01-10 GM HD 3in Rear Kit one BDS021451, 01-10 GM HD 4.5in Box Kit (2of3) one BDS021452, 01-10 GM HD 4.5in Box Kit (3of3) one BDS021635, HD Narrow Track Knuckle Kit two BDS85605, Shock - 22.20 x 13.35 x 2 - S50/EB1 two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |

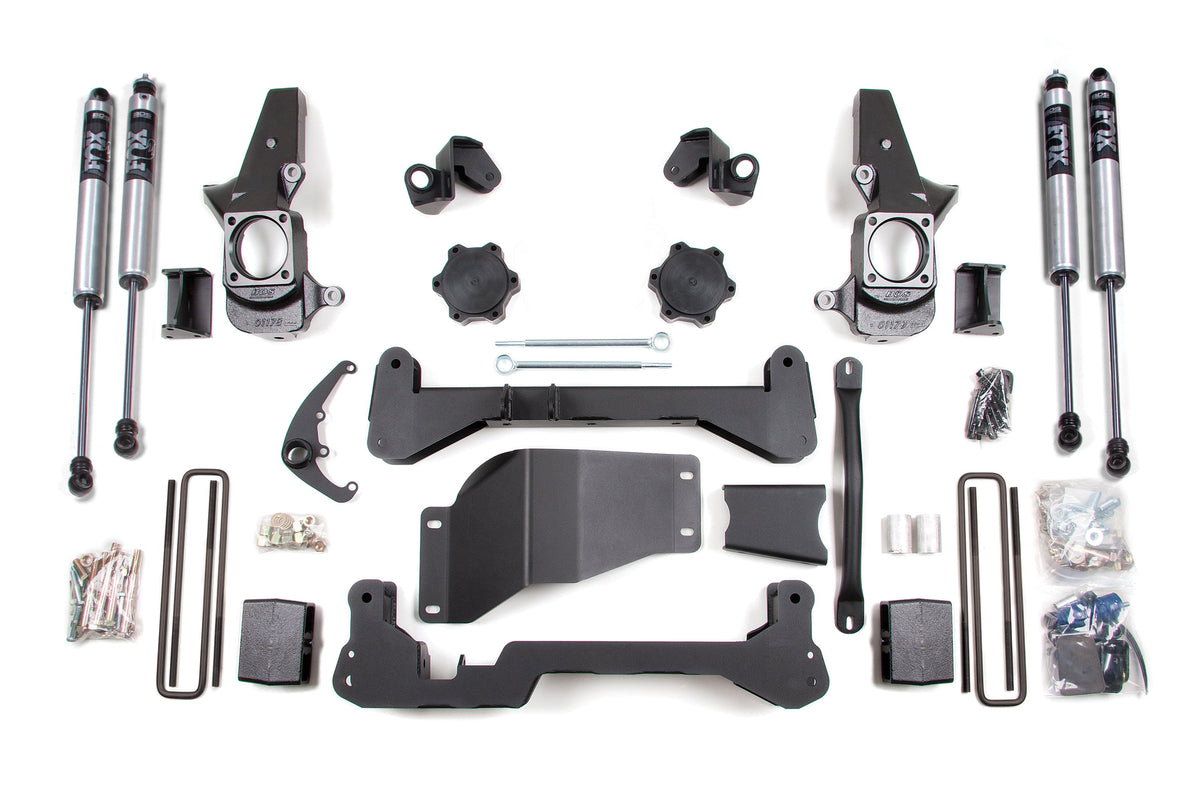

| FOX 2.0 Performance Series / Standard Knuckle | BDS192FS | Yes | one BDS011319, 01-10 GM HD 3in Rear Kit one BDS021451, 01-10 GM HD 4.5in Box Kit (2of3) one BDS021452, 01-10 GM HD 4.5in Box Kit (3of3) one BDS021632, HD Knuckle Kit two FOX98224605, Fox 2.0 Shock 21.95 x 13.85 x 2- S50/EB1 two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |

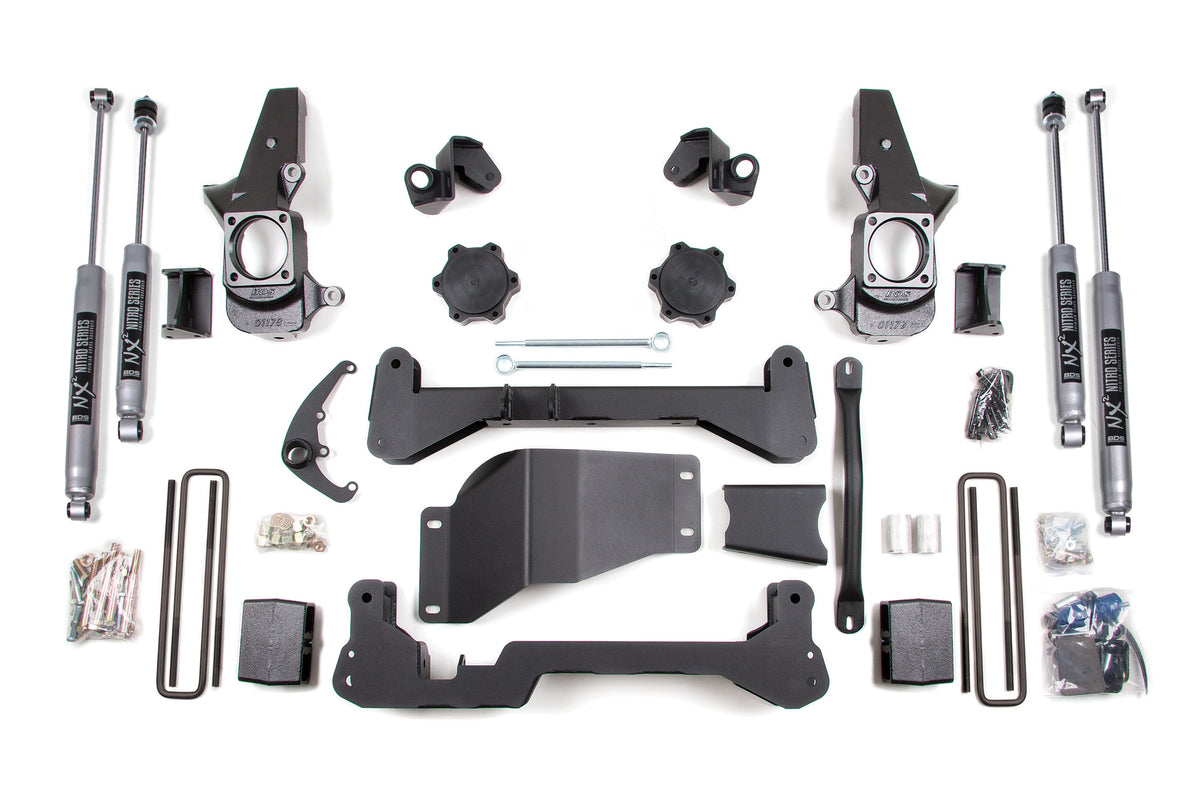

| NX2 Nitro Series / Standard Knuckle | BDS192H | Yes | one BDS011319, 01-10 GM HD 3in Rear Kit one BDS021451, 01-10 GM HD 4.5in Box Kit (2of3) one BDS021452, 01-10 GM HD 4.5in Box Kit (3of3) one BDS021632, HD Knuckle Kit two BDS85605, Shock - 22.20 x 13.35 x 2 - S50/EB1 two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
Fits:
Part #: BDS1817FS, BDS1817H, BDS192FS, BDS192H
