BDS Suspension 4.5 Inch Lift Kit Chevy Silverado or GMC Sierra 1500 2014-2018 4WD

The BDS 4.5-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.

Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

Features and Benefits:

Recommended Tires and Wheels:

Factory Control Arm TypeImportant: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the Cast Steel Control Arm kit. Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit. Be sure to verify which factory control arms your truck has before ordering.

Rear Shock Option:

NX2 Nitro Series:

FOX 2.0 Performance Series:

Rear Lift Option:

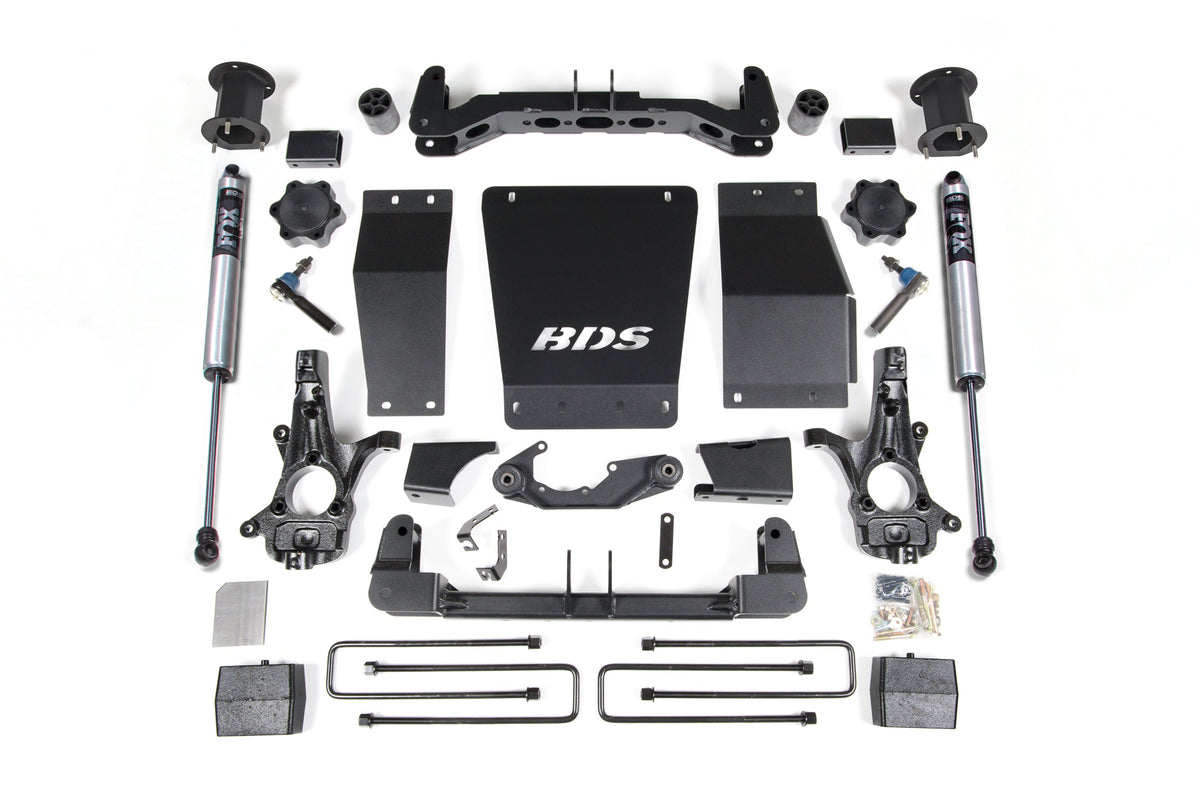

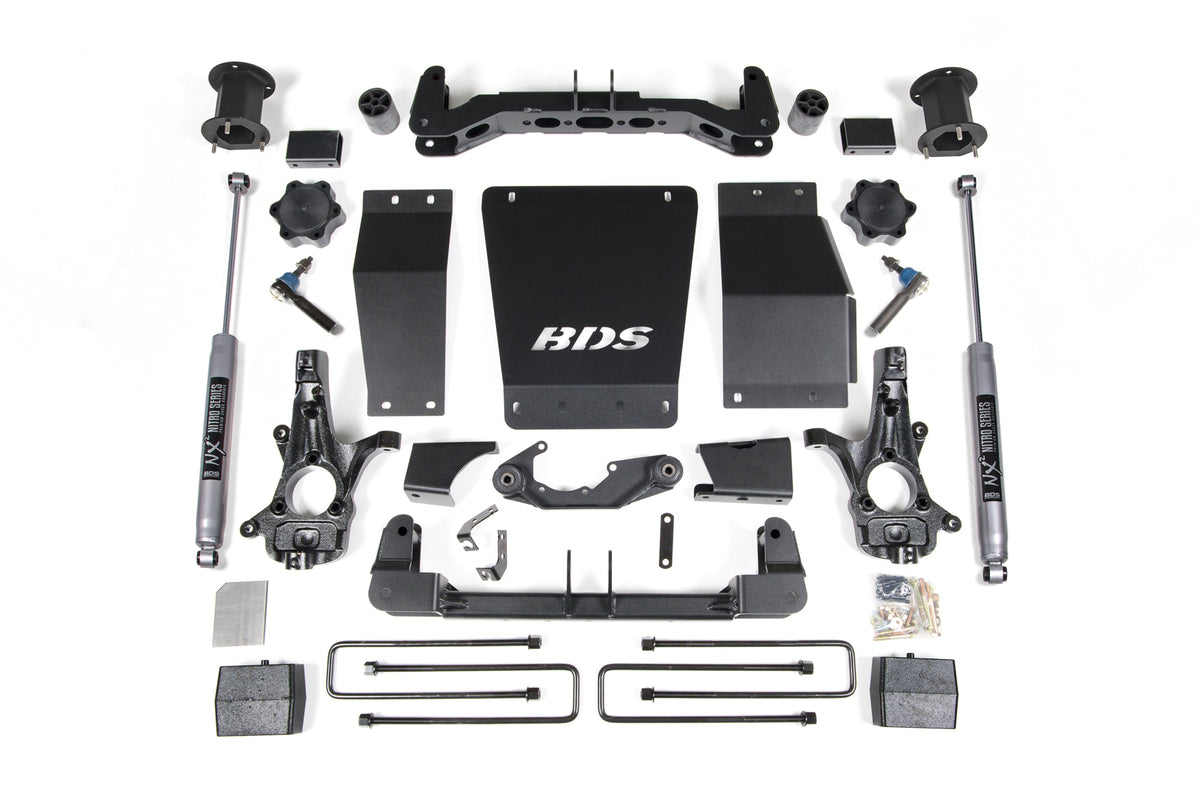

3 Inch Block Kit:

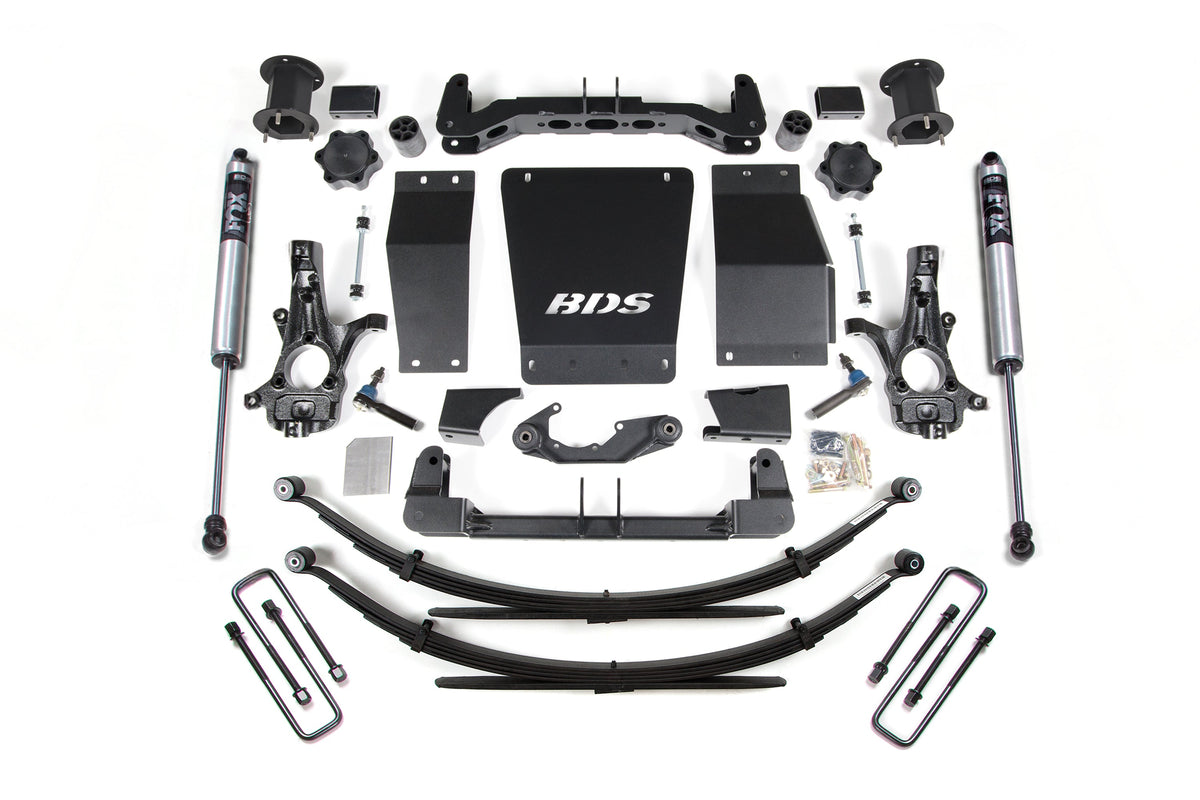

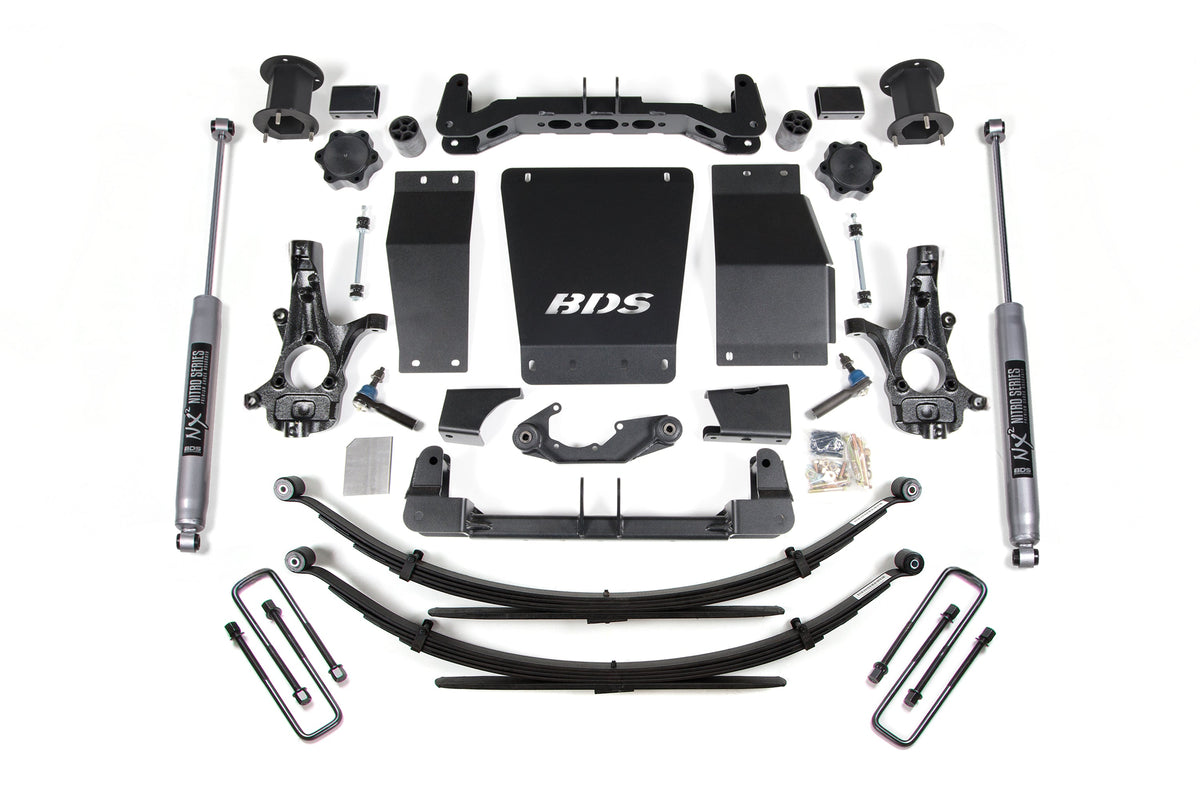

Leaf Springs:

Details:

Features:

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Choice of FOX 2.0 performance series or BDS NX2 Twin tube rear shocks.
• Factory Protection Plus drivetrain warranty included
• (Trimming may be required)
• 32 x 12.5 with 17 x 8 and 4.5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• The 3 inch rear block replaces the factory 1-1/4 inch block
• Nets 2 inch of rear lift to level the vehicle.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Specifications:

• Lift Height: 4.5
• Front Lift Height: 4.5
• Drive: 4WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 2014-2018 Chevrolet Silverado 1500
• 2014-2018 GMC Sierra 1500

Part #: BDS901FS, BDS901H, BDS902FS, BDS902H, BDS903FS, BDS903H, BDS904FS, BDS904H
