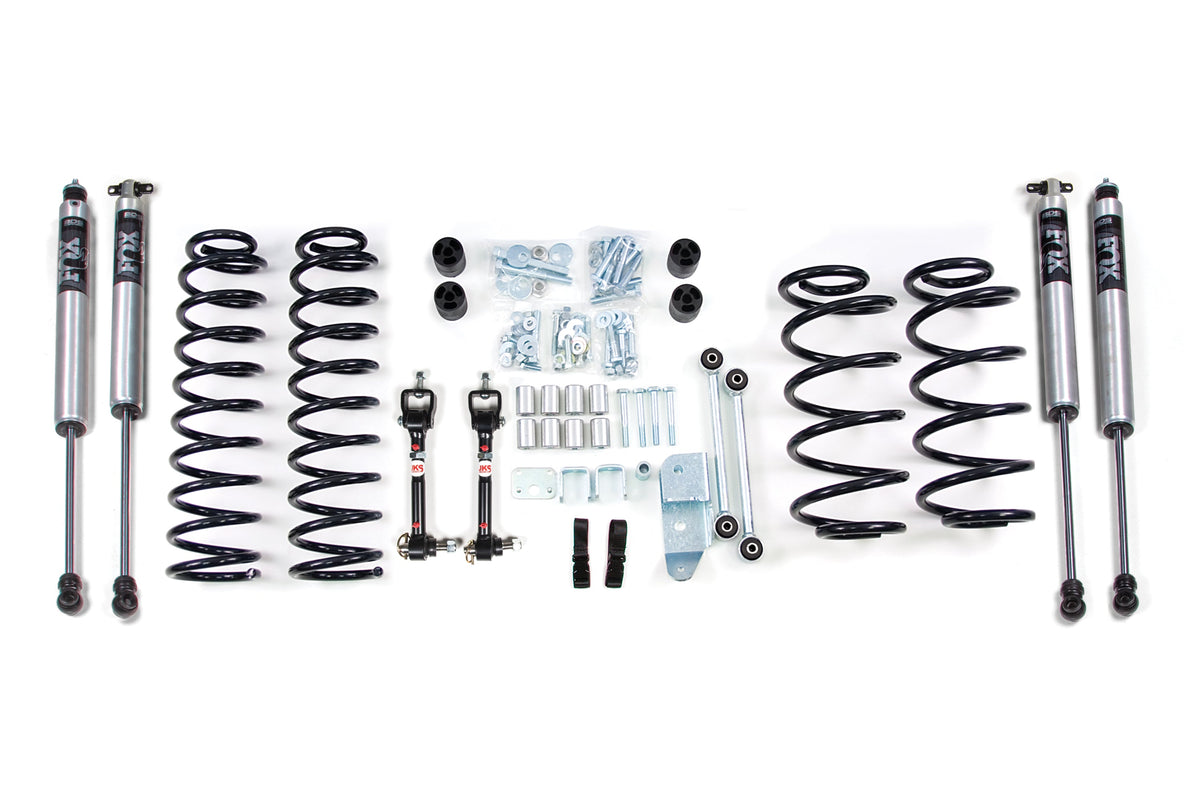

BDS Suspension 3 Inch Lift Kit Jeep Wrangler TJ Rubicon 2003-2006

Improve the style and handling of your 2003-2006 Jeep Wrangler TJ Rubicon with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch tires.

Up front the lift kit includes Glide-Ride coil springs, JKS sway bar link disconnects to improve offroad articulation, bump stop extensions, and a transfer case drop to maintain proper driveline angles. In the rear the kit utilizes matching Glide-Ride coil springs to add height without creating a harsh ride to level out the Jeep and rear track bar bracket.

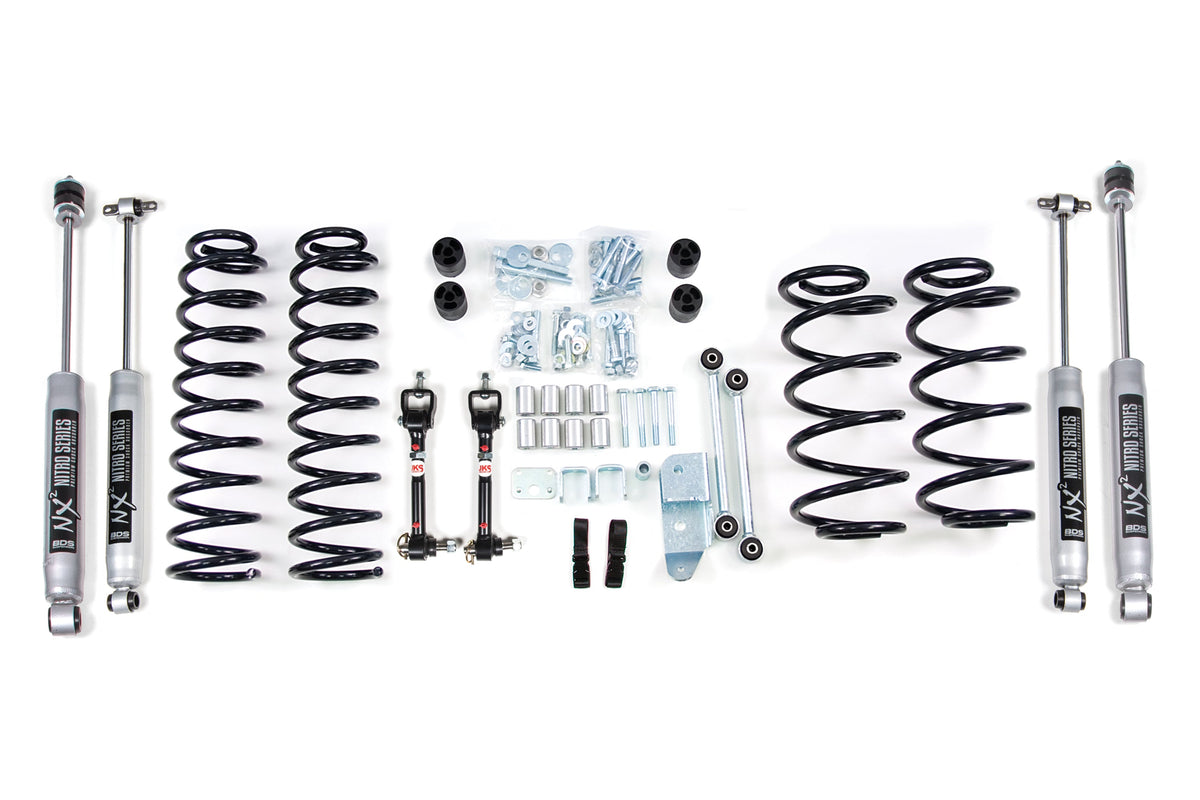

These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Pro-Ride Coil SpringsA pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Features and Benefits:

Recommended Tires and Wheels:

Shock Option:

NX2 Nitro Series:

FOX 2.0 Performance Series:

Details:

Features:

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
• Allows clearance for 33 inch tires
• (Trimming may be required)
• 33 x 12.5 with 16 x 8 and 3.5 in. Backspace
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specifications:

• Lift Height: 3.0 Inch
• Front Lift Height: 3.0 Inch
• Rear Lift Height: 3.0 Inch
• Drive: 4WD
• Fuel Type: Gas
• Lift Type: Coil Spring
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Options & Part Numbers:

Fits:

• 2003-2006 Jeep Wrangler

Part #: BDS424FS

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
