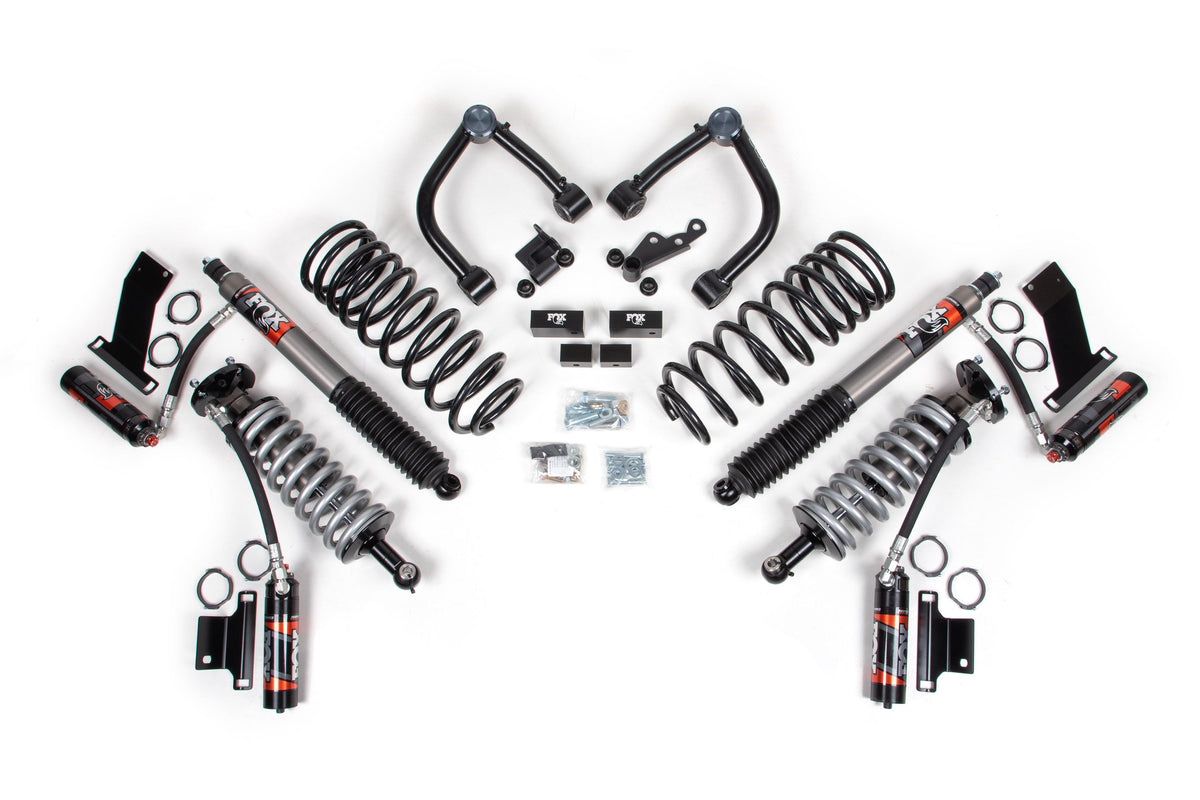

BDS Suspension 3 Inch Lift Kit FOX Coilover Toyota Tundra 2022-2026 4WD
-
Free shipping on orders over $100
-
Secure payments
- Available
Take your 2022-2024 Toyota Tundra truck to the next level and improve the ride with this 0-3-inch lift kit featuring FOX 2.5 Performance Elite Coilovers from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

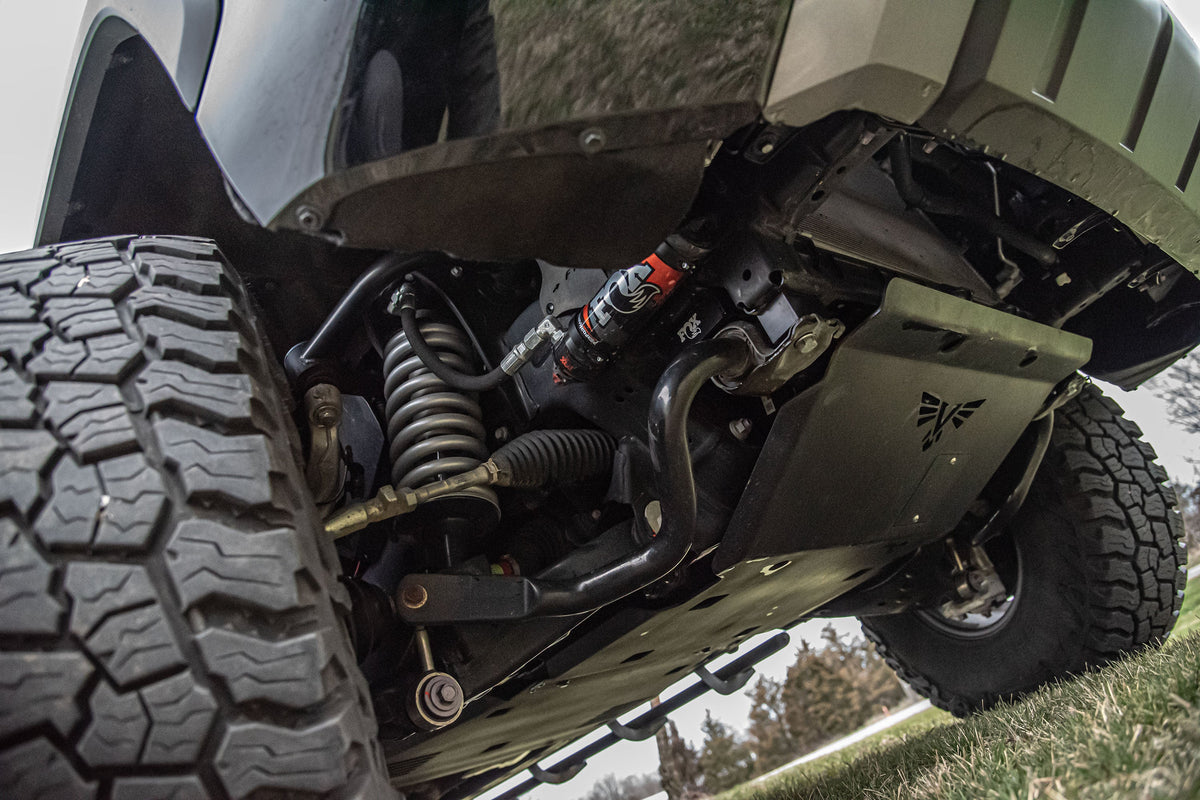

Up front the lift kit includes FOX 2.5 Performance Elite Coilovers with Dual Speed Compression Adjust remote reservoirs, heavy duty tubular upper control arms for increased strength, BDS heavy duty diff. drop brackets as well as solid aluminum sway bar drop blocks.
In the rear this kit utilizes 1- 3/4 inch BDS heavy duty coil springs and a set of FOX 2.5 Performance Elite shocks with Dual Speed Compression Adjust remote reservoirs for ultimate adjustability that lets you dial in for the smoothest ride possible.
Dual Speed Compression Adjust Adjustment
FOX 2.5 Performance Elite front coil-overs and rear shocks come equipped with Dual Speed Compression Adjust (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.
Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
2. Arms are designed to work with Fox Coilovers that require upper control arms and may not work with all aftermarket spacer lifts / lift kits (Will work with BDS 3 inch Lift). The ball joint has been re-indexed to allow for max range of motion with 2 inch-3 inch lifts.
3. Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals
4. For replacement ball joints, order BDS088200. Ball joints are not directional
Tires and Wheels
No Trimming
Trimming
Wheel and Tire combination was tested through normal driving conditions within alignment specs with no rubbing or trimming needed. Wheel and Tire combination was tested through normal driving conditions within alignment specs and some or all the following were required: removal of mud flap, fender liner being trimmed or fastened further back, body mount bump being cut off or ground down
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|
| FOX 2.5 Performance Elite | BDS838FPE | Yes | one BDS028311, 2022 Toyota Tundra 3 inch Front Box Kit one BDS038156, 2022 Toyota Tundra, 1-3/4 inch Rear Coil Spring one BDS128254, 2022 Toyota Tundra UCA Box Kit one FOX88326139, Kit: 22-ON Toyota Tundra, Rear, 2.5 Truck Fox Performance Elite Series, R/R, Dual Speed Compression Adjust, 0-1.5 inch Lift one FOX88406318, Kit: 22-ON Toyota Tundra, w/UCA, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, Dual Speed Compression Adjust, 3 inch Lift |
Fits:
Part #: BDS838FPE
