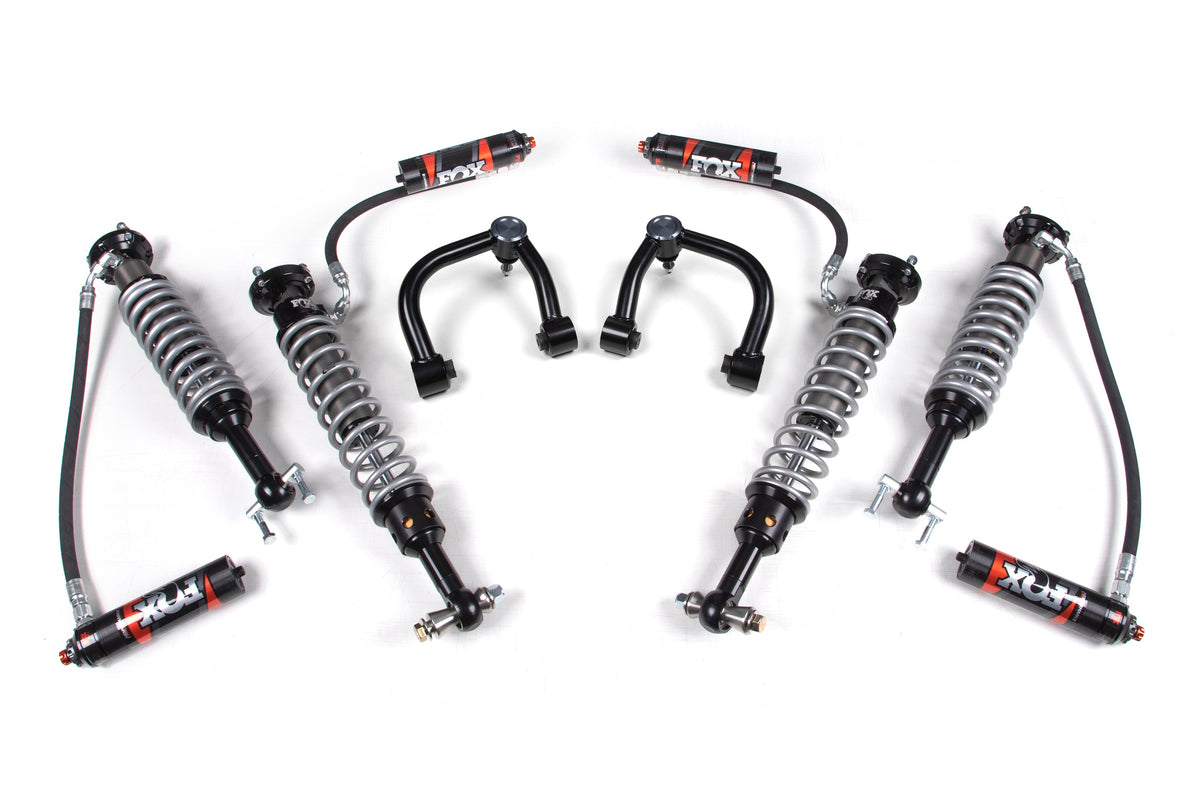

BDS Suspension 3 Inch Lift Kit FOX 2.5 Performance Elite Coilover Ford Bronco 2021-2026
-
Free shipping on orders over $100
-
Secure payments
- Available
Up the ante in your 2021-2023 Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

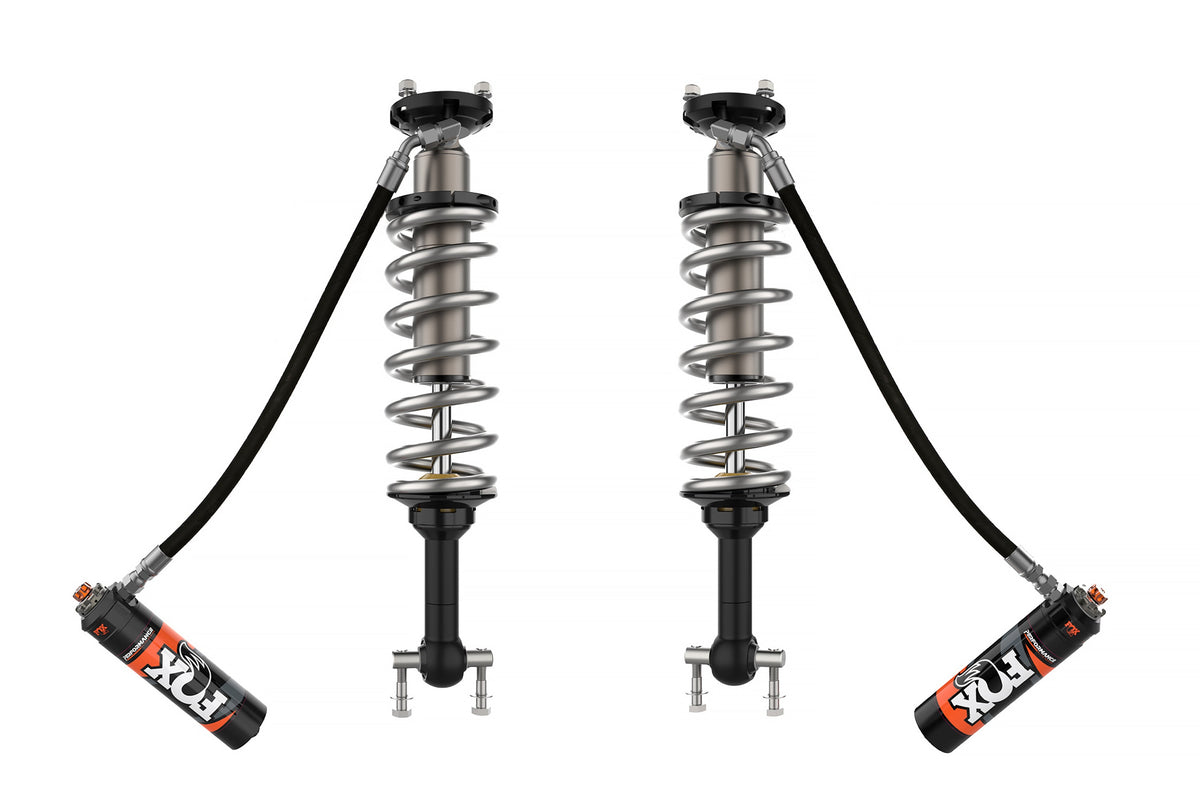

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 2.5 Performance Elite coil-over shocks for an improved ride.
Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3 inch of lift, 4-Door Badlands: net 3.5 inch of lift, and 4-Door Broncos with the base suspension: net 4 inch of lift.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

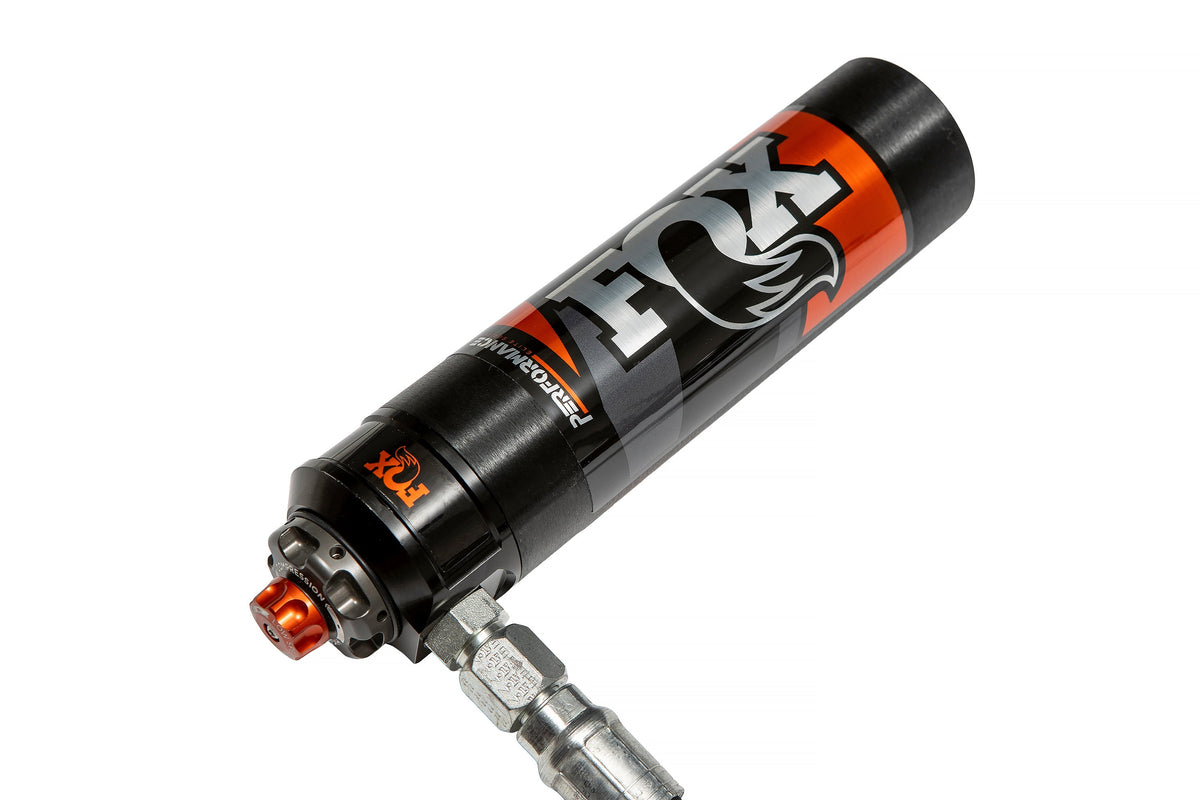

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed high-stength uniball to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Will provide the following lift amounts:
Features:
Fitment Notes (from BDS):
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|
| Uniball | BDS1905FPE | Yes | one BDS123254, 2021-2023 Ford Bronco Upper Control Arm - BDS one FOX88306212, Kit: 21-ON Ford Bronco, 4 Door, w/UCA, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, Base 4 inch Lift, Sasquatch 3 inch Lift, Dual Speed Compression Adjust one FOX88306213, Kit: 21-ON Ford Bronco, 4 Door, Rear Coilover, 2.5 Truck Fox Performance Elite Series, R/R, Base 3 inch Lift, Sasquatch 2 inch, Dual Speed Compression Adjust |
| Ball Joint | BDS2245FPE | Yes | BDS123264, FOX88306212, FOX88306213 |
Fits:
Part #: BDS1905FPE, BDS2245FPE
