Take your 2003-2013 Dodge RAM 2500 and 2003-2012 RAM 3500 4WD diesel powered truck to the next level with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires. The BDS 3-inch lift kit features fixed length, greaseable, heavy-duty round tubular construction upper and lower control arms that position the axle properly and adjust for proper caster and pinion angles.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty adjustable track bar, fixed length tubular upper and lower control arms, fixed length sway bar links with stud eliminator, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
1. Measure rear axle tube before ordering. Some 4 inch axle models have dual overloads that will require #4063 u-bolts.
2. Rear lift options will not fit dually applications.
3. Not recommended for Power Wagon models.
4. Will not fit commercial chassis (Cab and Chassis) models.
Axle Diameter - 4 Inch Axle
The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.
FOX 2.0 Performance Series
Features:
- Heavy duty tubular short arms improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front HD adjustable track bar to re-position axle
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improve ride and offroad performance
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Specifications:
- Lift Height: 3.0 Inch
- Front Lift Height: 3.0 Inch
- Rear Lift Height: 2.0 Inch
- Drive: 4WD
- Fuel Type: Diesel
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |

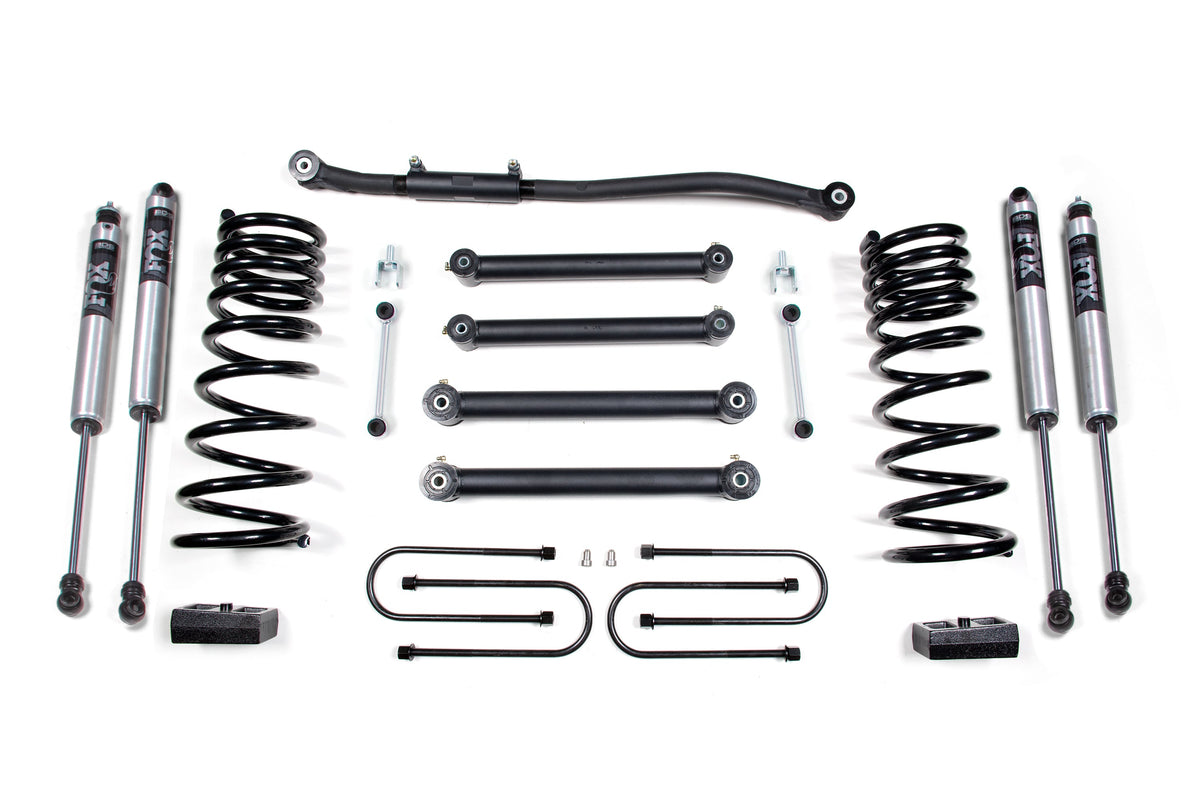

| 4 Inch Axle / FOX 2.0 Performance Series |
BDS690FS |
Yes |
one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4
one BDS012304, 03-13 Dodge 2500 3in Box Kit
one BDS032301, Dodge 2500 3 inch Coil Spring (diesel)
two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |

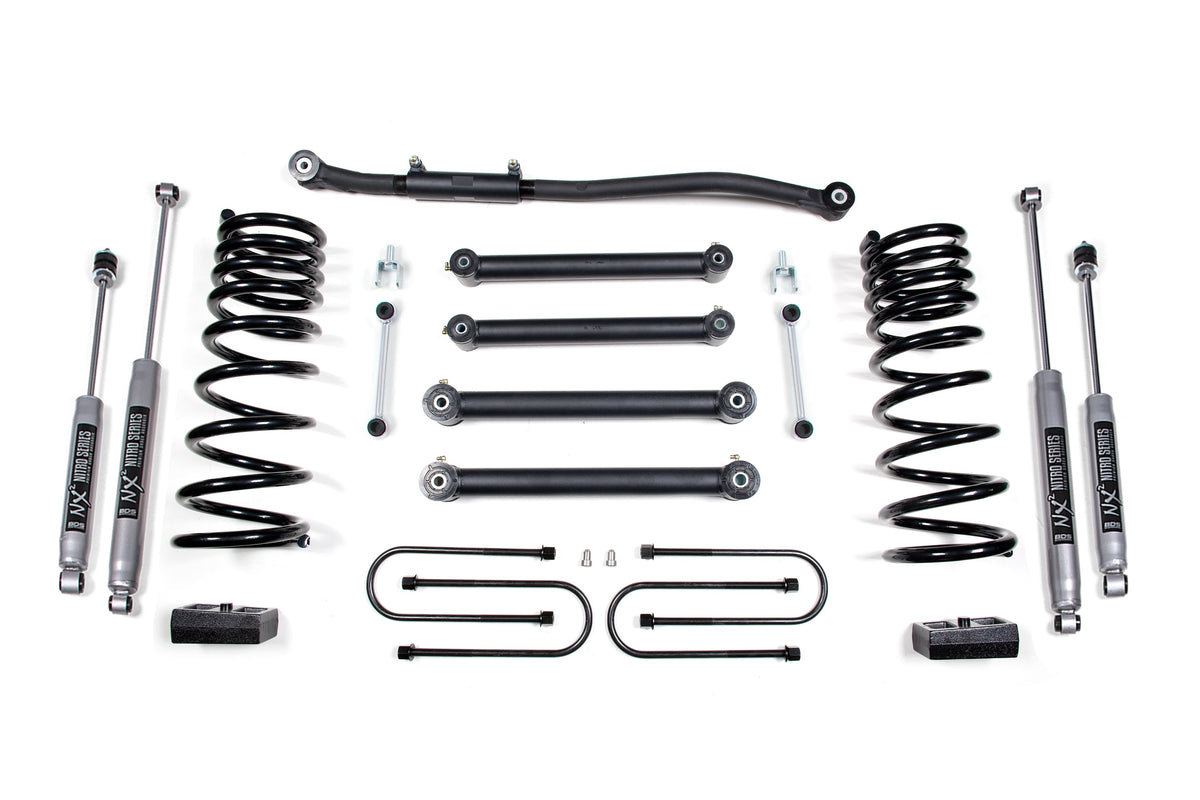

| 4 Inch Axle / NX2 Nitro Series |
BDS690H |
Yes |
one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4
one BDS012304, 03-13 Dodge 2500 3in Box Kit
one BDS032301, Dodge 2500 3 inch Coil Spring (diesel)
two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
| 3-1/2 Inch Axle / FOX 2.0 Performance Series |
BDS691FS |
Yes |
one BDS012208, 03-06 Dodge 2500 2 Inch Rear Box w/3-1/2 ax
one BDS012304, 03-13 Dodge 2500 3in Box Kit
one BDS032301, Dodge 2500 3 inch Coil Spring (diesel)
two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |
| 3-1/2 Inch Axle / NX2 Nitro Series |
BDS691H |
Yes |
one BDS012208, 03-06 Dodge 2500 2 Inch Rear Box w/3-1/2 ax
one BDS012304, 03-13 Dodge 2500 3in Box Kit
one BDS032301, Dodge 2500 3 inch Coil Spring (diesel)
two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
Fits:
- 2003-2010 Dodge Ram 2500
- 2003-2010 Dodge Ram 3500
- 2011-2013 Ram 2500
- 2011-2012 Ram 3500
Part #: BDS690FS, BDS690H, BDS691FS, BDS691H
