BDS Suspension 2 Inch Leveling Kit Ram 2500 w/ Rear Air Ride 2014-2027 4WD

Level the front of your 2014-2024 RAM 2500 4WD air ride equipped truck by installing this 2-inch leveling kit from BDS. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires at an affordable price.

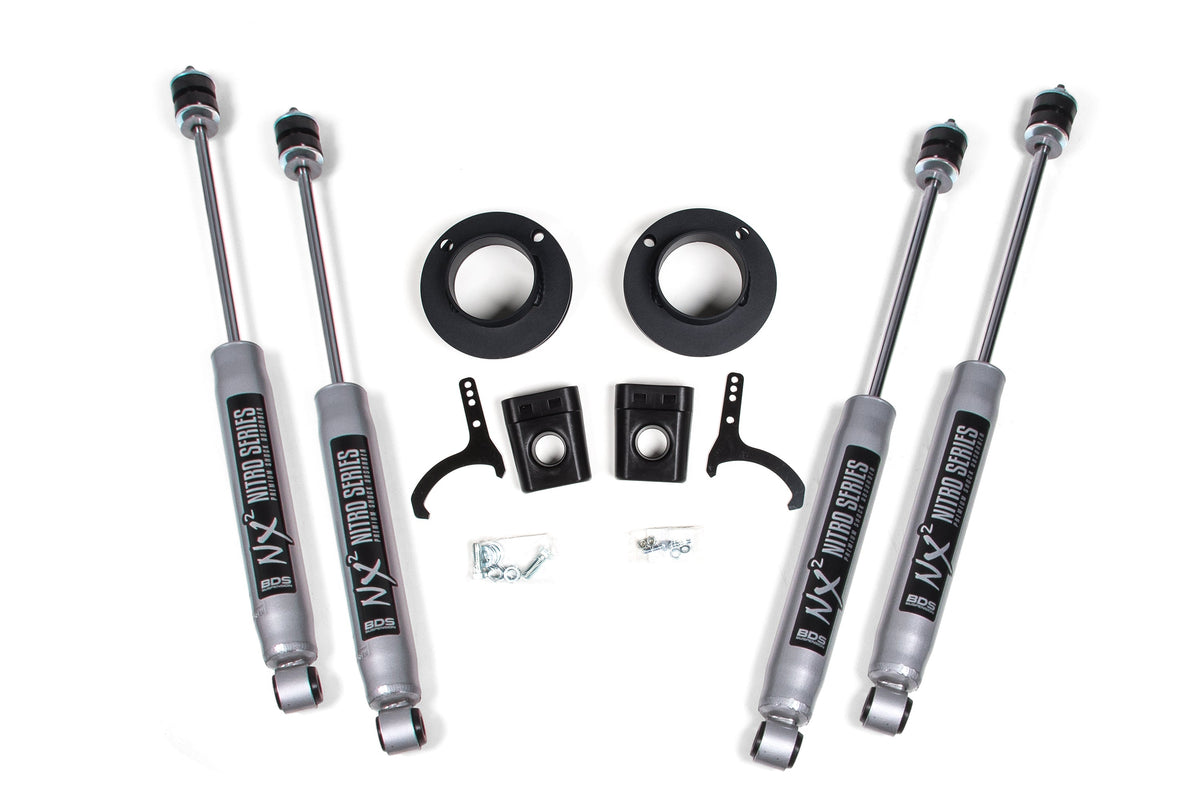

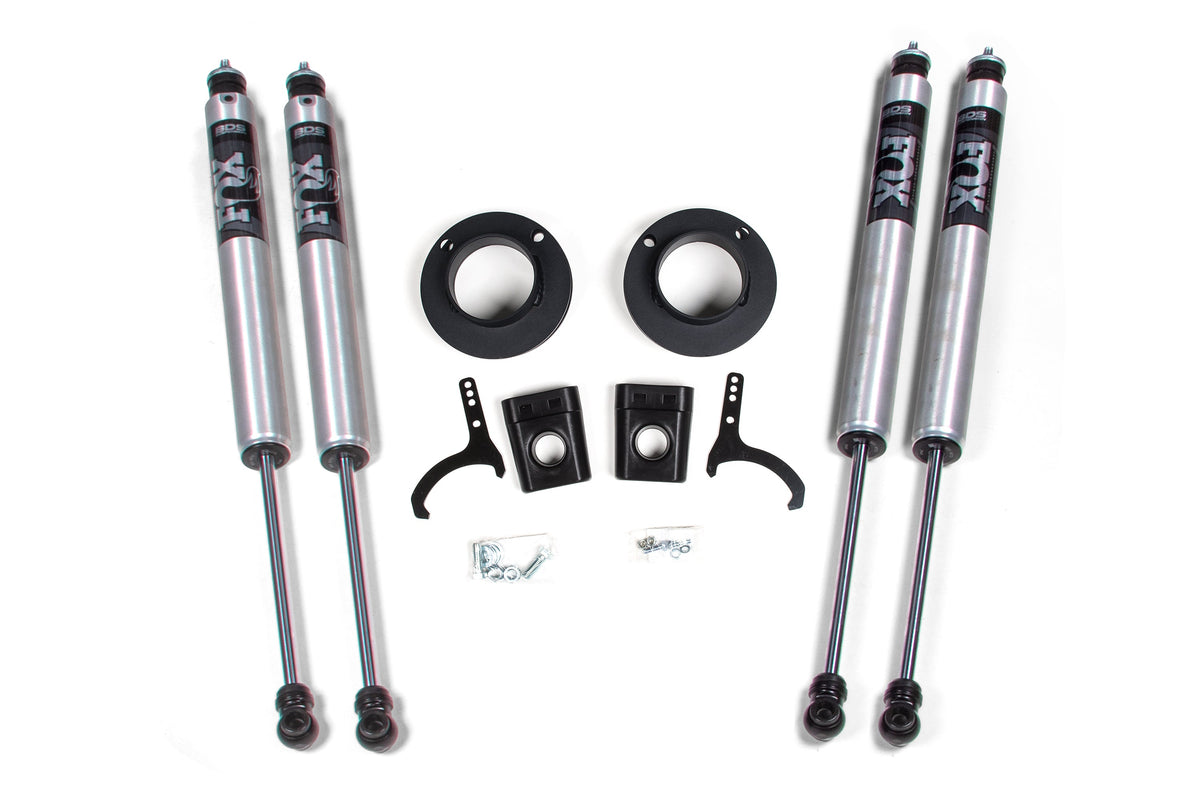

The lift kit includes steel fabricated coil spacers, extended bump stops, air ride sensor bracket, and custom-tuned NX2 Nitro or FOX 2.0 Performance series shocks.

FOX 2.0 Performance Series

Features:

• Easy, 100 percent Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Fitment Notes (from BDS):

• Fits OE Equiped Air Ride systems only

Specifications:

• Lift Height: 2.0 Inch
• Front Lift Height: 2.0 Inch
• Rear Lift Height: 0.0 Inch
• Drive: 4WD
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Options & Part Numbers:

Fits:

• 2014-2025 Ram 2500

Part #: BDS1635FS, BDS1635H
