Upgrade your truck’s stance, capability, and ride performance with the BDS 2 inch Coilover Shock Leveling Kit, combining premium FOX coilover technology with heavy duty BDS tubular upper control arms for improved suspension geometry, increased wheel travel, and long term durability. This system is available with multiple FOX shock options including FOX 2.0 Performance, FOX 2.5 Performance, FOX 2.5 Performance Elite, and FOX 3.0 Factory Race IBP, allowing you to choose the level of on and off road performance that best matches your driving needs.
The FOX 2.0 Performance Series provides a solid step up from stock with smoother damping and better heat dissipation, while the FOX 2.5 Performance Series delivers greater oil capacity and cooling for more aggressive terrain. For drivers demanding maximum tunability, the FOX 2.5 Performance Elite and FOX 3.0 Factory Race IBP coilovers include external reservoirs and feature the new DSC Evo Dual Speed Compression Evo adjuster, which offers a broader tuning range, improved oil flow, and more intuitive high and low speed compression adjustments.
The DSC Evo adjuster allows you to fine tune ride quality, body control, bottom out resistance, and overall suspension feel on the fly without tools, thanks to its expanded damping range, enhanced durability, and refined internal porting. Every kit comes equipped with BDS’s high strength tubular upper control arms, built from fully welded heavy wall steel with indexed ball joint cups to optimize alignment and maximize suspension travel when paired with performance coilovers.
Together, the coilover and UCA combination delivers exceptional control, comfort, and handling while leveling the truck and improving front end clearance, all backed by the legendary BDS No Fine Print Warranty.
Details:
Specifications:
- Lift Height: 2.0 Inch
- Front Lift Height: 2.0 Inch
- Rear Lift Height: 0.0 Inch
- Drive: 4WD
- Lift Type: Coilover/UCA
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |

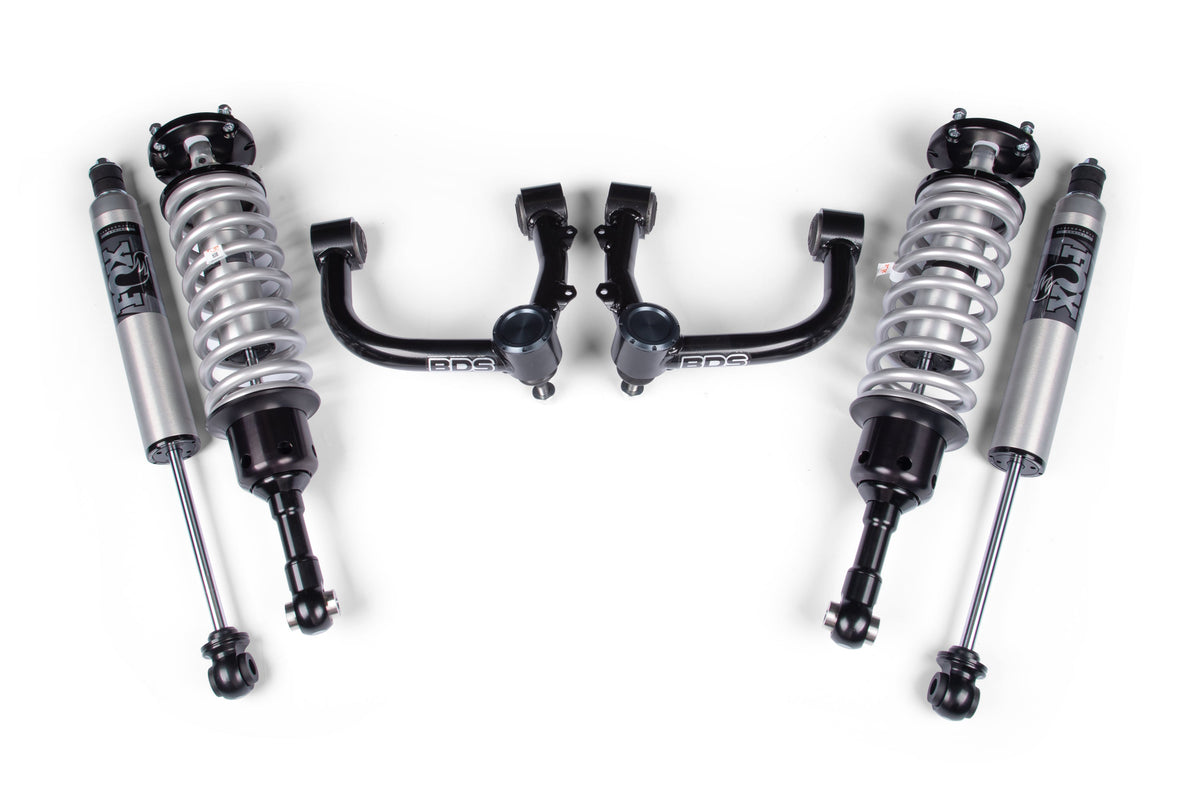

| FOX 2.5 Performance Series HTO |
BDS843FPS |
Yes |
BDS128255, FOX98702008 (x2), FOX98724052 (x2) |

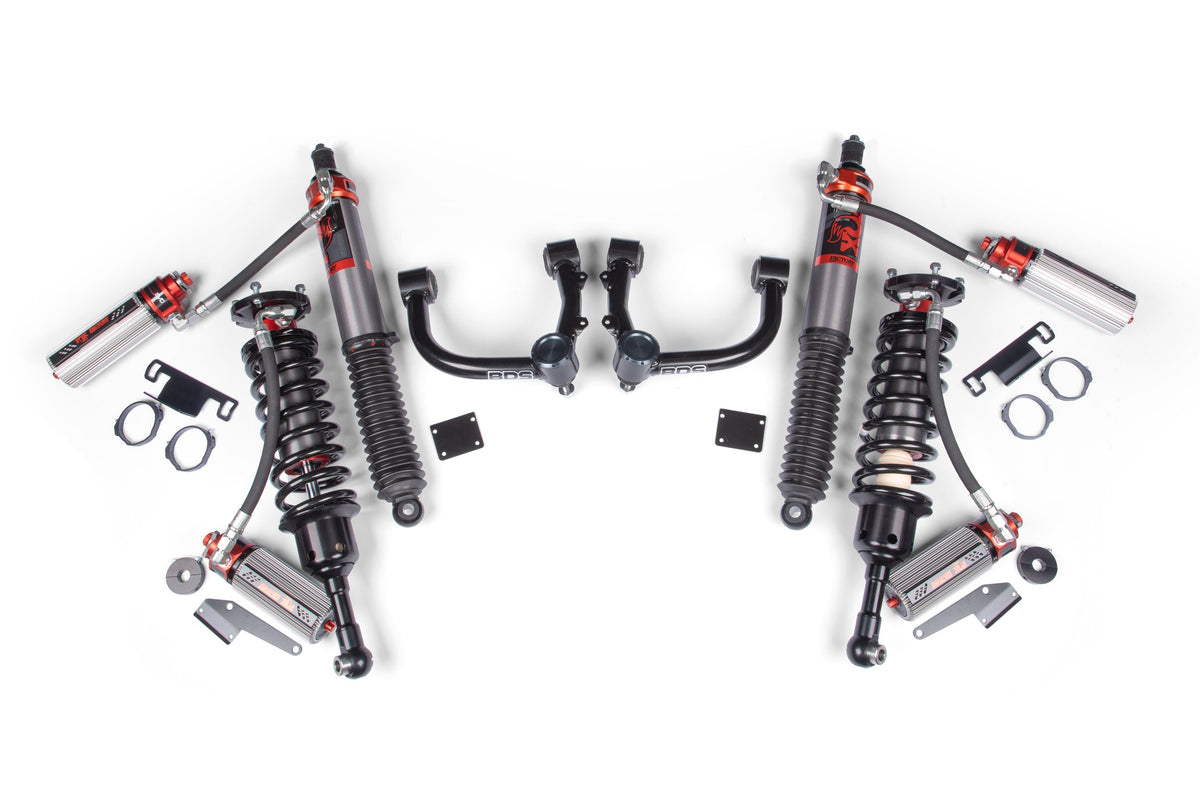

| FOX 3.0 Factory Race Series |
BDS843FRS |
Yes |
BDS128255, FOX88306232, FOX88326149 |

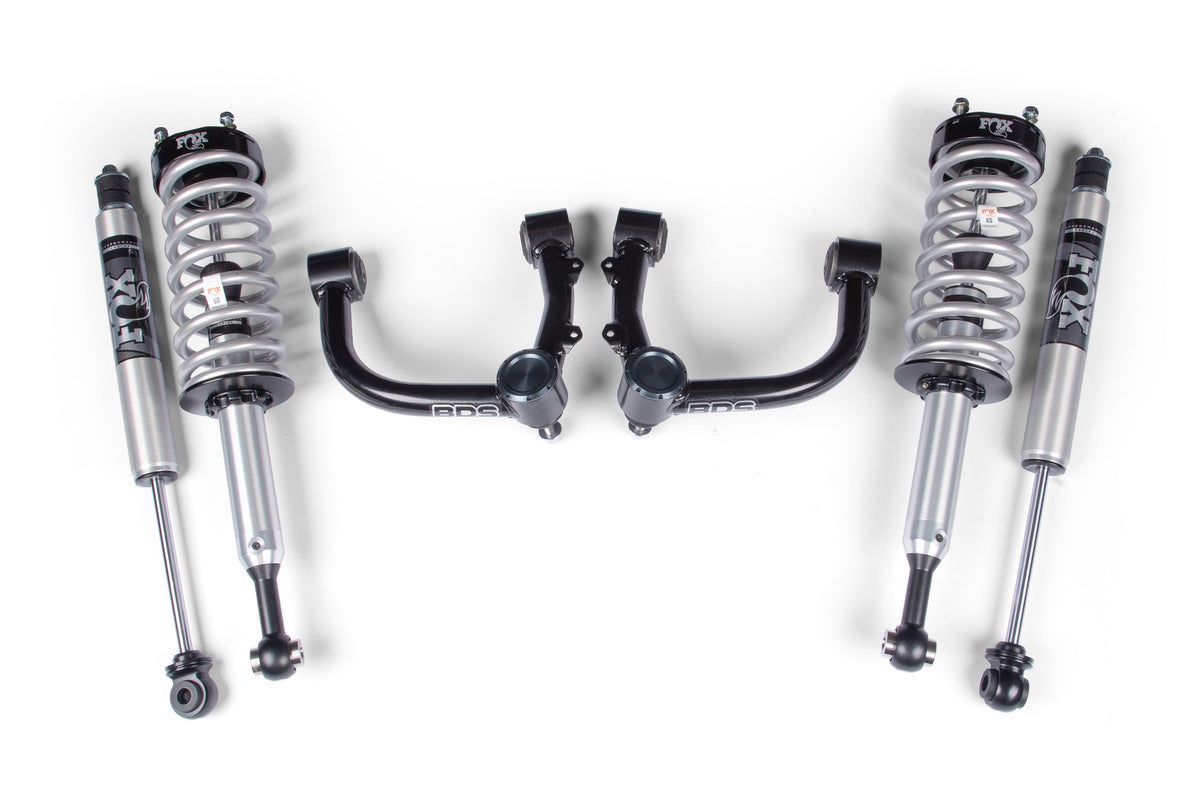

| FOX 2.0 Performance Series |
BDS843FSL |
Yes |
BDS128255, FOX98502155 (x2), FOX98524211 (x2) |

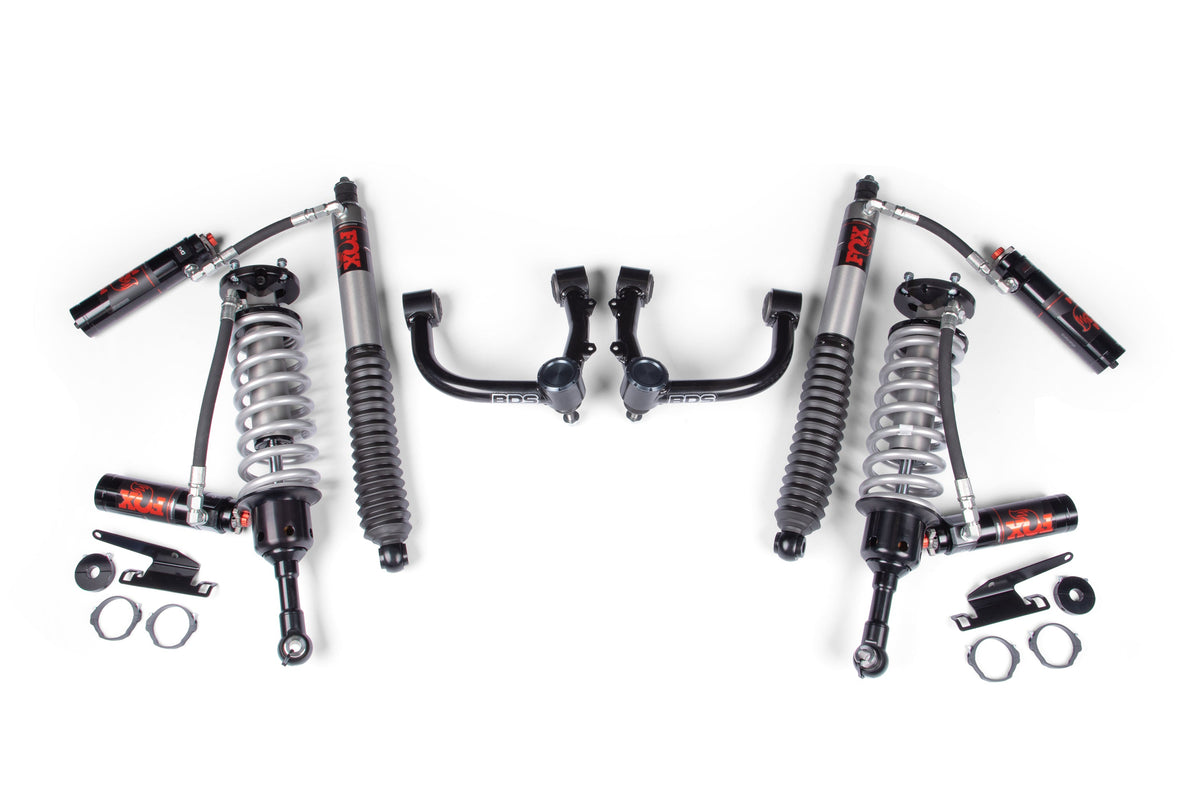

| FOX 2.5 Performance Elite |
BDS843PES |
Yes |
BDS128255, FOX88306224, FOX88326143 |
Fits:
Part #: BDS843FPS, BDS843FRS, BDS843FSL, BDS843PES
