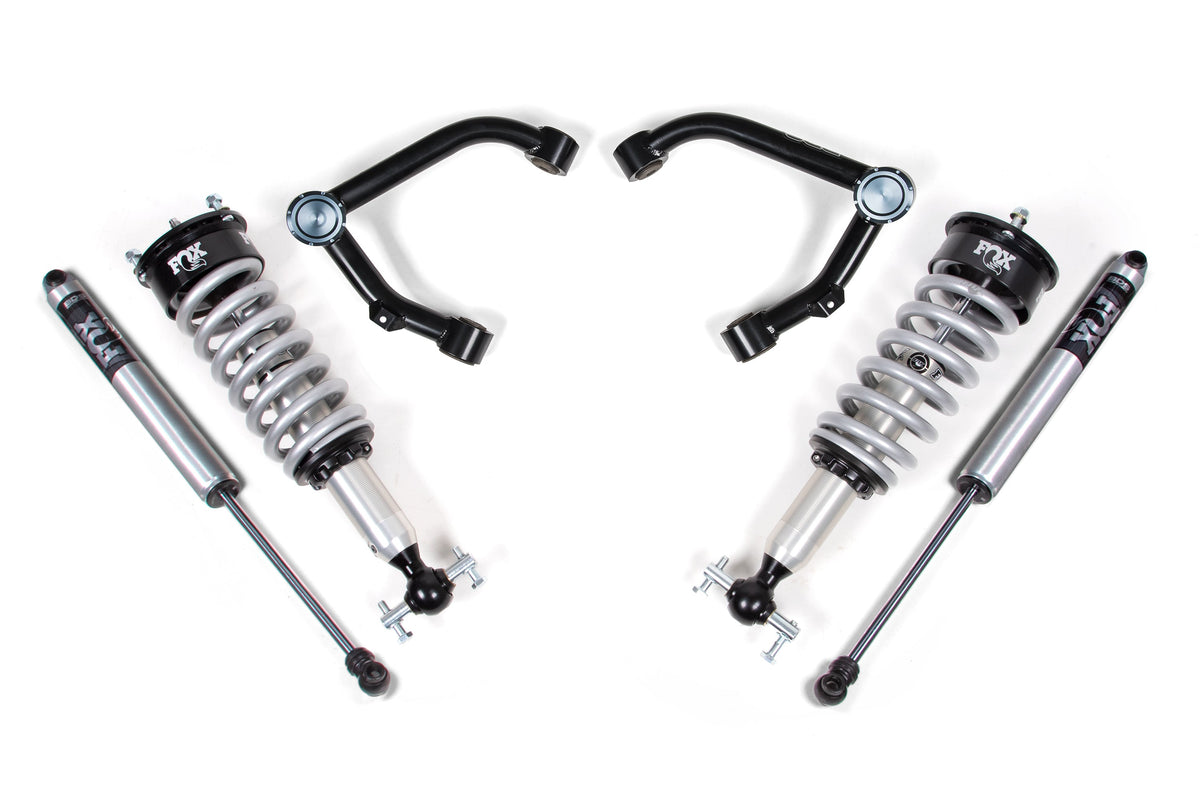

Level out your 2007-2018 Chevy Silverado and GMC Sierra 1500 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.
FOX 2.0 Coil-Over Shocks
These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut.
They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.
HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.
Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Factory Control Arm Type - Cast Steel
IMPORTANT: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the inchCast Steel Control Arm inch kit.
Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit.
Features:
- FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Fitment Notes (from BDS):
- 33x12.50 Tires will require weld on steering stop, also it requires inner fender well modification to clear this width Tire
- Will Not fit MagneRide magnetic ride control equipped models
Specifications:
- Lift Height: 2.0 Inch
- Front Lift Height: 2.0 Inch
- Rear Lift Height: 0.0 Inch
- Drive: 4WD
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
- Tire Size: 285 / 70 Tire Size 2: 33 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 94.5
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |
| Cast Steel |
BDS757FSL |
Yes |
one BDS121151, 07-18 Chevy 1500 UCA Kit -Cast Steel UCA
two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
two FOX98502018, 07-ON Chevy 1500 Front Coilover, PS, 2.0, Internal Floating Piston, 4.3 inch, 0-2 inch Lift |
| Aluminum / Stamped Steel |
BDS758FSL |
Yes |
one BDS121152, 2014-18 GM 1500 UCA - Aluminum / Stamped Steel CA
two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
two FOX98502018, 07-ON Chevy 1500 Front Coilover, PS, 2.0, Internal Floating Piston, 4.3 inch, 0-2 inch Lift |
Fits:
- 2007-2013 Chevrolet Avalanche
- 2007-2018 Chevrolet Silverado 1500
- 2015-2018 Chevrolet Suburban
- 2007-2014 Chevrolet Suburban 1500
- 2007-2018 Chevrolet Tahoe
- 2007-2018 GMC Sierra 1500
- 2007-2018 GMC Yukon
- 2015-2018 GMC Yukon XL
- 2007-2014 GMC Yukon XL 1500
Part #: BDS757FSL, BDS758FSL
