Level the stance of your 2017-2019 Ford F250 and F350 Super Duty truck by installing this 2-inch coil spacer leveling kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires at an affordable price.
Up front the lift kit includes billet aluminum coil spacers, track bar bracket for steering correction, alignment cams, and custom-tuned nitrogen charged shocks.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
FOX 2.0 Performance Series
Features:
- Easy, 100 percent Bolt-on installation
- Maintains factory like ride quality
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Specifications:
- Lift Height: 2.0 Inch
- Front Lift Height: 2.0 Inch
- Rear Lift Height: 0.0 Inch
- Drive: 4WD
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
- Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |

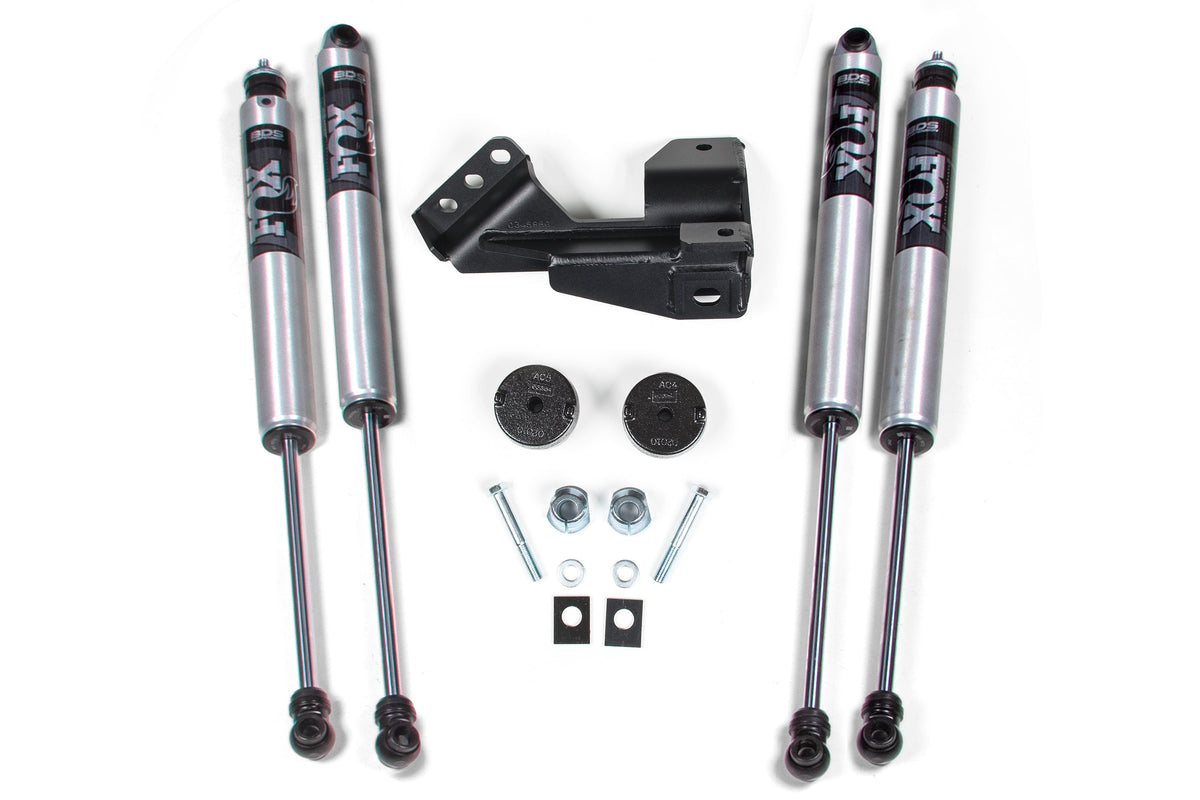

| FOX 2.0 Performance Series |
BDS1519FS |
Yes |
one BDS013202, 2017 Super Duty 2 Inch Front Spacer Box Kit
two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
two FOX98224717, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 |

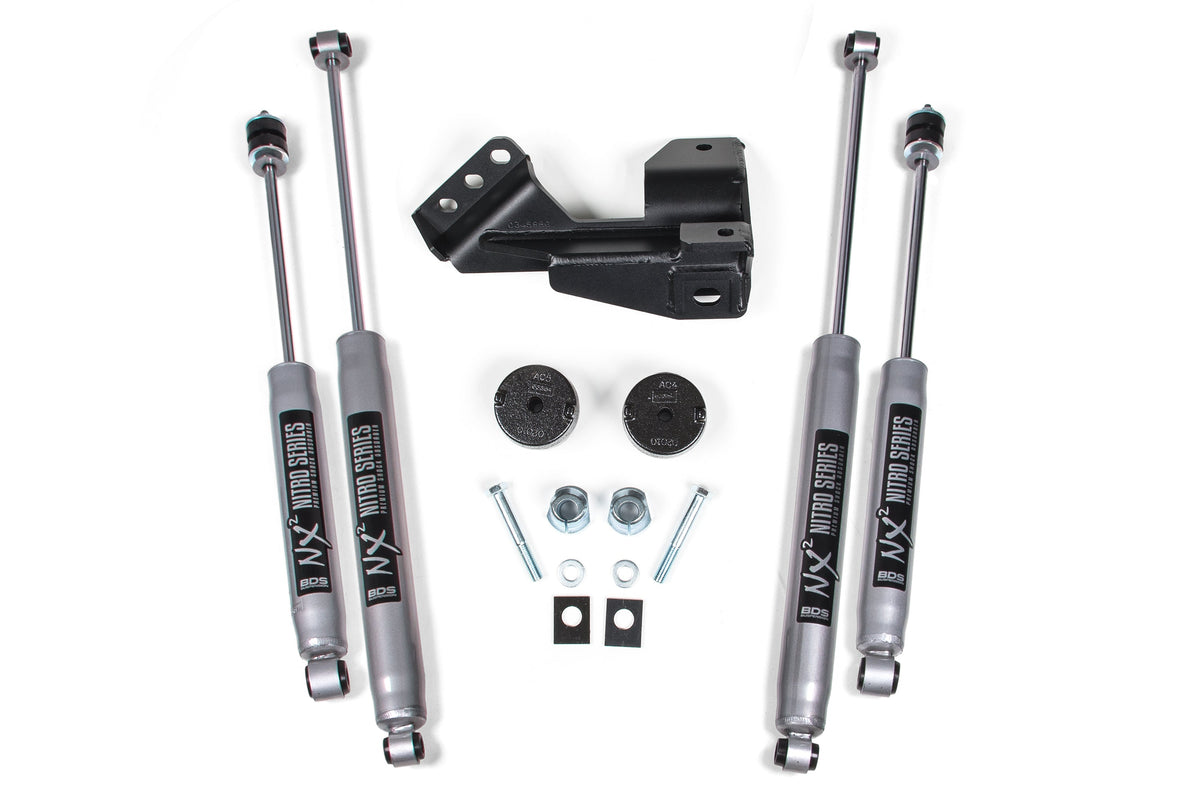

| NX2 Nitro Series |
BDS1519H |
Yes |
one BDS013202, 2017 Super Duty 2 Inch Front Spacer Box Kit
two BDS85710, Shock- 22.50 x 13.50 x 2-3/8 - S50/EB2
two BDS85717, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 |
Fits:
- 2017-2019 Ford F-250 Super Duty
- 2017-2019 Ford F-350 Super Duty
Part #: BDS1519FS, BDS1519H
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
