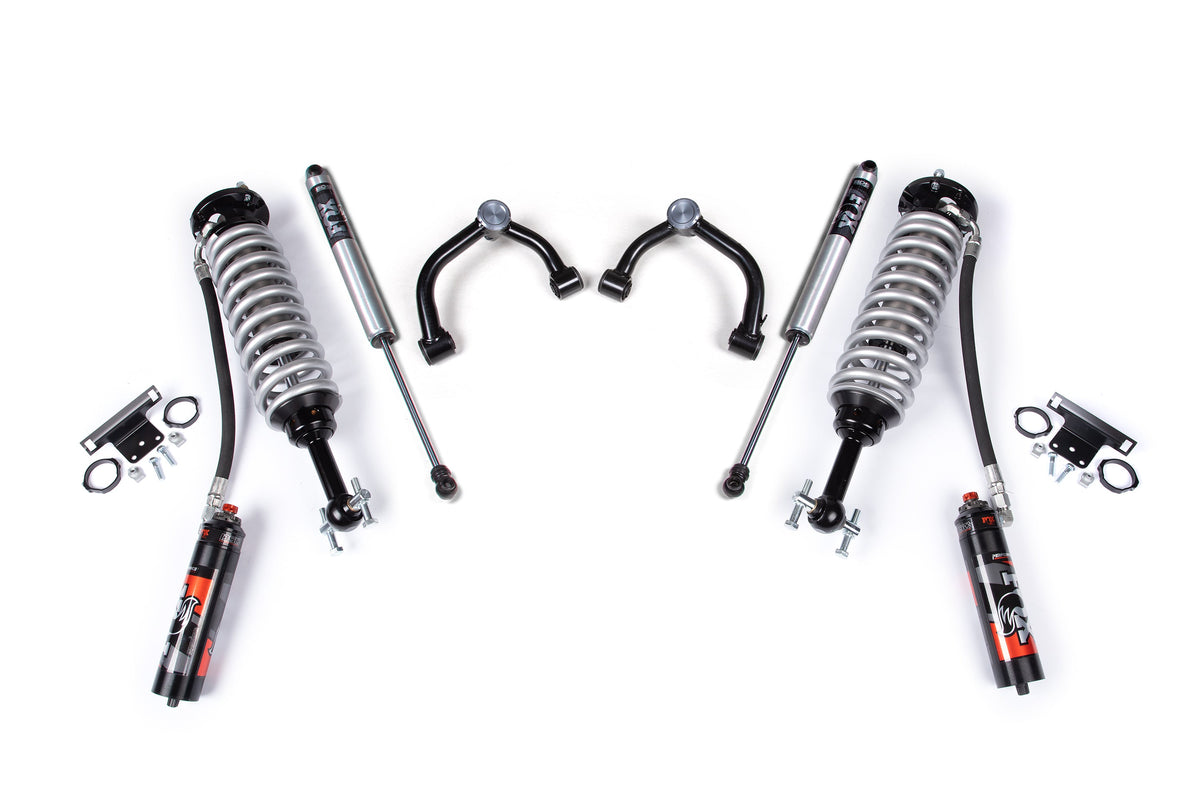

Level out your 2021-2026 Ford F150 truck and improve the ride with this 2.5 inch performance suspension system featuring FOX Performance Elite Series 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
Up front the lift kit includes FOX Performance Elite Series 2.5 coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX shocks for the smoothest ride.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

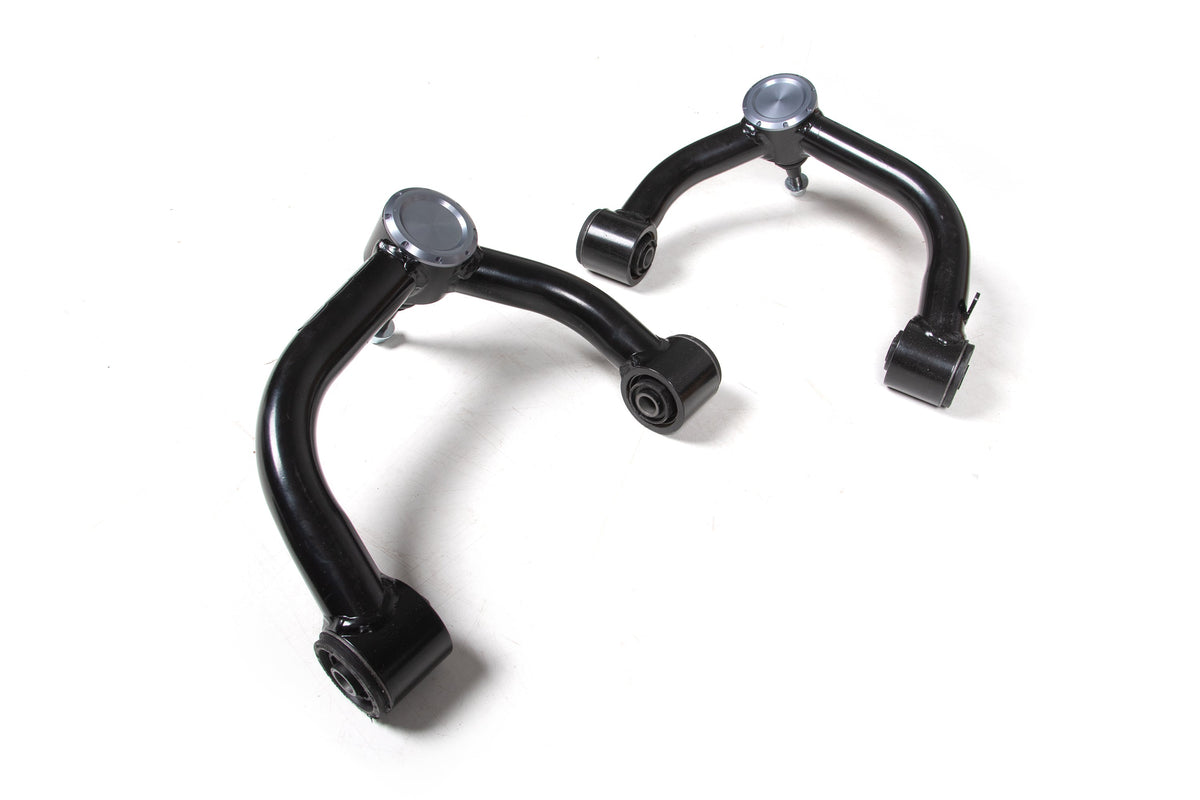

HD Upper Control Arms
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Details:
Specifications:
- Lift Height: 2.0 Inch
- Front Lift Height: 2.0 Inch
- Rear Lift Height: 0.0 Inch
- Drive: 4WD
- Fuel Type: Gas
- Lift Type: Coilover/UCA
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |

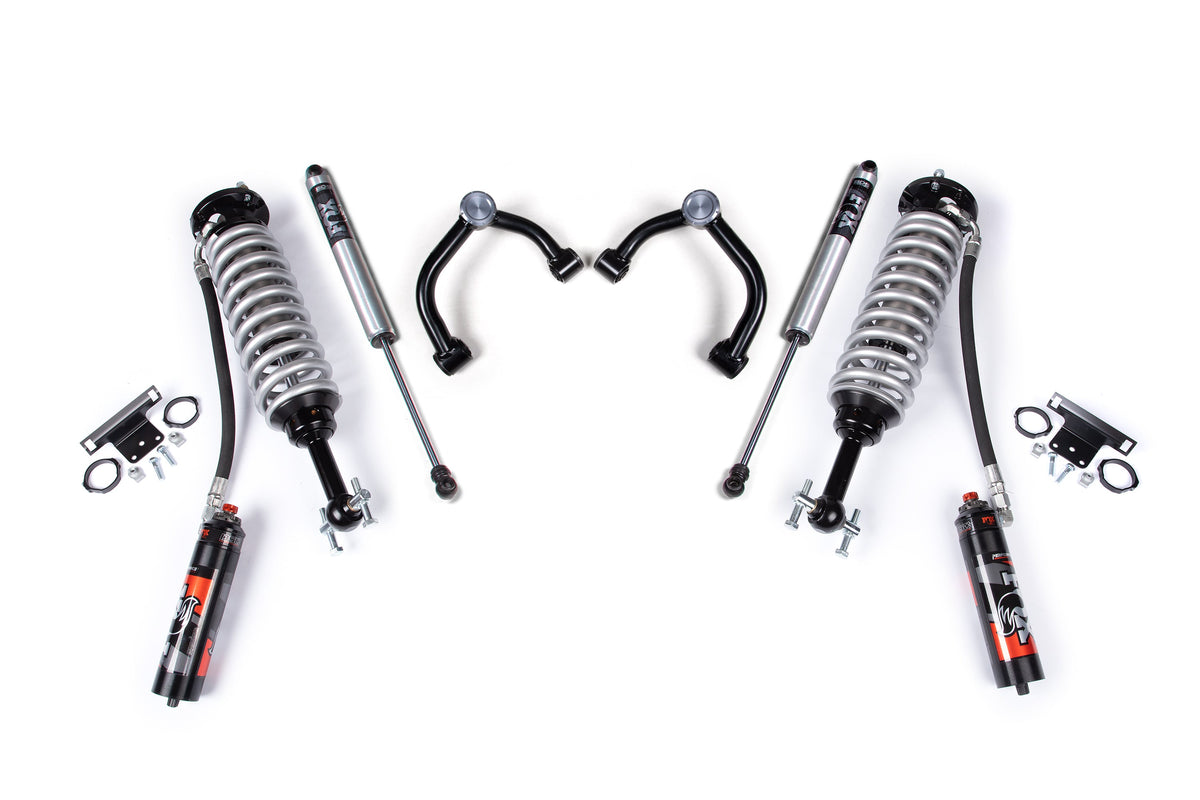

| FOX 2.0 Performance Series / Yes, I have a UCA headlight Sensor. |
BDS1913FPE |
Yes |
BDS123262, FOX88306199, FOX98524265 (x2) |

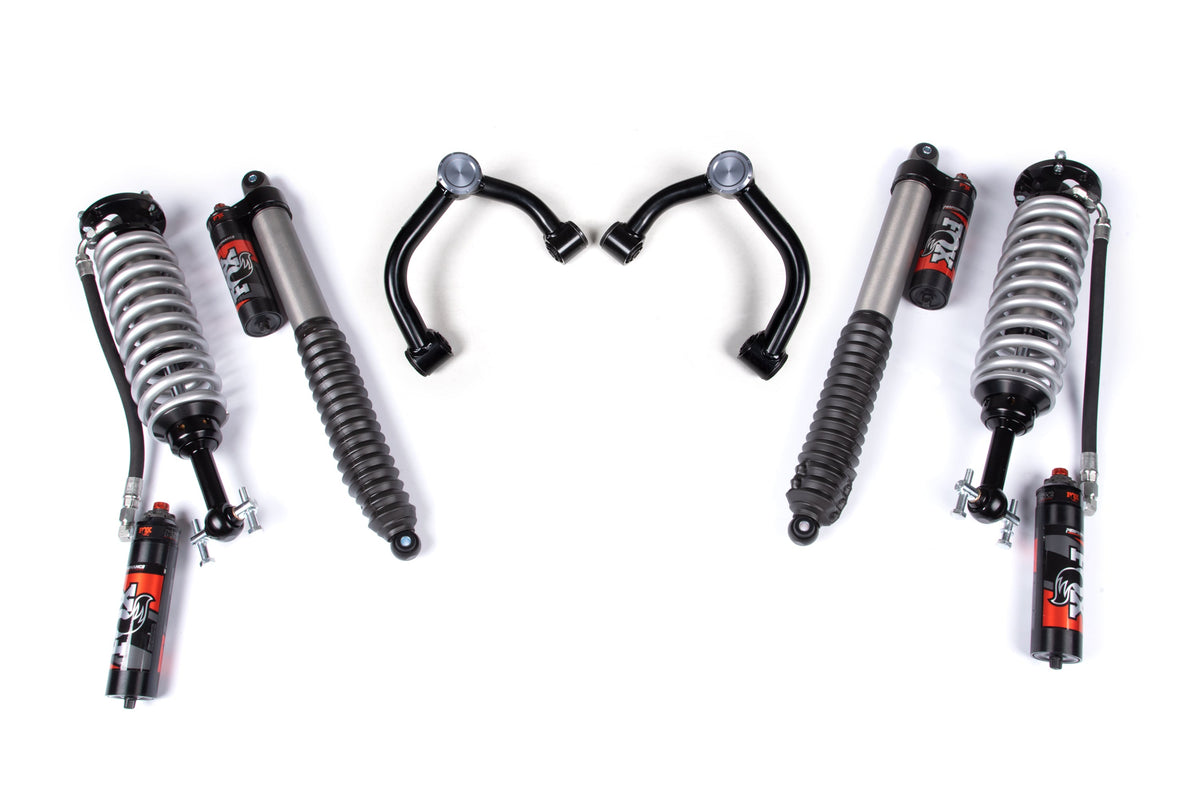

| FOX 2.5 Performance Elite / Yes, I have a UCA headlight Sensor. |
BDS1914FPE |
Yes |
BDS123262, FOX88306199, FOX88326122 |
Fits:
Part #: BDS1913FPE, BDS1914FPE
