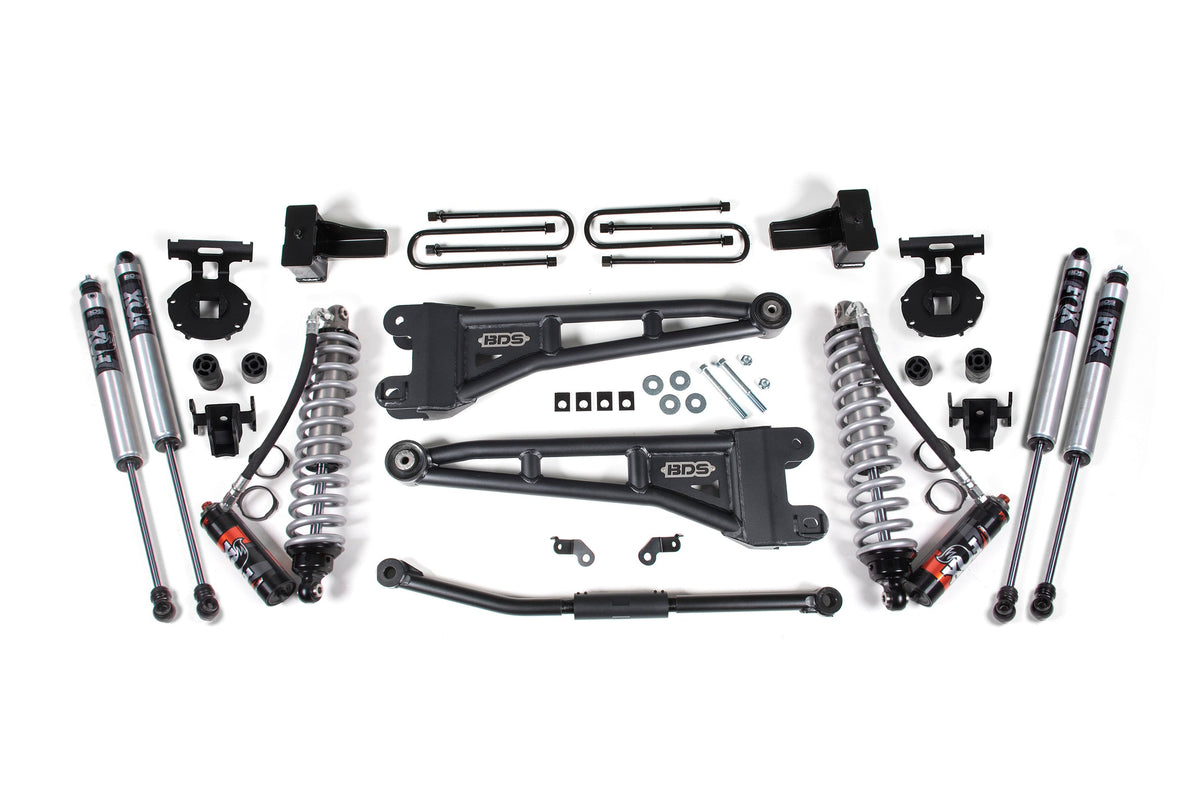

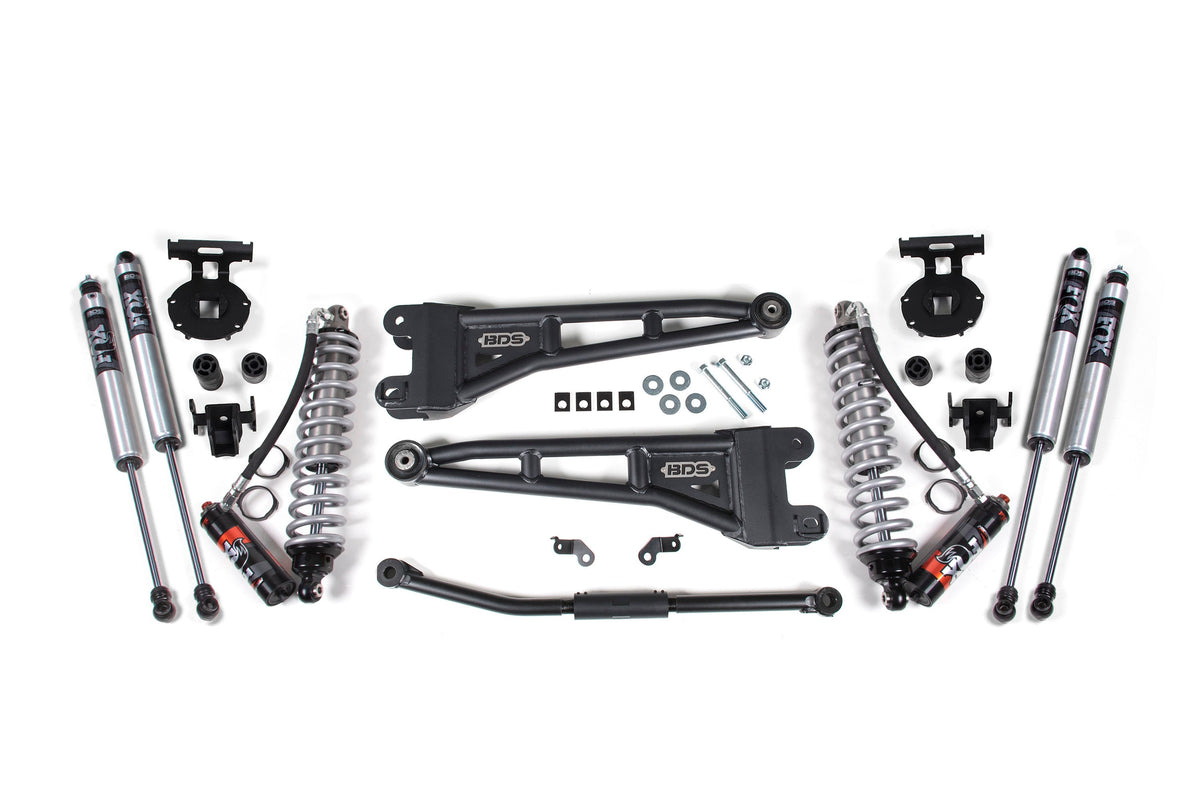

BDS Suspension raises the bar with this 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coil-over shocks for 2011-216 Ford F250 and F350 Super Duty diesel powered truck.
Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of FOX Performance shocks.
FOX Performance Elite Coil-OverFOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius ArmsIn place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
HD Adjustable Track BarMaintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
Features & Benefits
Recommended Tires & Wheels
Rear Lift Option
Features:
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
- (Trimming may be required)
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
- 4 Inch Block Kit
- 5 Inch Block Kit
- No Block
Specifications:
- Lift Height: 2.5 Inch
- Front Lift Height: 2.5 Inch
- Drive: 4WD
- Fuel Type: Diesel
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Options & Part Numbers:
| Option |
Part # |
Shocks Included |
What's in the Box |
| 4 Inch Block Kit |
BDS1509FPE |
Yes |
one BDS013255, 2011-2015 F250 2.5in Front Box Kit
one BDS013408, 2011-15 F250 4in Rear Block Kit
one BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch)
one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
one FOX88406426, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2.5 inch Lift, Dual Speed Compression Adjust
two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 |
| 5 Inch Block Kit |
BDS1926FPE |
Yes |
one BDS013255, 2011-2015 F250 2.5in Front Box Kit
one BDS013519, 2005-up Ford F250/F350 5in Rear Block
one BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch)
one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
one FOX88406426, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2.5 inch Lift, Dual Speed Compression Adjust
two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 |
| No Block |
BDS1928FPE |
Yes |
one BDS013255, 2011-2015 F250 2.5in Front Box Kit
one BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch)
one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair
one FOX88406426, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2.5 inch Lift, Dual Speed Compression Adjust
two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 |
Fits:
- 2011-2016 Ford F-250 Super Duty
- 2011-2016 Ford F-350 Super Duty
Part #: BDS1509FPE, BDS1926FPE, BDS1928FPE
