BDS Suspension 2.5 Inch Lift Kit w/ Radius Arm Ford F250/F350 Super Duty 2011-2016 4WD Diesel

Improve the ride and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

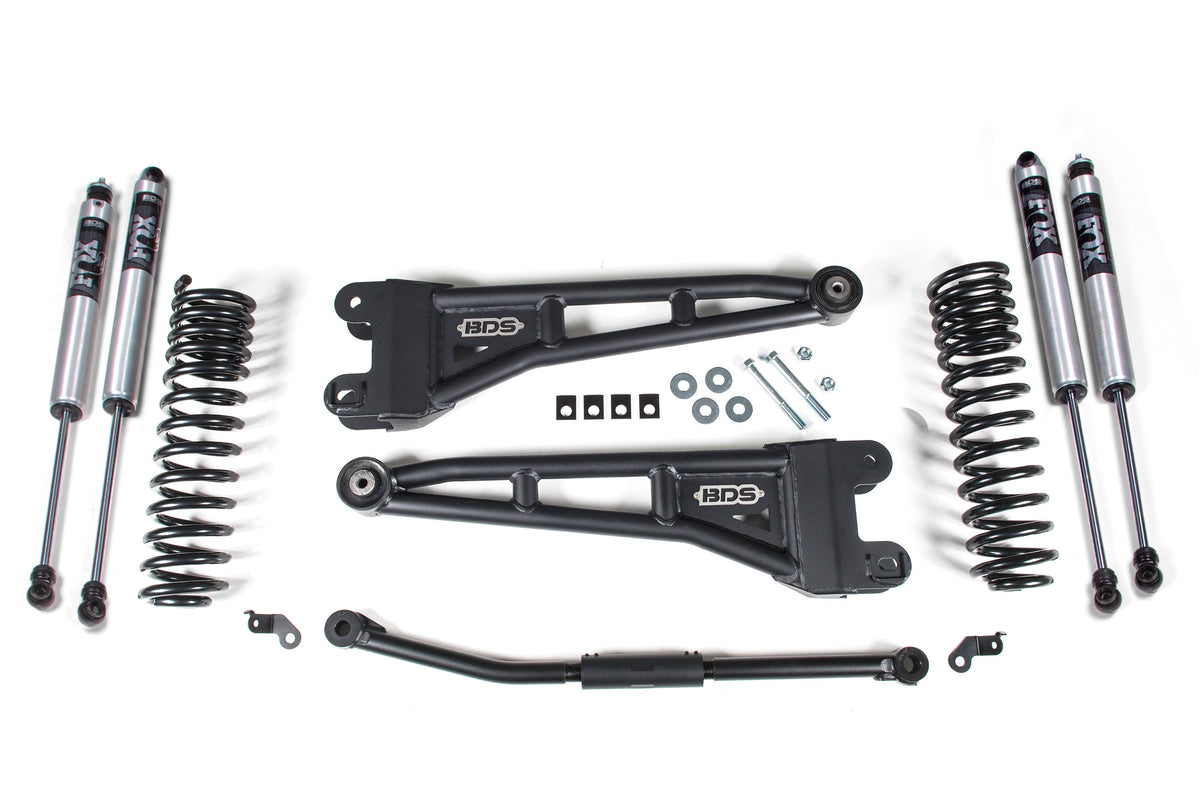

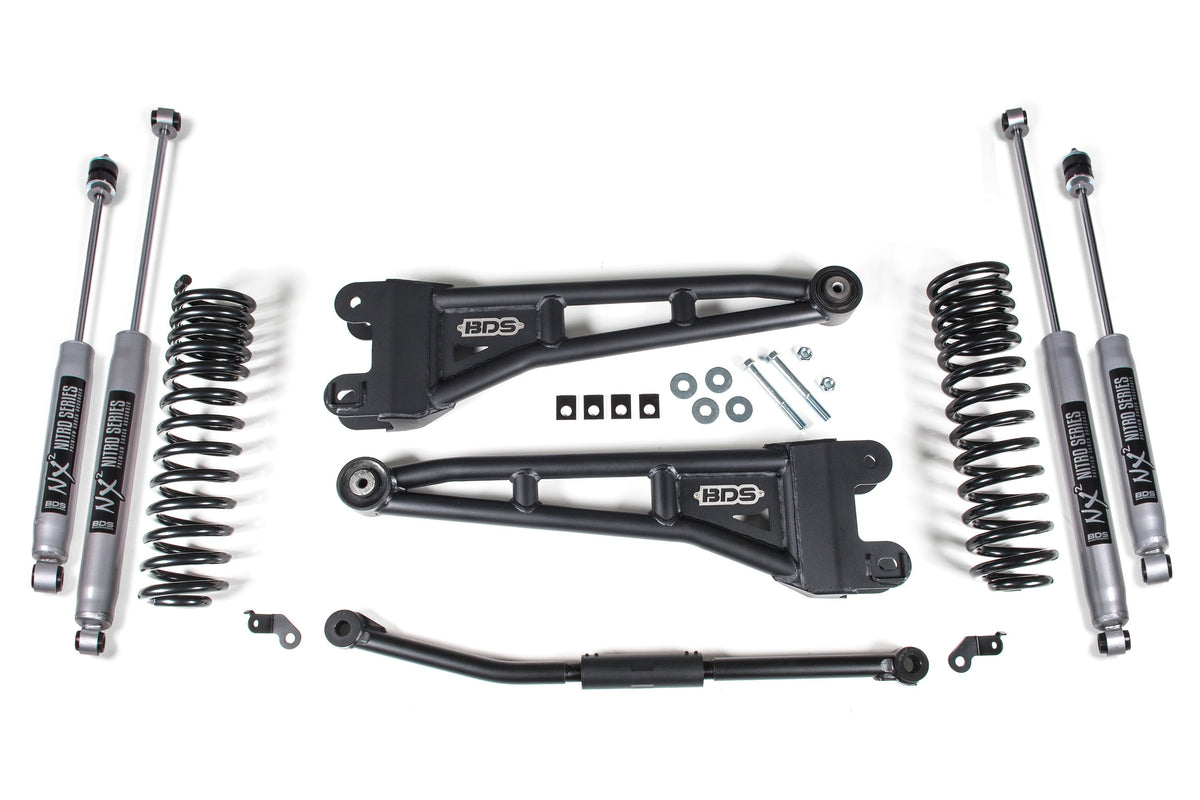

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks.

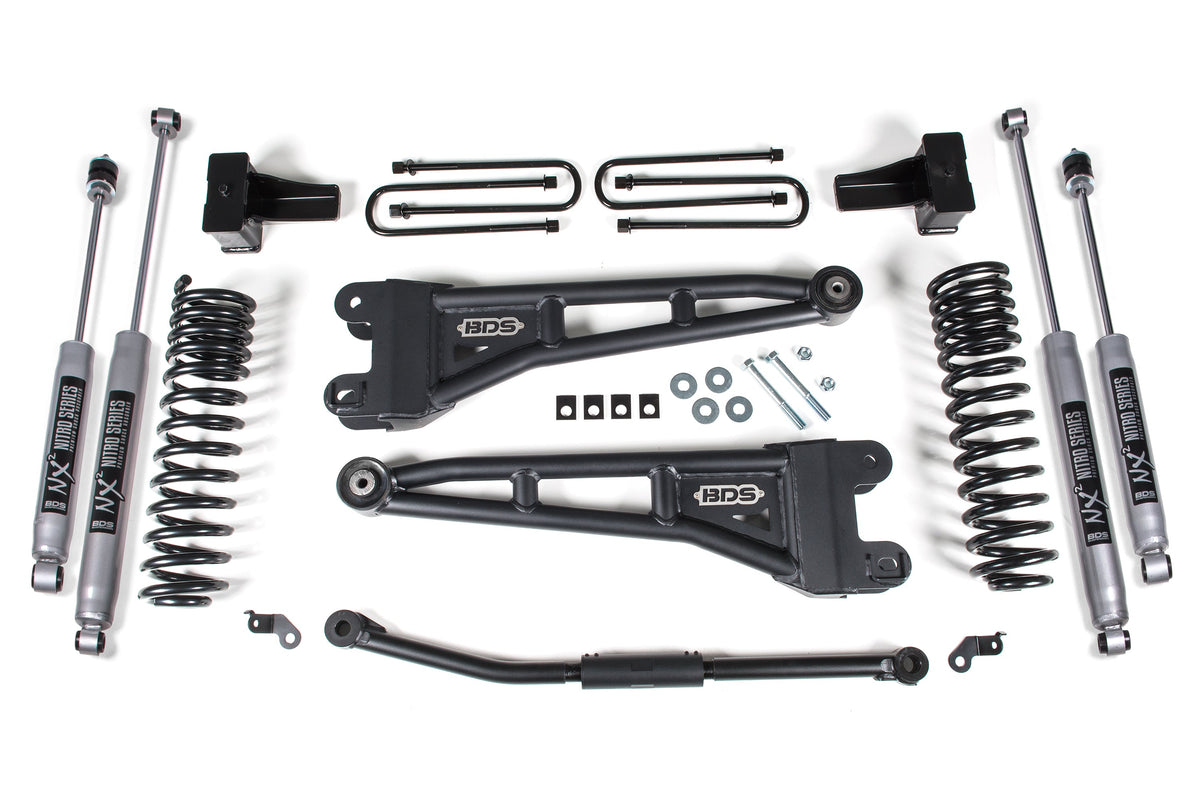

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil SpringsA pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track BarMaintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Features & Benefits

Recommended Tires & Wheels

Details:

Rear Lift Option

Level stance

FOX 2.0 Performance Series

Note:

Designed for Diesel models w/o top mounted overload rear springs U bolts for trucks with overloads required, part UBT4028 (Qty 4)Models equipped with a 3-3/4 inch rear block from the factory do not require a rear block kit in order to achieve a more level stance.For a more tail-high stance, substitute 013519 5 inch rear block kit

Features:

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• (Trimming may be required)
• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

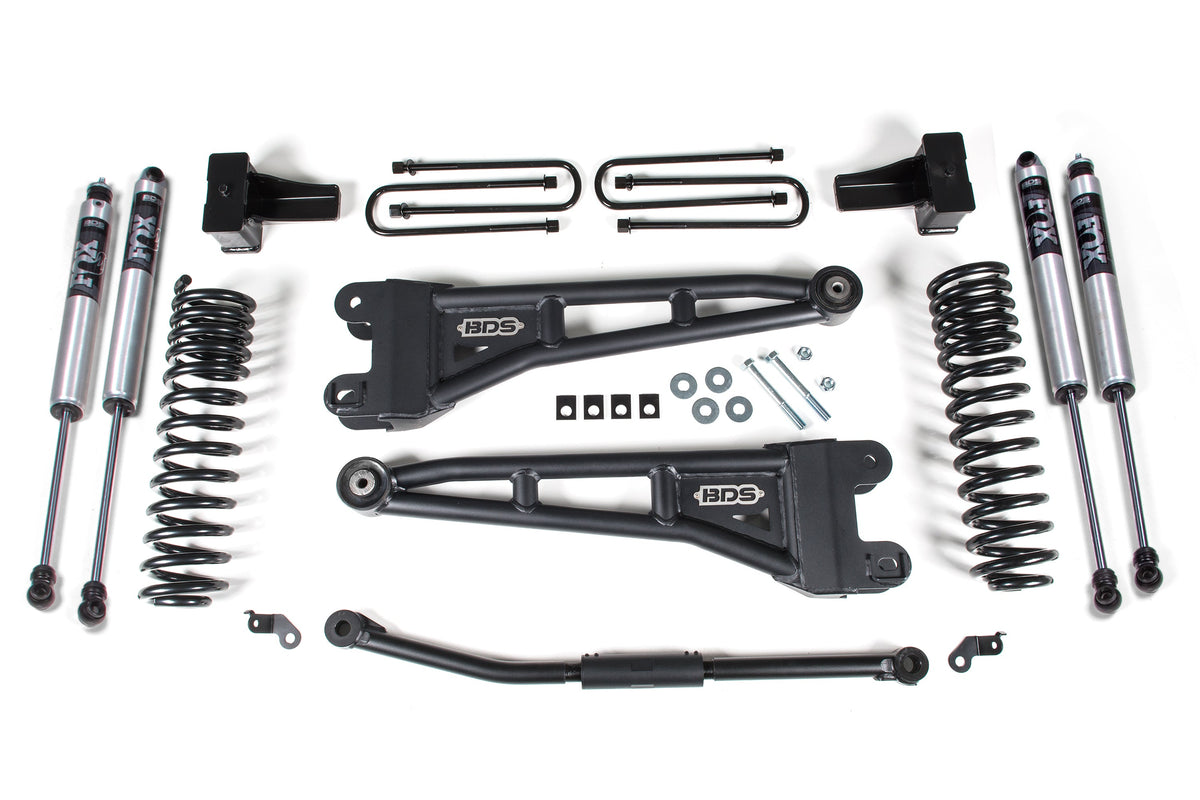

• 4 Inch Block Kit
• 5 Inch Block Kit
• Tail high stance
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish
• NX2 Nitro Series
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• Internal floating piston (Internal Floating Piston) monotube design
• No Block

Fitment Notes (from BDS):

• Designed for Diesel models w/o top mounted overload rear springs
• U bolts for trucks with overloads required, part# UBT4028 (Qty 4)
• Models equipped with a 3-3/4 inch rear block from the factory do not require a rear block kit in order to achieve a more level stance.
• For a more tail-high stance, substitute #013519 5 inch rear block kit

Specifications:

• Lift Height: 2.5 Inch
• Front Lift Height: 2.5 Inch
• Drive: 4WD
• Fuel Type: Diesel
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Options & Part Numbers:

Fits:

• 2011-2016 Ford F-250 Super Duty
• 2011-2016 Ford F-350 Super Duty

Part #: BDS1509FS, BDS1509H, BDS1926FS, BDS1926H, BDS1928FS, BDS1928H
