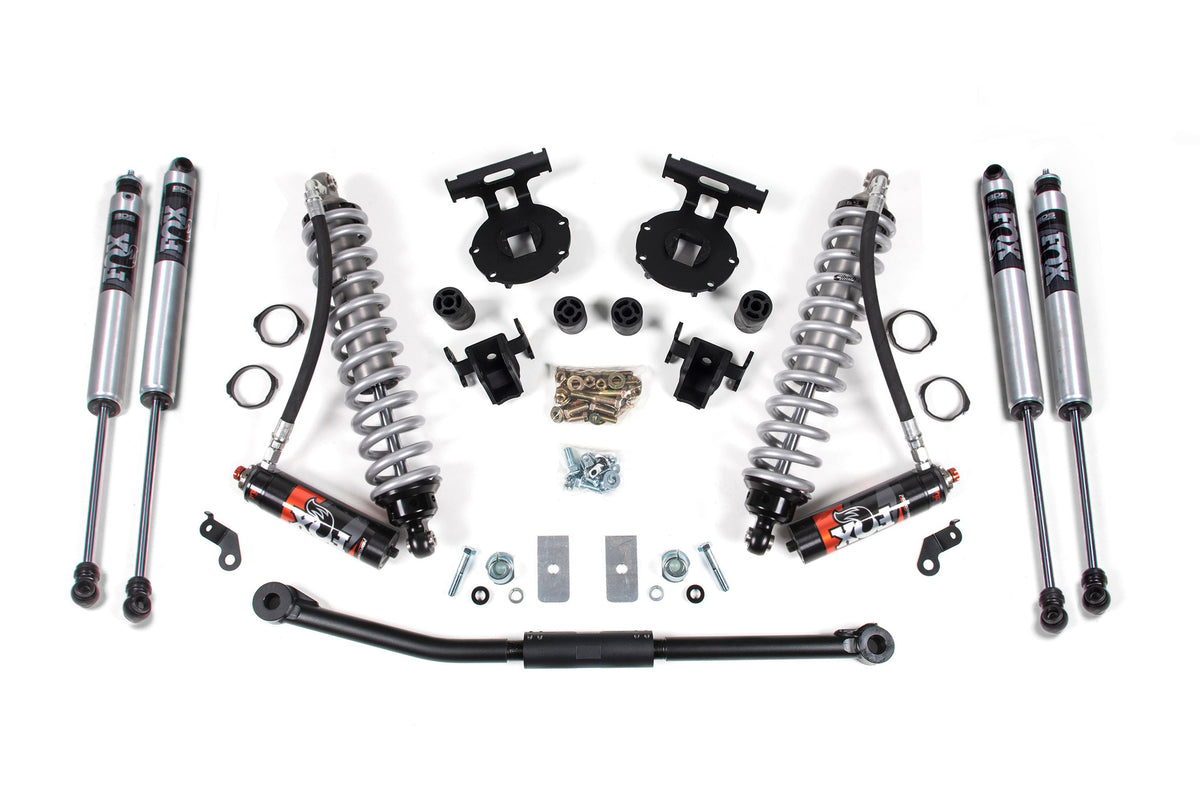

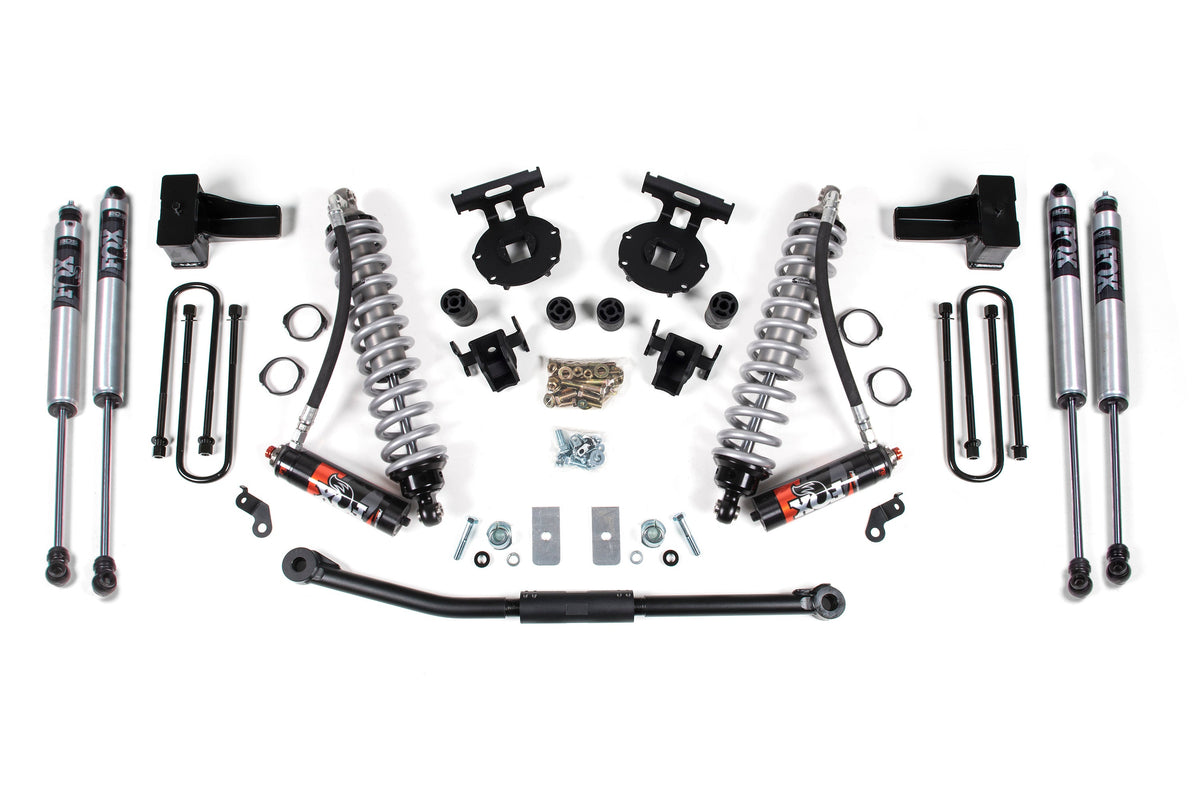

BDS Suspension 2.5 Inch Lift Kit FOX 2.5 Performance Elite Coilover Conversion Ford F250/F350 Super Duty 2011-2016 4WD Diesel

Improve the ride, up the ante, and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit and FOX Performance Elite coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

FOX Performance Elite Coil-OverFOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Adjustable Track BarMaintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Features & Benefits

FOX 2.5 Coil-Over mounts in factory coil bucket locationAdds additional secondary FOX 2.0 shock for max performanceEibach coil springs ride smooth through the roughest terrainAdjustable solid steel track bar designed to recenter the front axleFabricated steel blocks provide level stance from front to rearFOX shocks are fully serviceable and resistant to corrosion and harsh environments.Recommended Tires & Wheels

Rear Lift Option

Features:

• (Trimming may be required)
• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace
• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Fitment Notes (from BDS):

• Exhaust modification may be required to clear the front driveshaft (gas only)
• Front bumper spacer kit may be required to run 38 inchx15.50 inch Tires
• Although extremely rare, front driveline vibration may occur
• If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (123406) will be required
• Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
• If equipped with a rear sway bar, 123009 is required.
• U-bolts will not work on dually.
• Front auxiliary shocks can be omitted from kit - the system can be used with Coil Over installed alone

Specifications:

• Lift Height: 2.5 Inch
• Front Lift Height: 2.5 Inch
• Fuel Type: Diesel
• Lift Type: Radius Arm
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
• Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Options & Part Numbers:

Fits:

• 2011-2016 Ford F-250 Super Duty
• 2011-2016 Ford F-350 Super Duty

Part #: BDS1510FPE, BDS1925FPE, BDS1927FPE
