BDS Suspension 2.5 Inch Lift Kit Ford F250/F350 Super Duty 2011-2016 4WD Diesel
-
Free shipping on orders over $100
-
Secure payments
- Available
Improve the ride and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Adjustable Track BarMaintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
Features & Benefits
Recommended Tires & Wheels
Rear Lift Option
FOX 2.0 Performance Series
Notes:Designed for Diesel models w/o top mounted overload rear springsModels equipped with a 3-3/4 inch rear block from the factory do not require a rear block kit in order to achieve a more level stance.For a more tail-high stance, substitute 013519 5 inch rear block kit
Features:
Specifications:
Options & Part Numbers:
| Option | Part # | Shocks Included | What's in the Box |
|---|---|---|---|

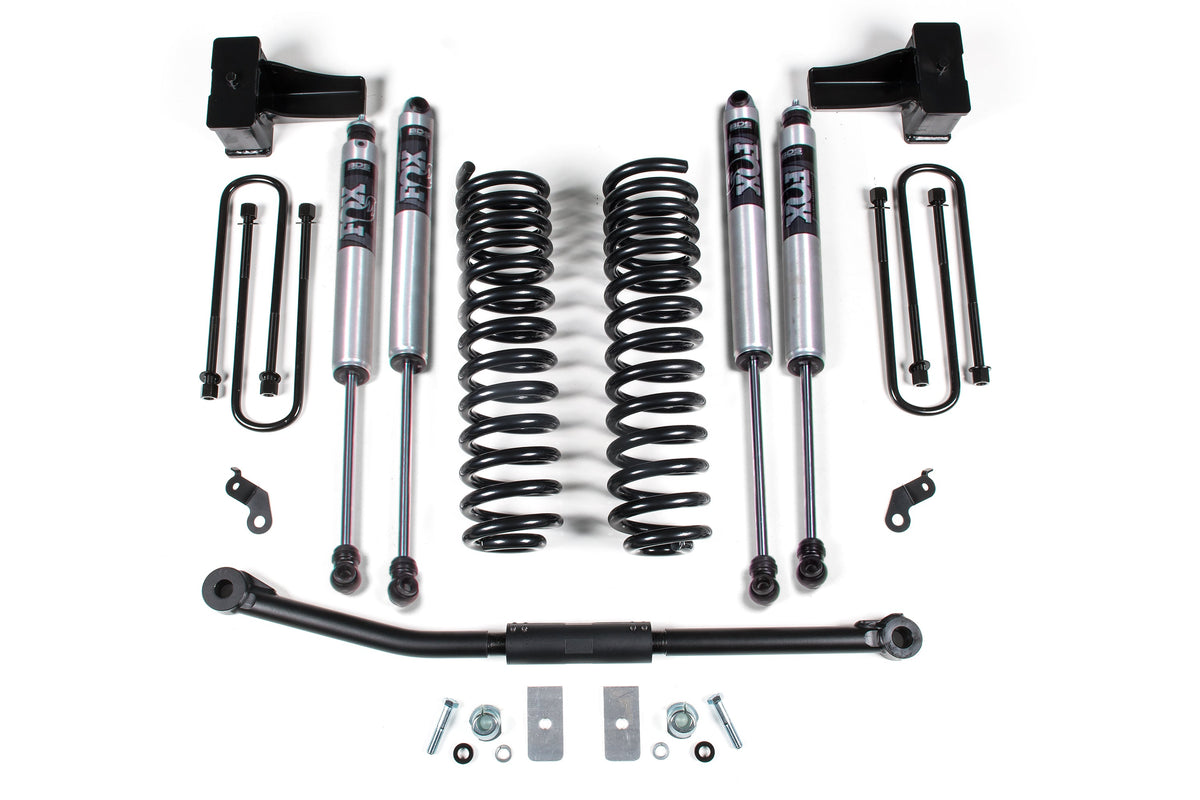

| 4 Inch Block Kit / FOX 2.0 Performance Series | BDS1510FS | Yes | one BDS013254, 2005-15 F250 2.5in Front Box Kit one BDS013408, 2011-15 F250 4in Rear Block Kit one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1 two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 |

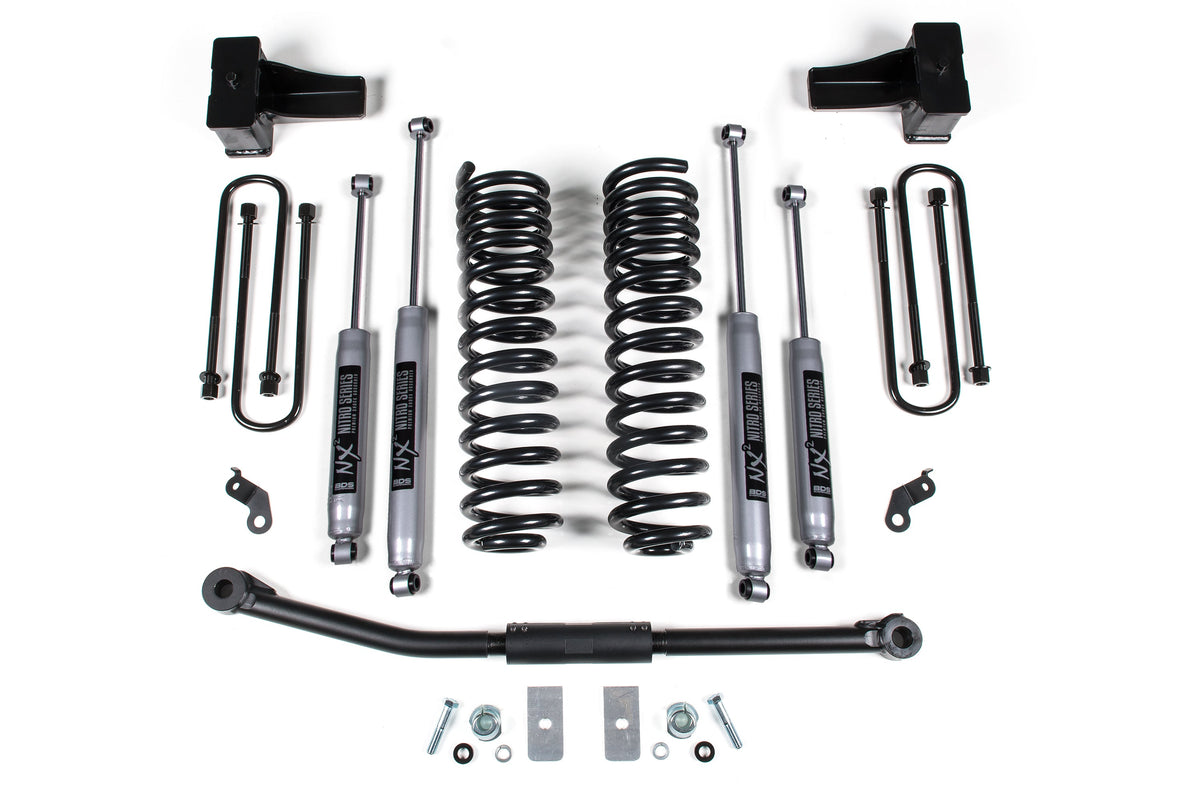

| 4 Inch Block Kit / NX2 Nitro Series | BDS1510H | Yes | one BDS013254, 2005-15 F250 2.5in Front Box Kit one BDS013408, 2011-15 F250 4in Rear Block Kit one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair two BDS85713, Shock- 23.5 x 14.2 x 2-3/8 - S50/EB2 two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |
| 5 Inch Block Kit / FOX 2.0 Performance Series | BDS1925FS | Yes | one BDS013254, 2005-15 F250 2.5in Front Box Kit one BDS013519, 2005-up Ford F250/F350 5in Rear Block one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1 two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 |
| 5 Inch Block Kit / NX2 Nitro Series | BDS1925H | Yes | one BDS013254, 2005-15 F250 2.5in Front Box Kit one BDS013519, 2005-up Ford F250/F350 5in Rear Block one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair two BDS85713, Shock- 23.5 x 14.2 x 2-3/8 - S50/EB2 two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 |

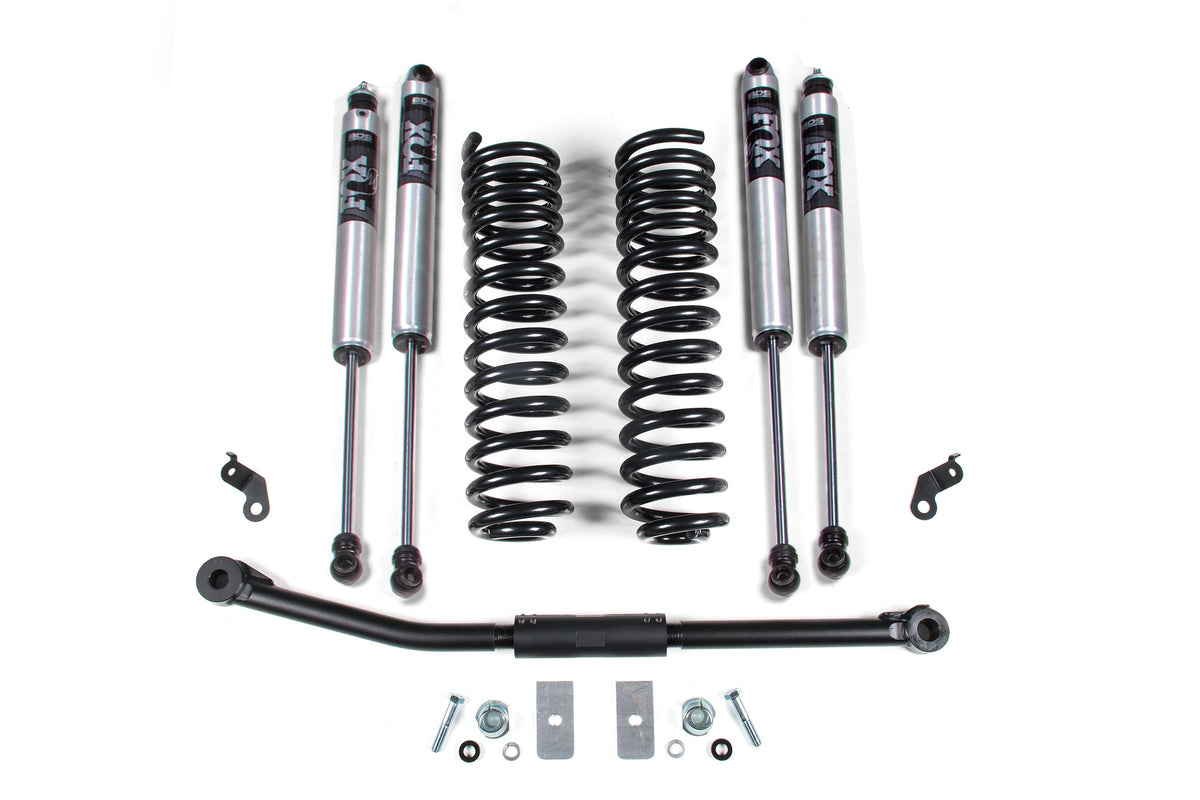

| No Block / FOX 2.0 Performance Series | BDS1927FS | Yes | one BDS013254, 2005-15 F250 2.5in Front Box Kit one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1 |

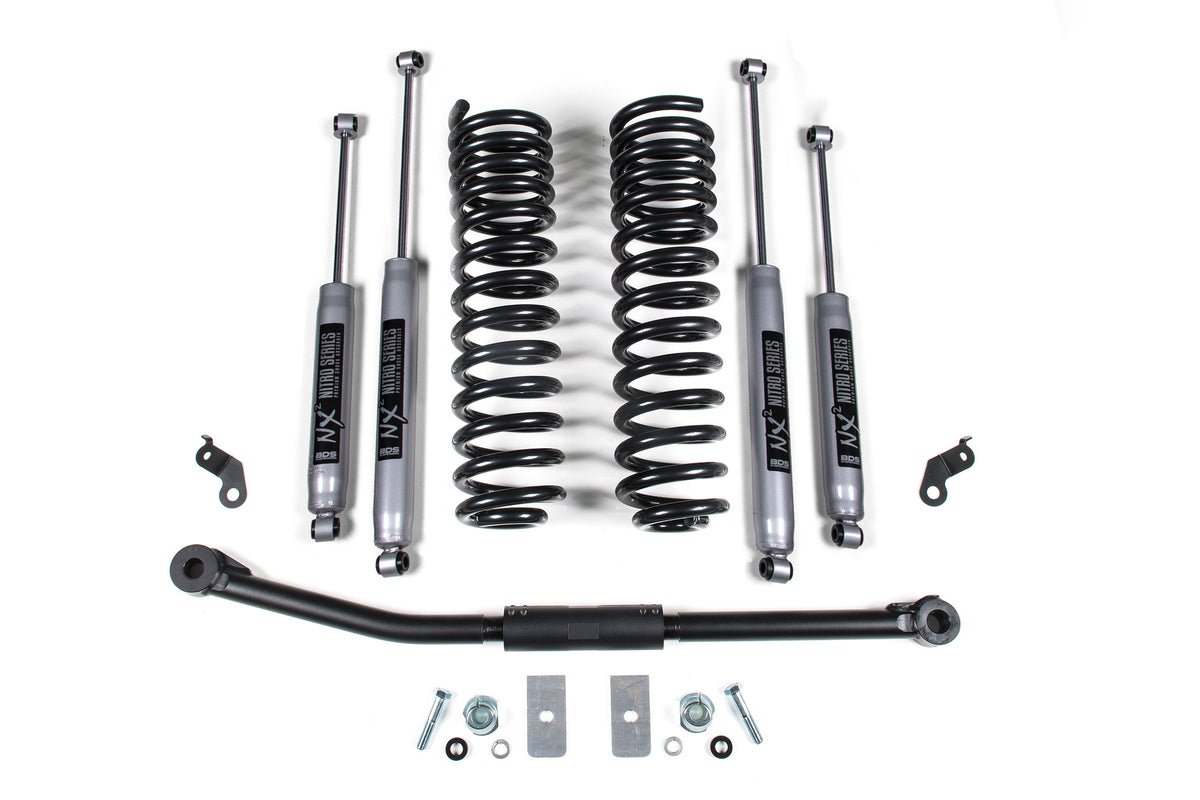

| No Block / NX2 Nitro Series | BDS1927H | Yes | one BDS013254, 2005-15 F250 2.5in Front Box Kit one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 two BDS85713, Shock- 23.5 x 14.2 x 2-3/8 - S50/EB2 |
Fits:
Part #: BDS1510FS, BDS1510H, BDS1925FS, BDS1925H, BDS1927FS, BDS1927H
