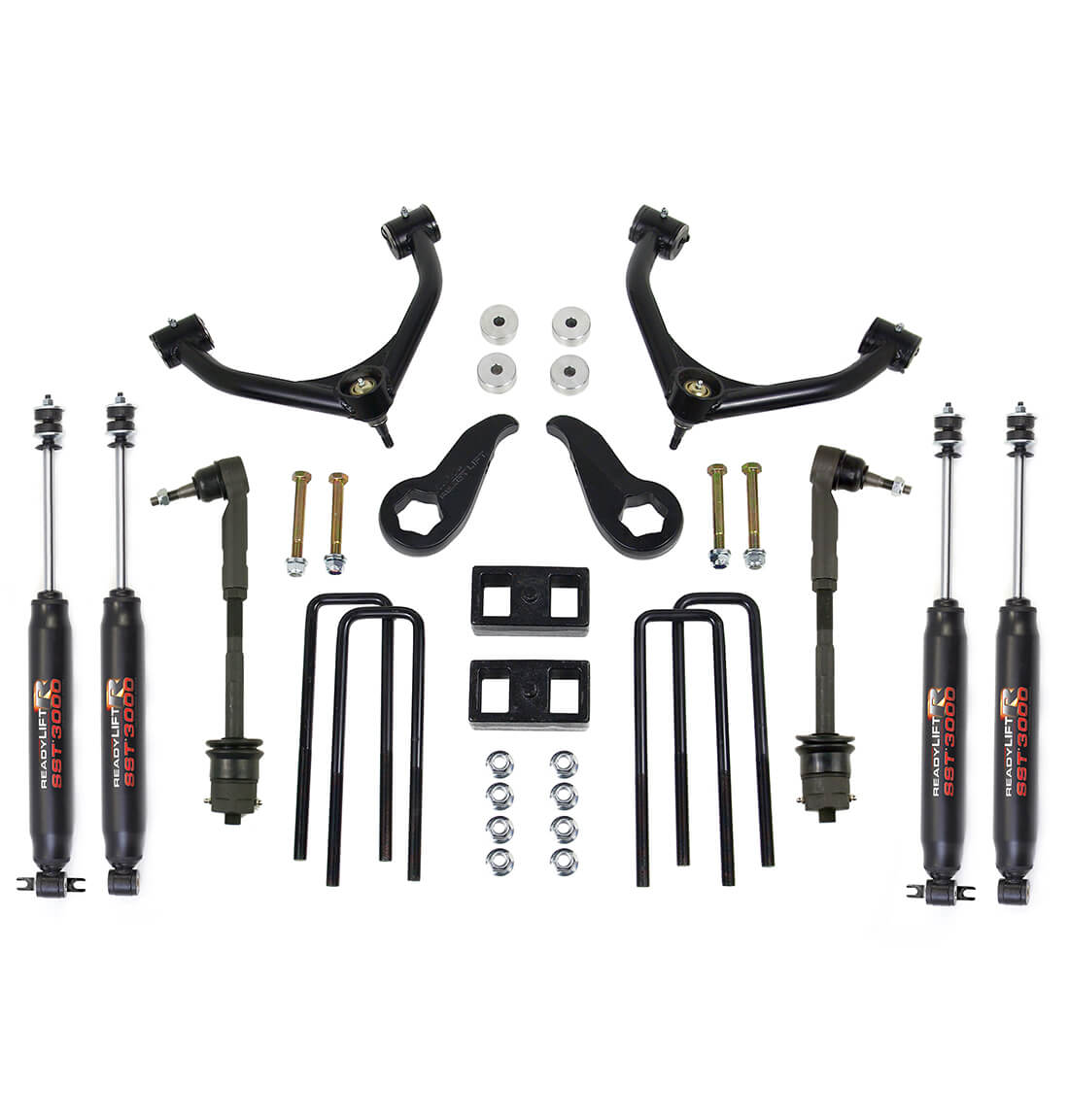

ReadyLIFT Suspension's 69-3522 SST Lift Kit is designed for 2011-2019 Chevy and GMC 3500HD trucks, offering a cost-effective, bolt-on lift solution without permanent modifications. Suitable for trucks with Single Rear Wheels and Factory Tow Package Leaf Springs or Dually Rear Wheels, this kit is incompatible with trucks having top-mounted overload springs.
The kit elevates the front of the truck by up to 3.5 inches and includes a 2.0-Inch rear lift block for added rake during towing and hauling, making it ideal for the 2011-2018 3500HD models. It features heavy-duty tubular steel upper Control Arms, 2011-2019 3500HD-specific lift-oriented forged torsion keys for adjustable lift while maintaining factory ride quality, and unique indexing.
The kit also contains CNC-machined differential drop spacers for 4WD trucks to maintain safe factory angle for front CV axles (not used in 2WD trucks), and OEM style 2.0-Inch cast iron rear lift blocks with new U-bolts and hardware for rear elevation. The SST3000 Performance Shocks are included for enhanced performance.
Additionally, it comes with new super strong tie-rod end assemblies, replacing weaker factory versions for improved steering strength. This kit allows for up to a 34-inch tall tire and provides a raised stance with robust components, specifically tailored for new GM HD trucks.
Features and Benefits:
- 3.5-Inch lift for 2011-2019 GM 3500 HD trucks
- Max lift of 3.5-Inch in the front and 2.0-Inch in the rear
- Compatible with single rear wheel with tow package springs or dual rear wheels
- Not suitable for vehicles with top mounted overload leaf springs
- Includes SST3000 shocks for improved performance
- Comes with 2.0-Inch rear lift block for towing applications
- Forged torsion keys with shock extensions for durability
- No cutting or welding of OEM parts required
- Maintains factory ride quality
- All necessary components included in the kit
Details:
- Fitment: Direct Fitment
- Front Lift Component: Spacer
- Front Lift Height: 3.5 Inch
- Front Shocks: SST3000
- Front or Rear: Front and Rear
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 3.5 Inch
- Max Tire Size: 34 Inch
- Rear Lift Component: Block and U-bolt
- Rear Lift Height: 2.0 Inch
- Rear Shocks: SST3000
- Shocks Included: Yes
Part #: 69-3522
