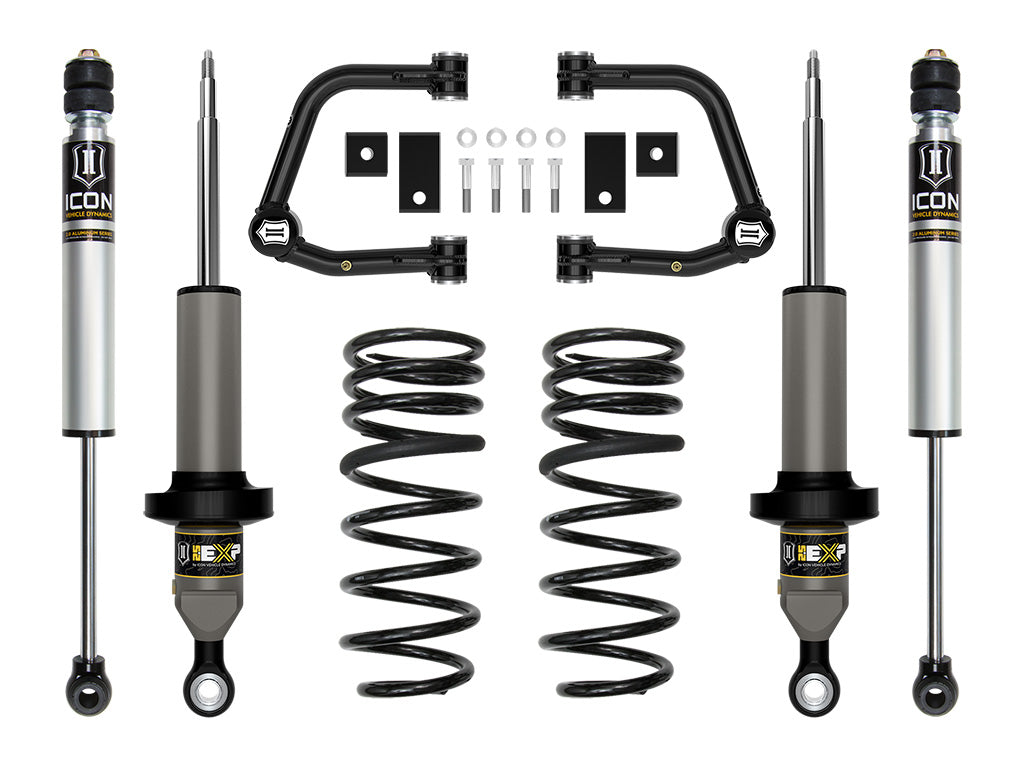

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2023-2026 Toyota Sequoia builds on ICON's 2.5 EXP Shock Kit with the addition of tubular front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.
This Stage 2 system features the 2023-2026 Toyota Sequoia EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Sequoia’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2023-2026 Toyota Sequoia with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear.

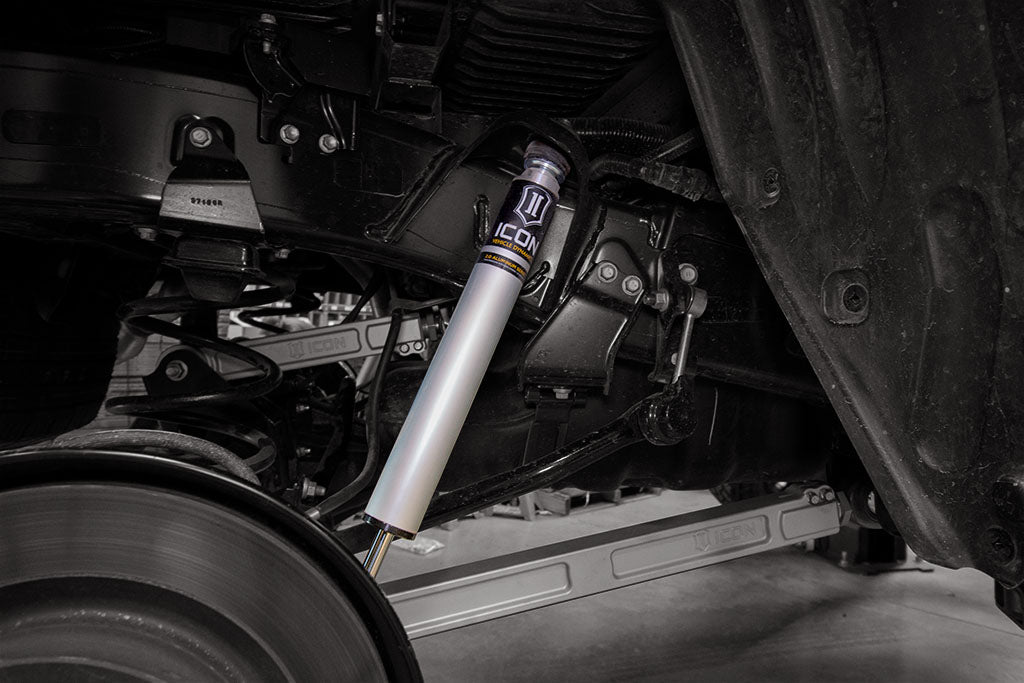

Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023-2026 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Specifications:
- Lift height: 0-2.13"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Up to 35x12.50" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2025-2026 Toyota Sequoia: 1794 Edition (Coil rear springs, Front and Rear) — Also Requires Part Number 55156; Raises Rear 2"; Raises Front 0" - 2.13"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2025-2026 Toyota Sequoia: 1794 Edition (Coil rear springs, Front and Rear) — Also Requires Part Number 55164; Raises Front 0"; Raises Rear 0"; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Capstone (4WD, Coil rear springs, Front and Rear) — Also Requires Part Number 55156; Raises Rear 2"; Raises Front 0" - 2.13"; without Adaptive Variable Suspension (AVS)
- 2023-2025 Toyota Sequoia: Capstone, Platinum (RWD, Coil rear springs, Front and Rear) — Raises Rear 2"; Raises Front 0" - 2.13"; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front and Rear) — Also Requires Part Number 55156; Raises Rear 2"; Raises Front 0" - 2.13"; without TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Front and Rear) — Also Requires Part Number 55164; Raises Front 0"; Raises Rear 0"; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (RWD, Front and Rear) — Raises Rear 2"; Raises Front 0" - 2.13"
- 2023 Toyota Sequoia: Platinum (4WD, Coil rear springs, Front and Rear) — Also Requires Part Number 55156; Raises Rear 2"; Raises Front 0" - 2.13"; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Coil rear springs, Front and Rear) — Also Requires Part Number 55156; Raises Rear 2"; Raises Front 0" - 2.13"; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Coil rear springs, Front and Rear) — Also Requires Part Number 55164; Raises Front 0"; Raises Rear 0"; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2026 Toyota Sequoia: SR5 TRD Off-Road (Front and Rear) — Also Requires Part Number 55164; Raises Front 0"; Raises Rear 0"
- 2023 Toyota Sequoia: TRD Off-Road (Front and Rear) — Also Requires Part Number 55164; Raises Front 0"; Raises Rear 0"
Part #: K53232T
