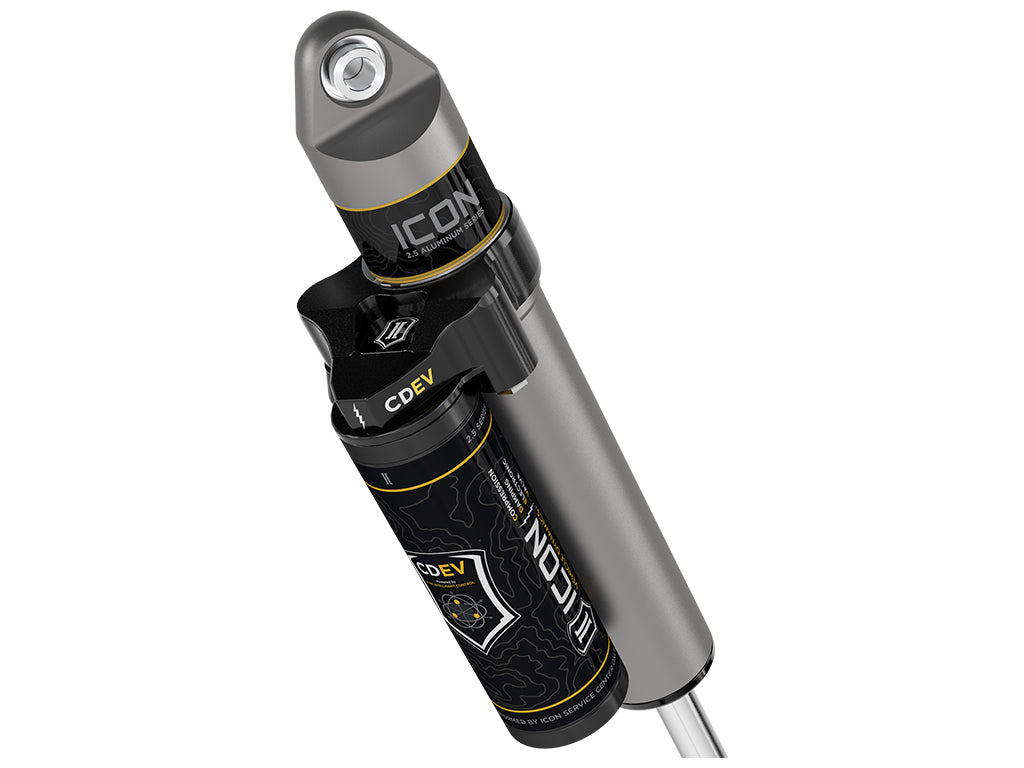

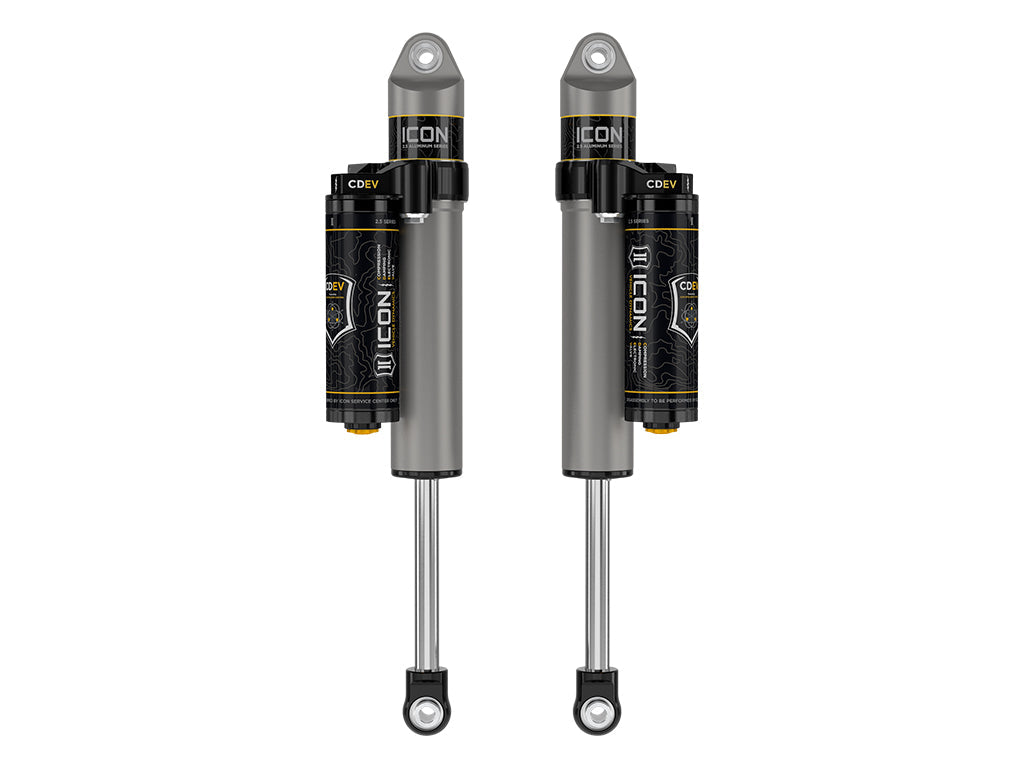

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Specifications:
- Lift height: 0-1"
- Position: Rear
- Shock series: 2.5 Series
- Travel: 10.00"
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Requires iOS operated device to run ICON Intelligent Control App
Fits:
- 2023-2026 Chevrolet Colorado: LT, WT, Z71 (Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 73000 and Number 71671E
- 2023-2026 Chevrolet Colorado: Trail Boss (Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 73000 and Number 71670E
- 2023-2026 GMC Canyon: AT4, Denali, Elevation (Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 73000 and Number 71670E
Part #: 77751EP
