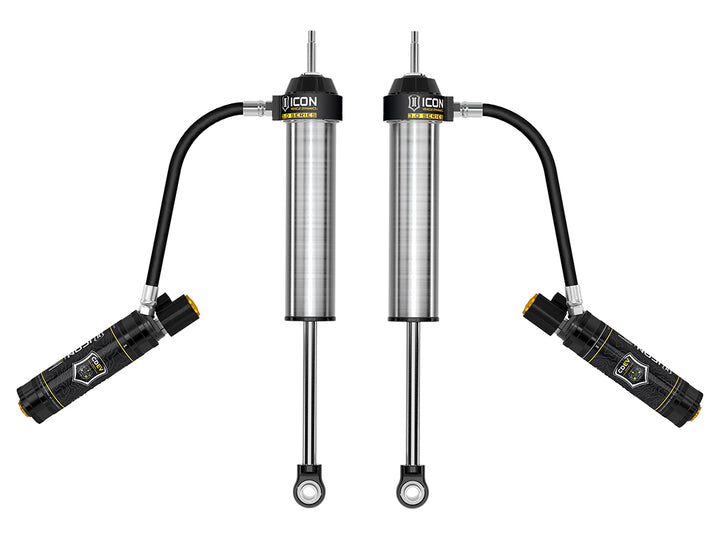

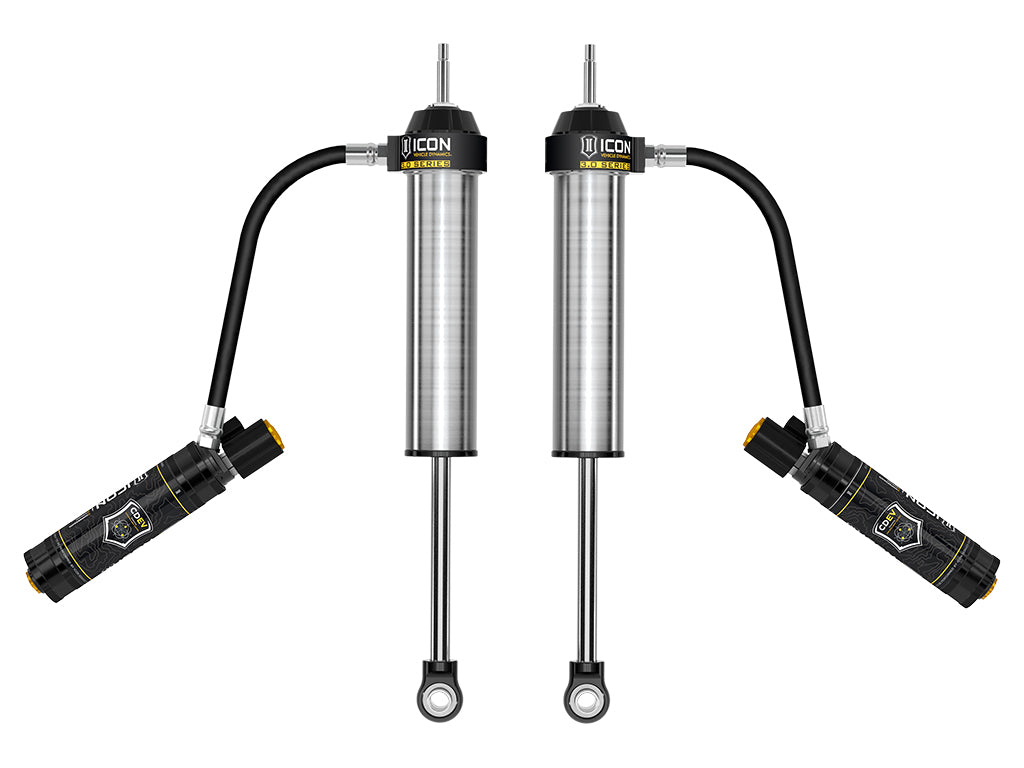

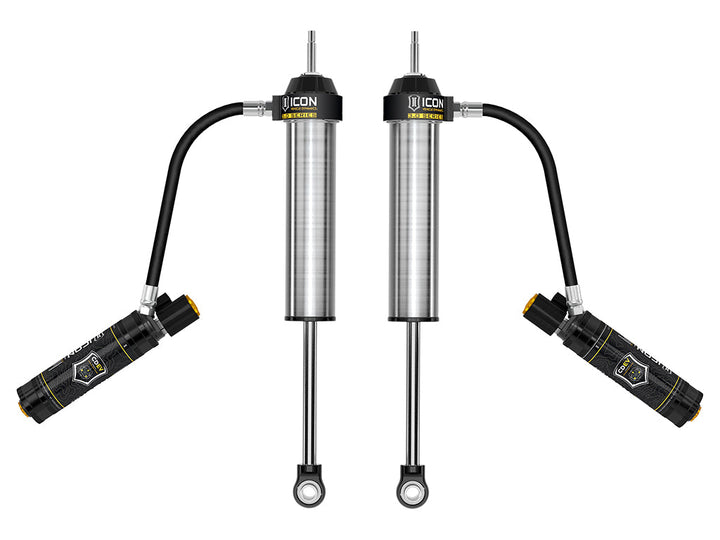

ICON's 3.0 Series Rear Shocks with CDEV for 2022-2026 Toyota Tundra/2023-2026 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or up to 4" of rear lift on Sequoia.
3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use.

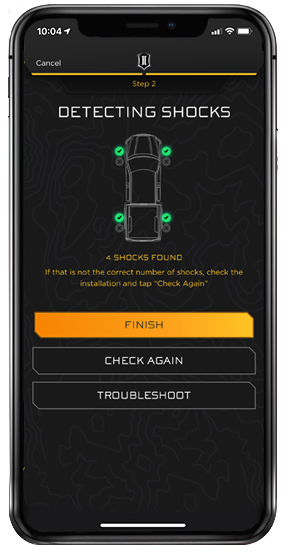

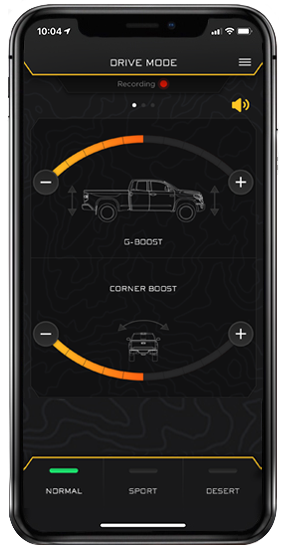

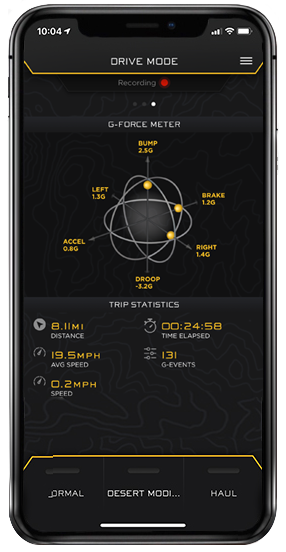

ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5” over stock on Tundra or up to 3" of rear lift on Sequoia, allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
Specifications:
- Lift height: 0-1.5"
- Position: Rear
- Shock series: 3.0 Series
Required to install (sold separately):
- Also Requires Part Number 53508
Installation notes:
- Requires iOS operated device to run ICON Intelligent Control App
Fits:
- 2025-2026 Toyota Sequoia: 1794 Edition (Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Off Road Package
- 2025-2026 Toyota Sequoia: 1794 Edition (Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Capstone (Coil rear springs) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (RWD, Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2024-2026 Toyota Sequoia: Platinum (4WD, Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023 Toyota Sequoia: Platinum (4WD, Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2025 Toyota Sequoia: Platinum (RWD, Rear) — with 4" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without Adaptive Variable Suspension (AVS)
- 2026 Toyota Sequoia: SR5 TRD Off-Road (Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2023 Toyota Sequoia: TRD Off-Road (Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2023-2026 Toyota Sequoia: TRD Pro (Rear) — with 2" Maximum Lift Rear; Also Requires Part Number 58770E, 58772E, or 58775E
- 2022-2026 Toyota Tundra: 1794 Edition, Limited, Platinum, SR, SR5 (Air rear springs) — with 3.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022-2026 Toyota Tundra: 1794 Edition, Limited, Platinum, SR5 (Coil rear springs) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Off Road Package
- 2022-2026 Toyota Tundra: 1794 Edition, Limited, Platinum (Coil rear springs) — with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Air rear springs) — with 3" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022 Toyota Tundra: Platinum 1794 Edition (Rear) — with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022-2026 Toyota Tundra: SR (Coil rear springs) — with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; with TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs) — with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package; without TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (Coil rear springs) — with TRD Rally Package; with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2025-2026 Toyota Tundra: SR5 (Coil rear springs) — without TRD Rally Package; with 1.5" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E; without TRD Off Road Package
- 2022 Toyota Tundra: SR5 TRD Off-Road (Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2025 Toyota Tundra: TRD Off-Road (Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
- 2022-2026 Toyota Tundra: TRD Pro (Rear) — with 1" Maximum Lift Rear; Also Requires Part Number 58770E or 58775E
Part #: 57845EP
