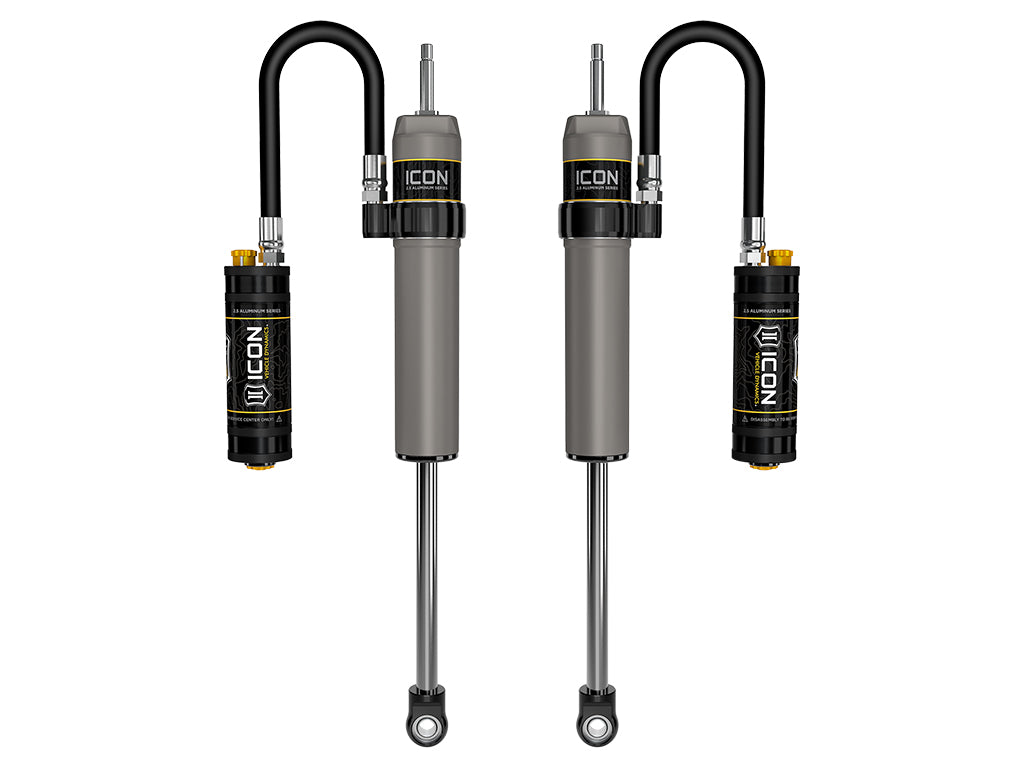

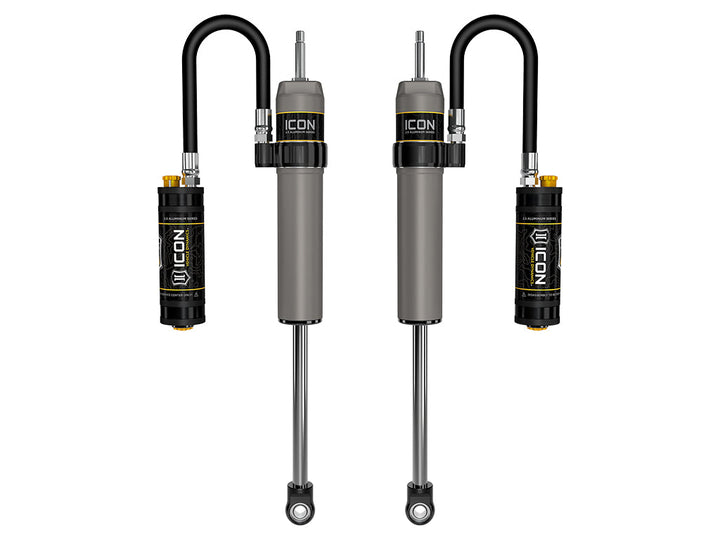

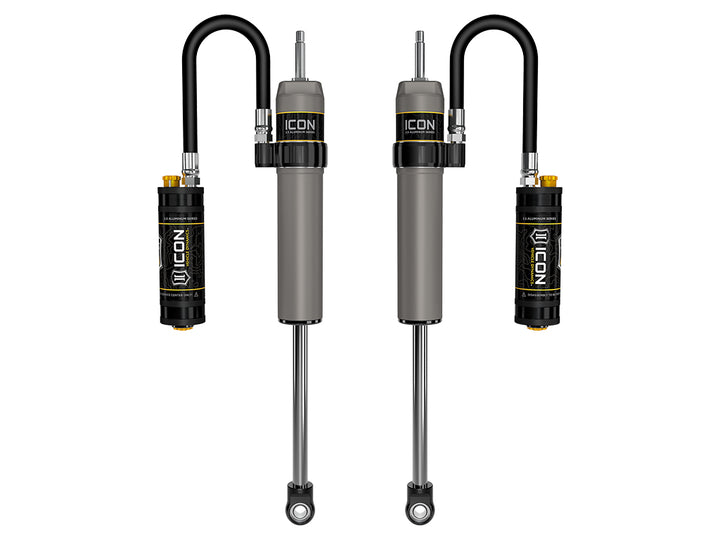

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Specifications:
- Lift height: 0-1.5"
- Position: Rear
- Shock series: 2.5 Series
Fits:
- 2025-2026 Toyota Sequoia: 1794 Edition (Rear) — with 2" Maximum Lift Rear; with TRD Off Road Package
- 2025-2026 Toyota Sequoia: 1794 Edition (Rear) — with 4" Maximum Lift Rear; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Capstone (Coil rear springs) — with 4" Maximum Lift Rear; without Adaptive Variable Suspension (AVS)
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Rear) — with 2" Maximum Lift Rear; with TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (4WD, Rear) — with 4" Maximum Lift Rear; without TRD Off Road Package
- 2023-2026 Toyota Sequoia: Limited, SR5 (RWD, Rear) — with 4" Maximum Lift Rear
- 2024-2026 Toyota Sequoia: Platinum (4WD, Rear) — with 2" Maximum Lift Rear; with TRD Off Road Package
- 2023 Toyota Sequoia: Platinum (4WD, Rear) — with 4" Maximum Lift Rear; without Adaptive Variable Suspension (AVS)
- 2024-2026 Toyota Sequoia: Platinum (4WD, Rear) — with 4" Maximum Lift Rear; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2023-2025 Toyota Sequoia: Platinum (RWD, Rear) — with 4" Maximum Lift Rear; without Adaptive Variable Suspension (AVS)
- 2026 Toyota Sequoia: SR5 TRD Off-Road (Rear) — with 2" Maximum Lift Rear
- 2023 Toyota Sequoia: TRD Off-Road (Rear) — with 2" Maximum Lift Rear
- 2023-2026 Toyota Sequoia: TRD Pro (Rear) — with 2" Maximum Lift Rear
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (Air rear springs) — with 3.5" Maximum Lift Rear; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition, Platinum (Coil rear springs) — with 1" Maximum Lift Rear; with TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: 1794 Edition (Coil rear springs) — with 1.5" Suspension Lift; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: Limited, SR, SR5 (Air rear springs) — with 3.5" Maximum Lift Rear
- 2022-2026 Toyota Tundra: Limited, SR5 (Coil rear springs) — with 1" Maximum Lift Rear; with TRD Off Road Package
- 2022-2026 Toyota Tundra: Limited (Coil rear springs) — with 1.5" Maximum Lift Rear; without TRD Off Road Package
- 2022 Toyota Tundra: Limited TRD Off-Road (Air rear springs) — with 3.5" Maximum Lift Rear
- 2022 Toyota Tundra: Limited TRD Off-Road, SR TRD Off-Road (Coil rear springs) — with 1" Maximum Lift Rear
- 2022-2026 Toyota Tundra: Platinum (Coil rear springs) — with 1.5" Maximum Lift Rear; without TRD Off Road Package; without Adaptive Variable Suspension (AVS)
- 2022 Toyota Tundra: Platinum 1794 Edition (Rear) — with 1.5" Maximum Lift Rear; without Adaptive Variable Suspension (AVS)
- 2022-2026 Toyota Tundra: SR (Coil rear springs) — with 1.5" Maximum Lift Rear
- 2022 Toyota Tundra: SR TRD Off-Road (Air rear springs) — with 3" Maximum Lift Rear
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs) — with 1" Maximum Lift Rear; with TRD Sport Package
- 2022-2024 Toyota Tundra: SR5 (Coil rear springs) — with 1.5" Maximum Lift Rear; without TRD Off Road Package; without TRD Sport Package
- 2025-2026 Toyota Tundra: SR5 (Coil rear springs) — with TRD Rally Package; with 1" Maximum Lift Rear
- 2025-2026 Toyota Tundra: SR5 (Coil rear springs) — without TRD Rally Package; with 1.5" Maximum Lift Rear; without TRD Off Road Package
- 2022 Toyota Tundra: SR5 TRD Off-Road (Rear) — with 1" Maximum Lift Rear
- 2025 Toyota Tundra: TRD Off-Road (Rear) — with 1" Maximum Lift Rear
- 2022-2026 Toyota Tundra: TRD Pro (Rear) — with 1" Maximum Lift Rear
Part #: 57840CP
