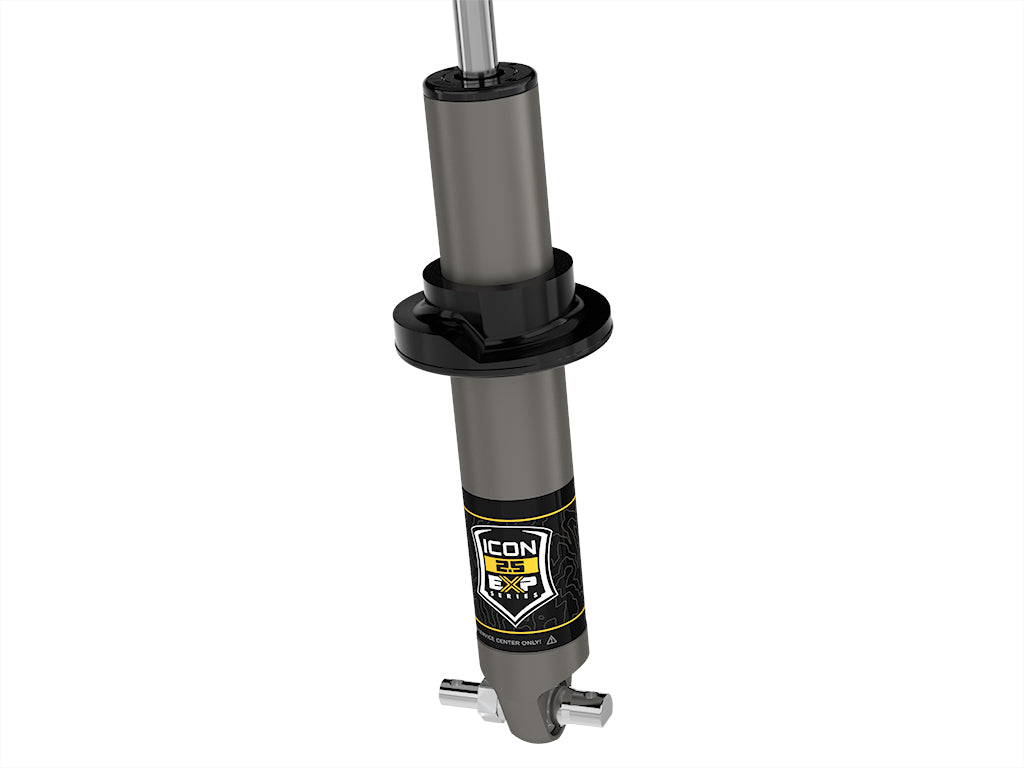

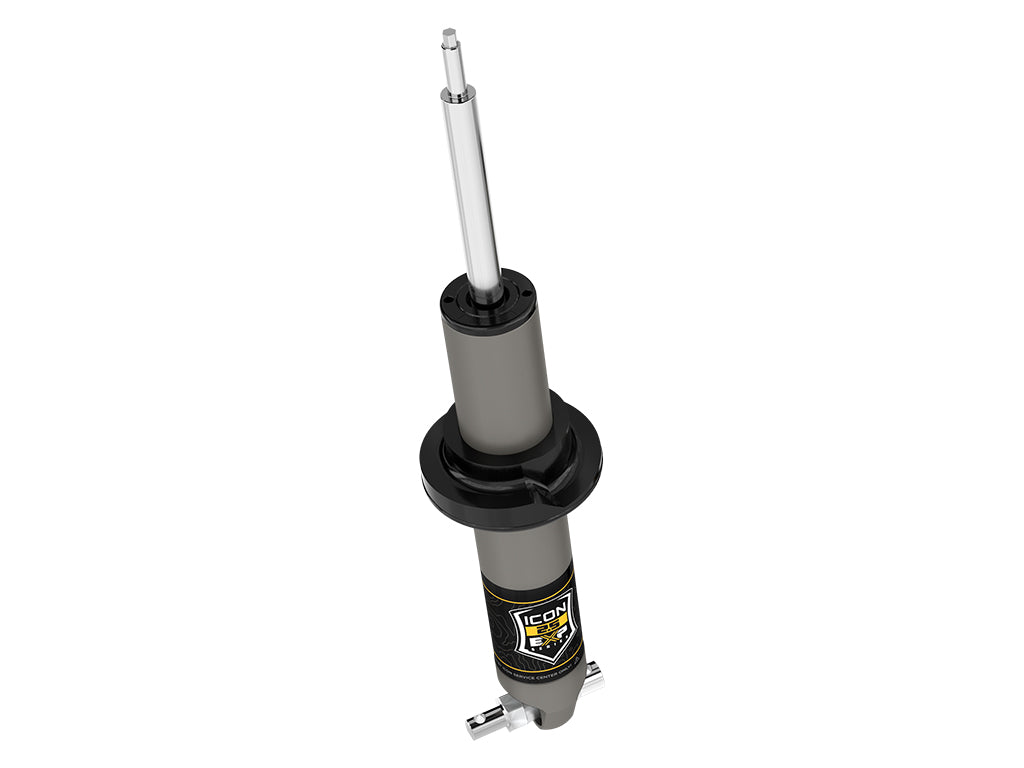

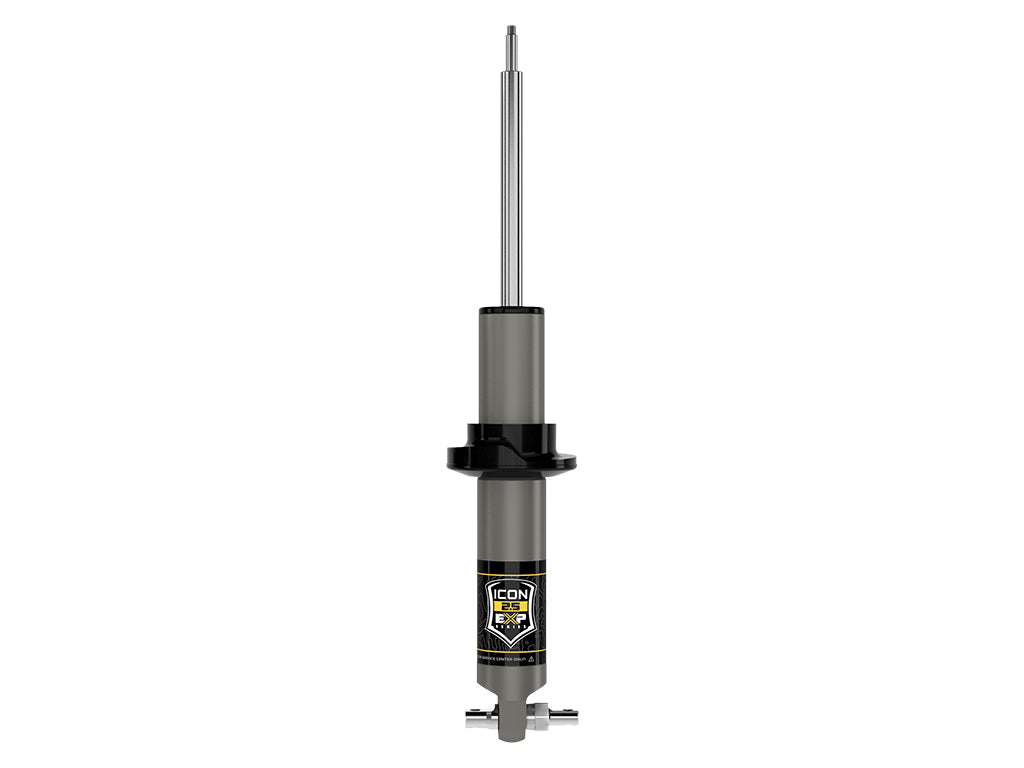

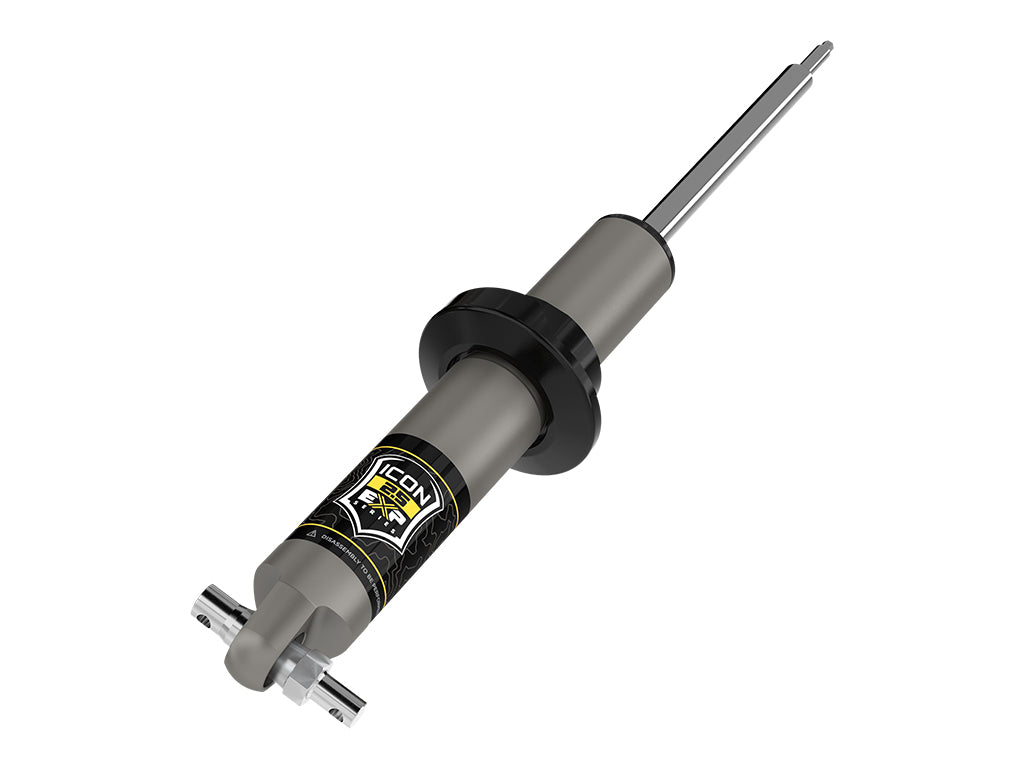

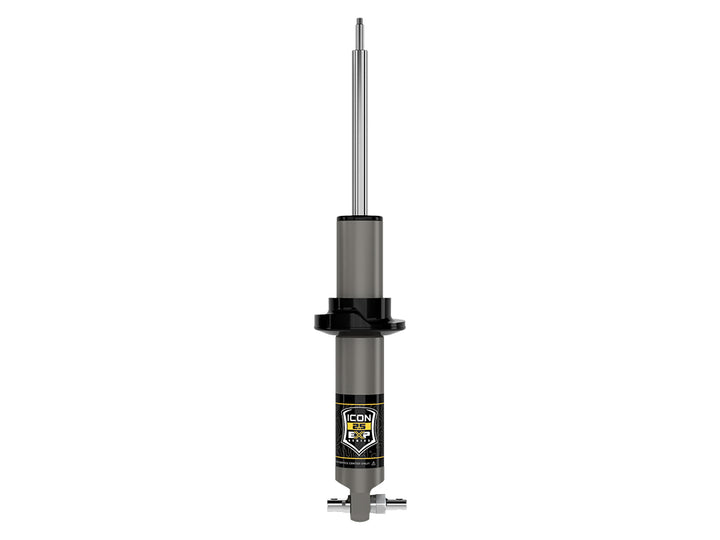

The 2021-2026 Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco’s OE upper shock and spring mounts.
The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 1.375" to 3” of lift over stock on Bronco’s equipped with the OE HOSS 1.0 suspension package.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
HOSS 1.0 is Ford's "base" suspension system for Broncos with the Base, Big Bend, Outer Banks and Black Diamond trim levels WITHOUT the Sasquatch package. HOSS 1.0 is most easily identified by the BLACK shock bodies of the OE shocks.
Specifications:
- Lift height: 1.375-3"
- Front lift: 1.375" - 3"
- Position: Front
- Extended length: 23.5"
- Material: Aluminum, Steel
Installation notes:
- Recommended tire size requires high clearance crash bars, ICON part number 42000
- When running 37” tires crash bar removal may be required, but is not recommended
- Use Up To 35" x 12.50" Tires
- without Sasquatch Package
- For 37" Tires Use Bump Stop Spacer Kit
- Up to 37" Tire with Minor Fender Trimming
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- May Require Part Number 48400DJ or 48500DJ
- Raises Front 1.375" - 3"
- 25 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2021-2023, 2025-2026 Ford Bronco: Base (Front)
- 2021-2026 Ford Bronco: Big Bend, Outer Banks (Front)
- 2021-2024 Ford Bronco: Black Diamond (Front)
Part #: 48601
