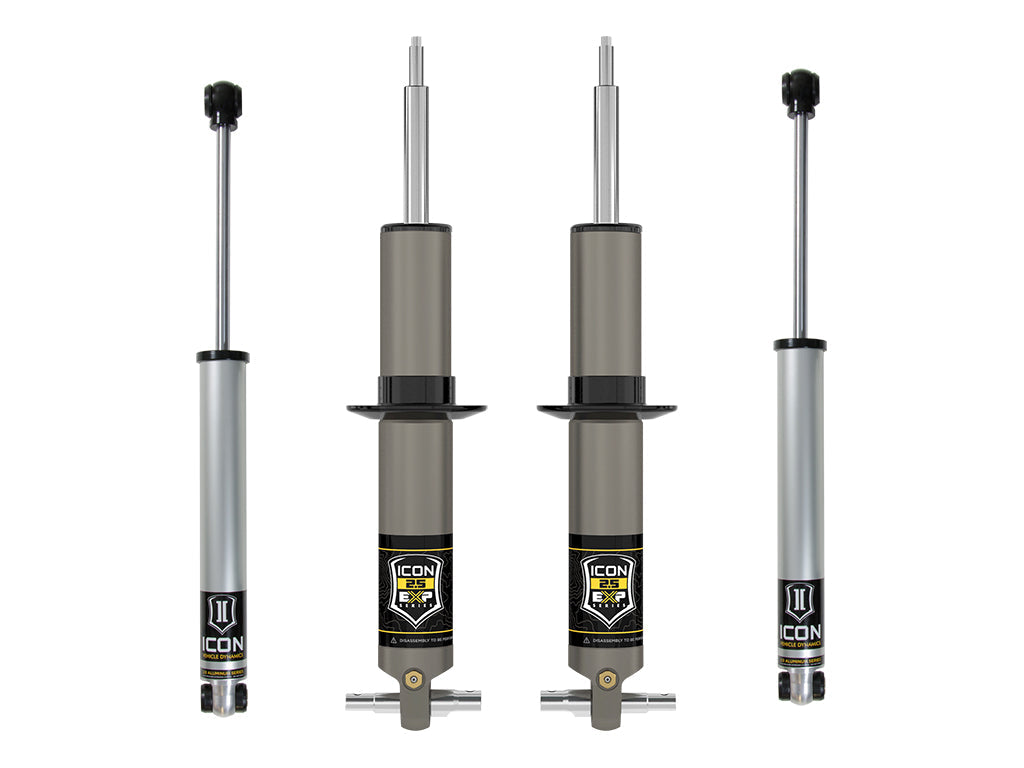

The ICON Vehicle Dynamics Stage 1 EXP complete suspension system for the 2019-2026 GM 1500 pickup represents our entry level performance suspension system, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.

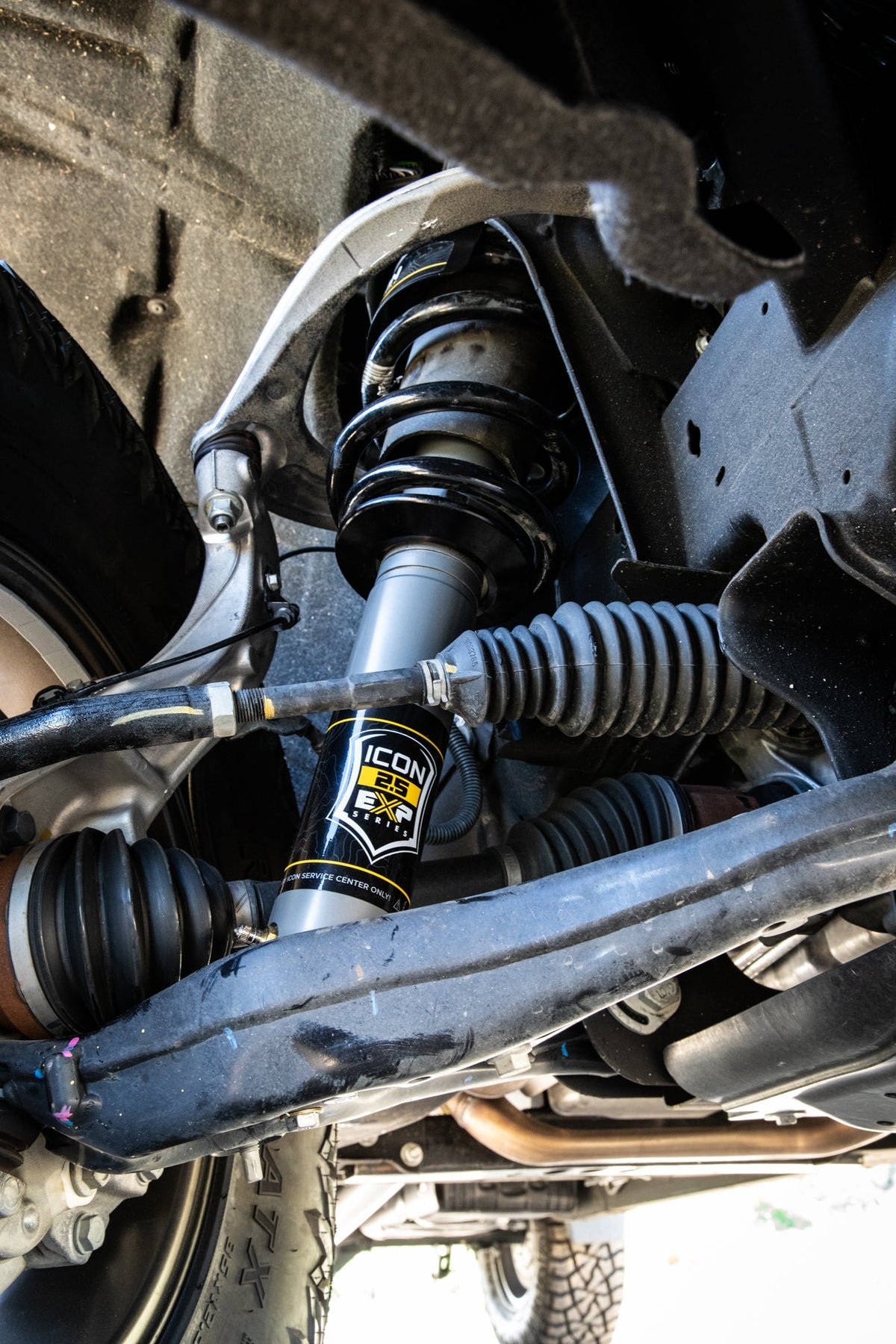

This Stage 1 system features the 2019-2026 GM 1500 EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
Rounding out the Stage 1 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2019-2026 GM 1500. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Silverado 1500 or Sierra 1500.
Specifications:
- Lift height: 2.375-3.75"
- Position: Front and Rear
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- with 2" Maximum Lift Rear
- Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
- Requires Slight Sanding of Rear Shock Mounts
- 0 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2020-2026 Chevrolet Silverado 1500: Custom (2.7L GAS, Front and Rear) — Up to 35x12.50 Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2021 Chevrolet Silverado 1500: Custom, WT (4.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2020 Chevrolet Silverado 1500: Custom (5.3L FLEX, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2021 Chevrolet Silverado 1500: Custom (5.3L FLEX, Coil front springs, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2020 Chevrolet Silverado 1500: Custom, High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2021 Chevrolet Silverado 1500: Custom (5.3L GAS, Coil front springs, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2021-2026 Chevrolet Silverado 1500: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; May Require Part Number Concurrent Installation of Aftermarket Rear Shocks; Also Requires Part Number 71021 and Number 71022; Raises Front 1.75" - 3"; with Adaptive Suspension
- 2020 Chevrolet Silverado 1500: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 1.75" - 3"
- 2021-2026 Chevrolet Silverado 1500: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 1.75" - 3"; without Adaptive Suspension
- 2021-2026 Chevrolet Silverado 1500: High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 2.375" - 3.75"; with Adaptive Suspension
- 2021-2026 Chevrolet Silverado 1500: High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"; without Adaptive Suspension
- 2021-2026 Chevrolet Silverado 1500: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 2.375" - 3.75"; with Adaptive Suspension
- 2019-2020 Chevrolet Silverado 1500: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2021-2026 Chevrolet Silverado 1500: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"; without Adaptive Suspension
- 2019-2026 Chevrolet Silverado 1500: LT, RST (2.7L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2020-2026 Chevrolet Silverado 1500: LT, LTZ, RST (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 1.75" - 3"
- 2019-2026 Chevrolet Silverado 1500: LT, LTZ, RST (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2026 Chevrolet Silverado 1500: LTZ (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2023-2026 Chevrolet Silverado 1500: PPV (Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2020-2026 Chevrolet Silverado 1500: RST (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2021 Chevrolet Silverado 1500: SSV (Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2022, 2025-2026 Chevrolet Silverado 1500: WT (2.7L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2023-2024 Chevrolet Silverado 1500: WT (2.7L GAS, Coil front springs, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2021, 2025-2026 Chevrolet Silverado 1500: WT (5.3L FLEX, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2023-2024 Chevrolet Silverado 1500: WT (5.3L FLEX, Coil front springs, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2022, 2025-2026 Chevrolet Silverado 1500: WT (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2023-2024 Chevrolet Silverado 1500: WT (5.3L GAS, Coil front springs, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2020 Chevrolet Silverado 1500: WT Cab Regular, WT Doble Cabina (Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 Chevrolet Silverado 1500 LTD: Custom (Front and Rear) — Up to 35x12.50 Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 Chevrolet Silverado 1500 LTD: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 1.75" - 3"; with Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 1.75" - 3"; without Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 2.375" - 3.75"; with Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"; without Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 2.375" - 3.75"; with Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: High Country (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"; without Adaptive Suspension
- 2022 Chevrolet Silverado 1500 LTD: LT, RST, WT (2.7L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 Chevrolet Silverado 1500 LTD: LT, LTZ, RST (3.0L DIESEL, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 1.75" - 3"
- 2022 Chevrolet Silverado 1500 LTD: LT, LTZ, RST, WT (5.3L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 Chevrolet Silverado 1500 LTD: LTZ, RST (6.2L GAS, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 Chevrolet Silverado 1500 LTD: SSV (Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 Chevrolet Silverado 1500 LTD: WT (5.3L FLEX, Front and Rear) — Up to 35x12.50" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2021 GMC Sierra 1500: Base (2.7L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2021 GMC Sierra 1500: Base (4.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2021 GMC Sierra 1500: Base (5.3L FLEX, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2021 GMC Sierra 1500: Base (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2020-2026 GMC Sierra 1500: Denali (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 1.75" - 3"
- 2019-2026 GMC Sierra 1500: Denali (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 2.375" - 3.75"
- 2019-2026 GMC Sierra 1500: Denali (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 2.375" - 3.75"
- 2022-2026 GMC Sierra 1500: Denali Ultimate (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 1.75" - 3"
- 2022-2026 GMC Sierra 1500: Denali Ultimate (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 2.375" - 3.75"
- 2019-2026 GMC Sierra 1500: Elevation, SLE (2.7L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2020-2026 GMC Sierra 1500: Elevation, SLE, SLT (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 1.75" - 3"
- 2019-2026 GMC Sierra 1500: Elevation, SLE, SLT (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022-2026 GMC Sierra 1500: Pro (2.7L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2023-2026 GMC Sierra 1500: Pro (5.3L FLEX, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022-2026 GMC Sierra 1500: Pro (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2019-2026 GMC Sierra 1500: SLT (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 GMC Sierra 1500 Limited: Denali (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 1.75" - 3"
- 2022 GMC Sierra 1500 Limited: Denali (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 2.375" - 3.75"
- 2022 GMC Sierra 1500 Limited: Denali (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Also Requires Part Number 71021 and Number 71022; Raises Front 2.375" - 3.75"
- 2022 GMC Sierra 1500 Limited: Elevation, Pro, SLE (2.7L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 GMC Sierra 1500 Limited: Elevation, SLE, SLT (3.0L DIESEL, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 1.75" - 3"
- 2022 GMC Sierra 1500 Limited: Elevation, Pro, SLE, SLT (5.3L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 GMC Sierra 1500 Limited: Pro (5.3L FLEX, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
- 2022 GMC Sierra 1500 Limited: SLT (6.2L GAS, Front and Rear) — Up to 34x12.00" Tire with Minor Fender Trimming; Raises Front 2.375" - 3.75"
Part #: K73071
