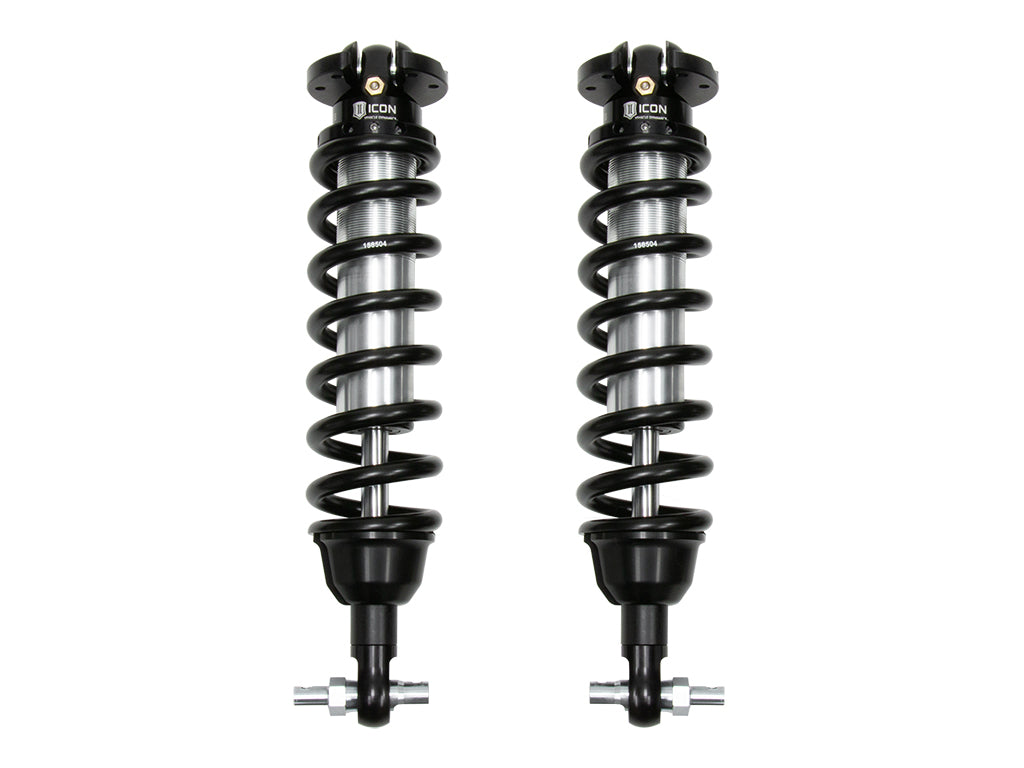

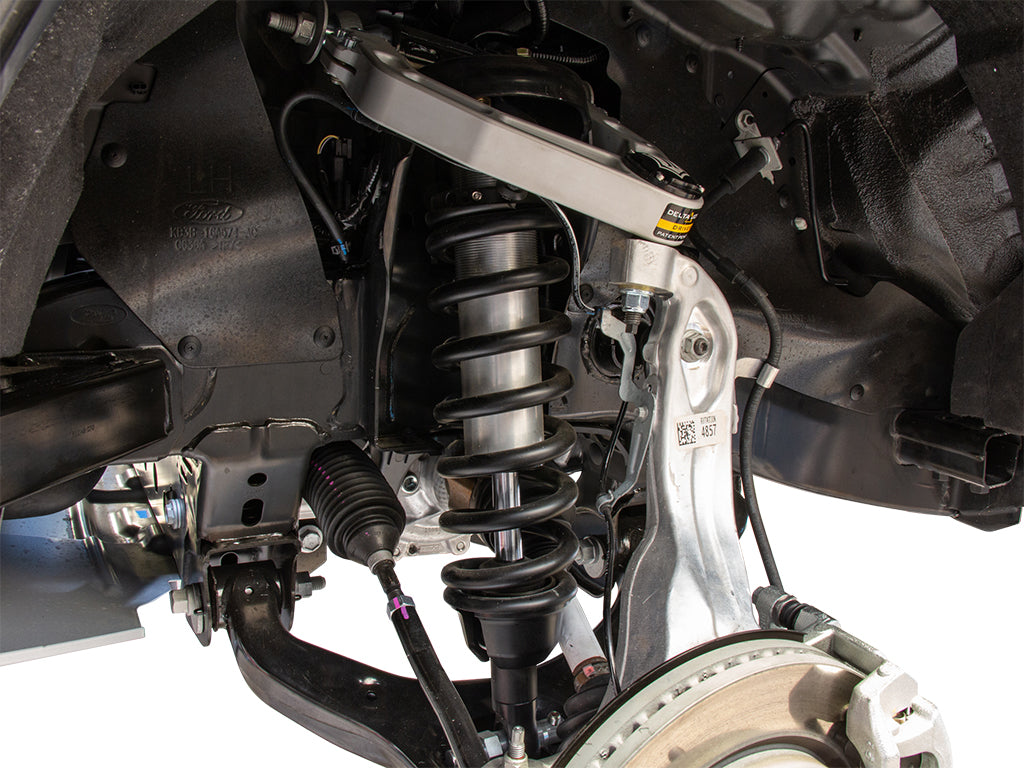

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible with OE front upper control arms along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.
Specifications:
- Lift height: 0-3.5"
- Position: Front
- Shock series: 2.5 Series
- Travel: 8.00"
- Extended length: 20.68"
- Material: Aluminum, Steel
Installation notes:
- Up to 33x11.25" Tire with Minor Fender Trimming
Fits:
- 2019-2020 Ford Ranger: Lariat, XLT (Front) — Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Raises Front 0" - 3.5"
- 2021-2023 Ford Ranger: Lariat, XLT (Front) — Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; with Tremor Package; Raises Front 0" - 2.5"
- 2021-2023 Ford Ranger: Lariat (Front) — without Tremor Package; Raises Front 0" - 3.5"
- 2019-2023 Ford Ranger: XL (Front) — Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Raises Front 0" - 3.5"
- 2021-2023 Ford Ranger: XLT (Front) — Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; without Tremor Package; Raises Front 0" - 3.5"
- 2021-2022 Ford Ranger: XLT Plus (Front) — Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Raises Front 0" - 3.5"
Part #: 91250
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
