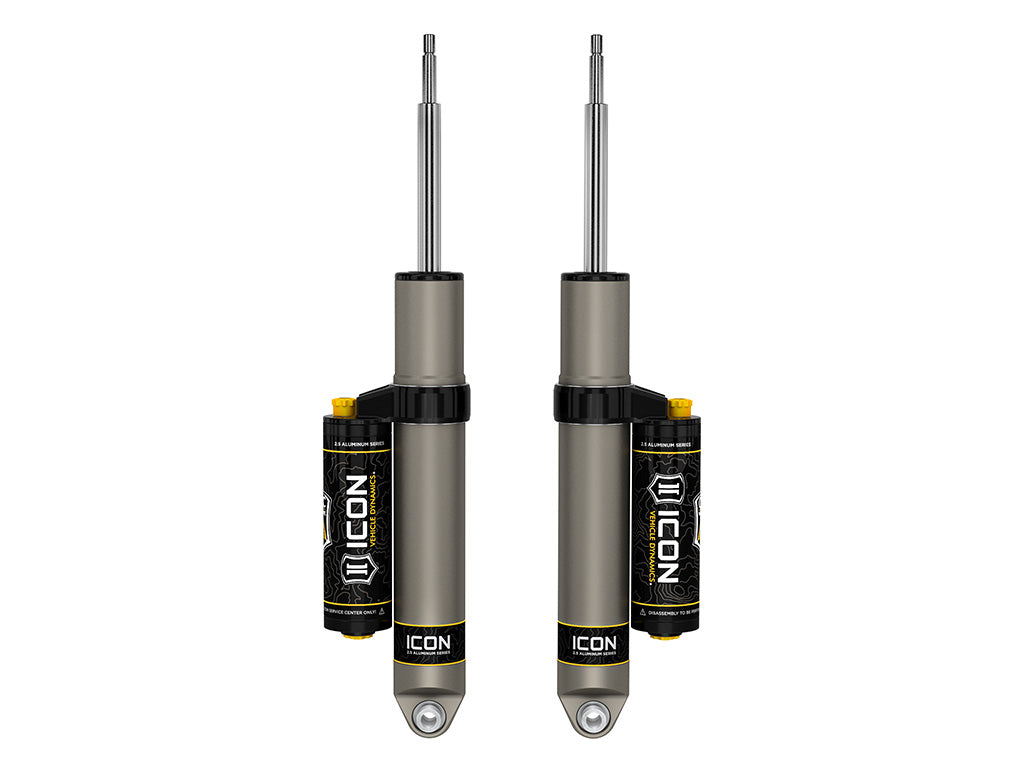

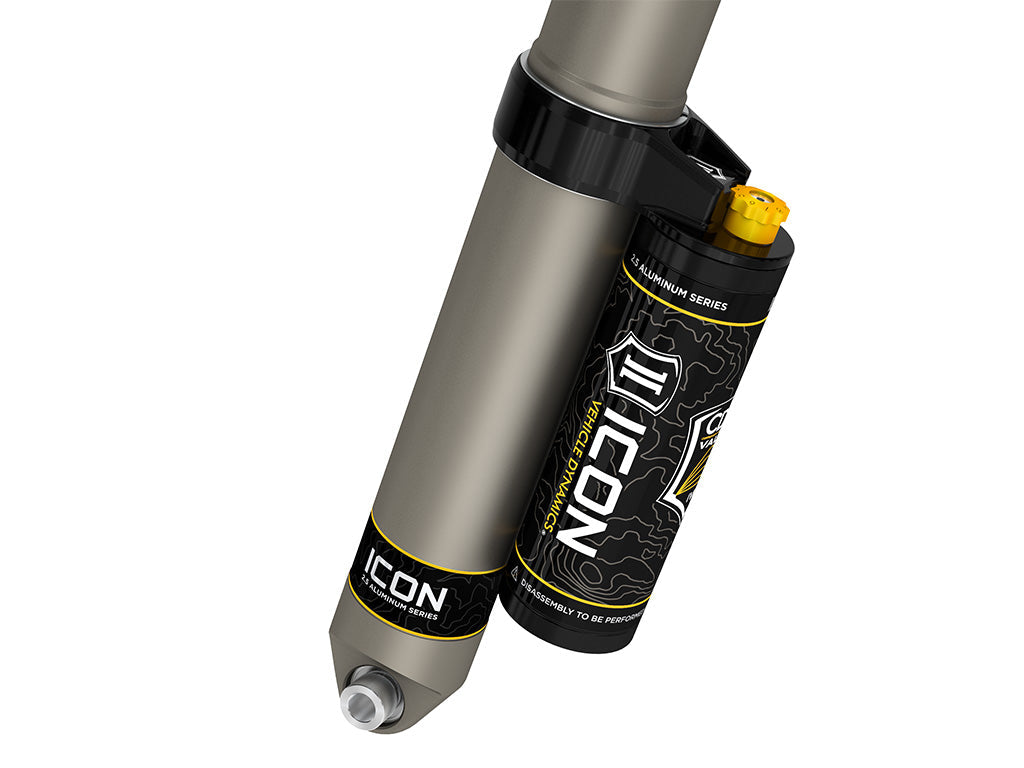

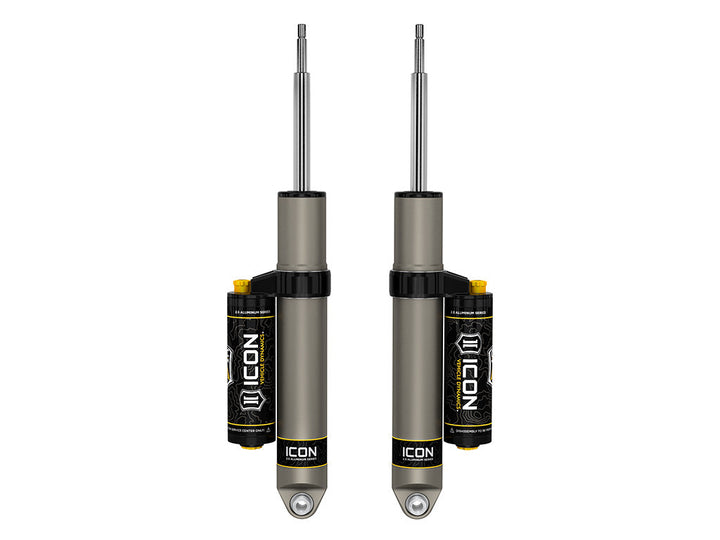

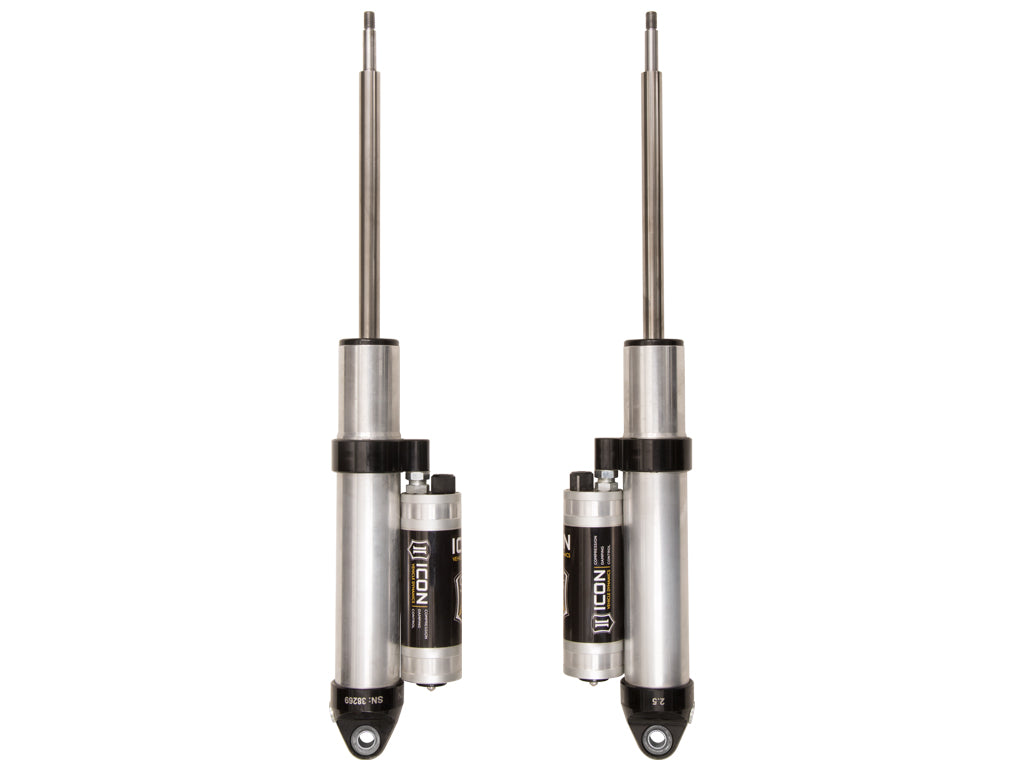

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Specifications:
- Lift height: 0"
- Travel: 11.00"
Fits:
- 2014-2026 Ram 2500: Big Horn, Laramie, Tradesman (Air rear springs) — with 3" Suspension Lift
- 2014-2026 Ram 2500: Big Horn, Laramie, Tradesman (Coil rear springs) — with 1" Maximum Lift Rear
- 2026 Ram 2500: Black Express (Air rear springs) — with 3" Suspension Lift
- 2026 Ram 2500: Black Express (Coil rear springs) — with 1" Maximum Lift Rear
- 2023 Ram 2500: HD Big Horn (Rear) — with 1" Maximum Lift Rear
- 2019-2024 Ram 2500: HD Limited (Rear) — with 3" Suspension Lift
- 2020 Ram 2500: HD Limited Rambox (Rear) — with 3" Suspension Lift
- 2023-2024 Ram 2500: HD Power Wagon (Rear) — with 1" Maximum Lift Rear
- 2014-2016 Ram 2500: Hemi Sport (Rear) — with 1" Maximum Lift Rear
- 2017 Ram 2500: Laramie HD (Rear) — with 1" Maximum Lift Rear
- 2014-2020 Ram 2500: Laramie Limited (Air rear springs) — with 3" Suspension Lift
- 2014-2020 Ram 2500: Laramie Limited (Coil rear springs) — with 1" Maximum Lift Rear
- 2014-2021 Ram 2500: Laramie Longhorn (Air rear springs) — with 3" Suspension Lift
- 2014-2021 Ram 2500: Laramie Longhorn (Coil rear springs) — with 1" Maximum Lift Rear
- 2016-2026 Ram 2500: Limited (Air rear springs) — with 3" Suspension Lift
- 2016-2026 Ram 2500: Limited (Coil rear springs) — with 1" Maximum Lift Rear
- 2021-2026 Ram 2500: Limited Longhorn (Air rear springs) — with 3" Suspension Lift
- 2021-2026 Ram 2500: Limited Longhorn (Coil rear springs) — with 1" Maximum Lift Rear
- 2018 Ram 2500: Limited Tungsten, Limited Tungsten HD (Rear) — with 3" Suspension Lift
- 2014-2015, 2019-2026 Ram 2500: Lone Star (Air rear springs) — with 3" Suspension Lift
- 2014-2015, 2019-2026 Ram 2500: Lone Star (Coil rear springs) — with 1" Maximum Lift Rear
- 2014-2018 Ram 2500: Outdoorsman, SLT, ST (Air rear springs) — with 3" Suspension Lift
- 2014-2018 Ram 2500: Outdoorsman, ST (Coil rear springs) — with 1" Maximum Lift Rear
- 2014-2026 Ram 2500: Power Wagon (Rear) — with 1" Maximum Lift Rear
- 2014-2019 Ram 2500: R/T (Rear) — with 1" Maximum Lift Rear
- 2025-2026 Ram 2500: Rebel (Rear) — with 1" Maximum Lift Rear
- 2023-2024 Ram 2500: Rebel (Air rear springs) — with 3" Suspension Lift
- 2023-2024 Ram 2500: Rebel (Coil rear springs) — with 1" Maximum Lift Rear
- 2014-2019 Ram 2500: SLT (Coil rear springs) — with 1" Maximum Lift Rear
- 2017-2023 Ram 2500: SLT HD (Rear) — with 1" Maximum Lift Rear
- 2024-2026 Ram 2500: Special Service (Air rear springs) — with 3" Suspension Lift
- 2024-2026 Ram 2500: Special Service (Coil rear springs) — with 0" Suspension Lift; with 1" Maximum Lift Rear
- 2017-2019 Ram 2500: Sport (Rear) — with 1" Maximum Lift Rear
- 2026 Ram 2500: Warlock (Rear) — with 1" Maximum Lift Rear
Part #: 217704CP
