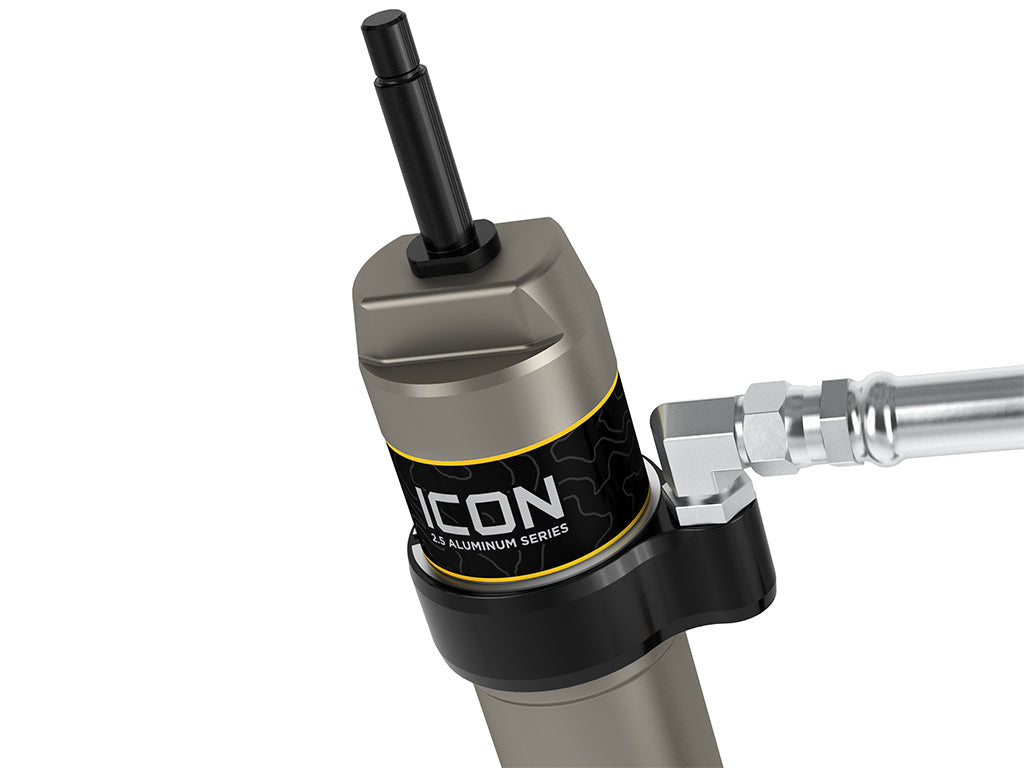

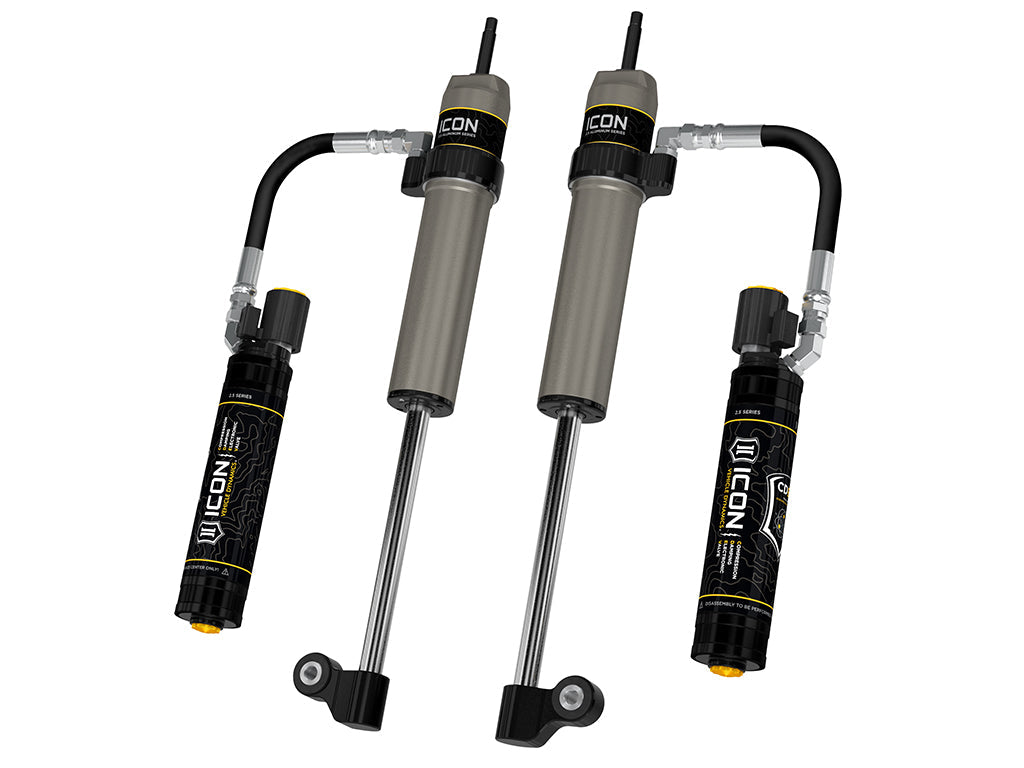

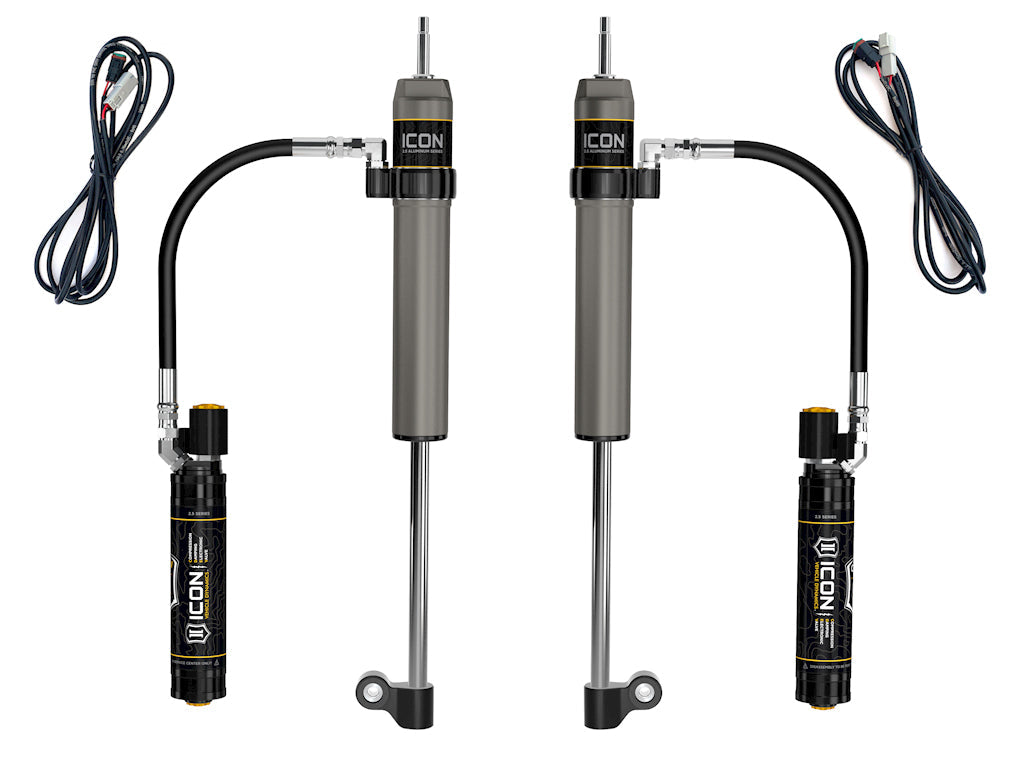

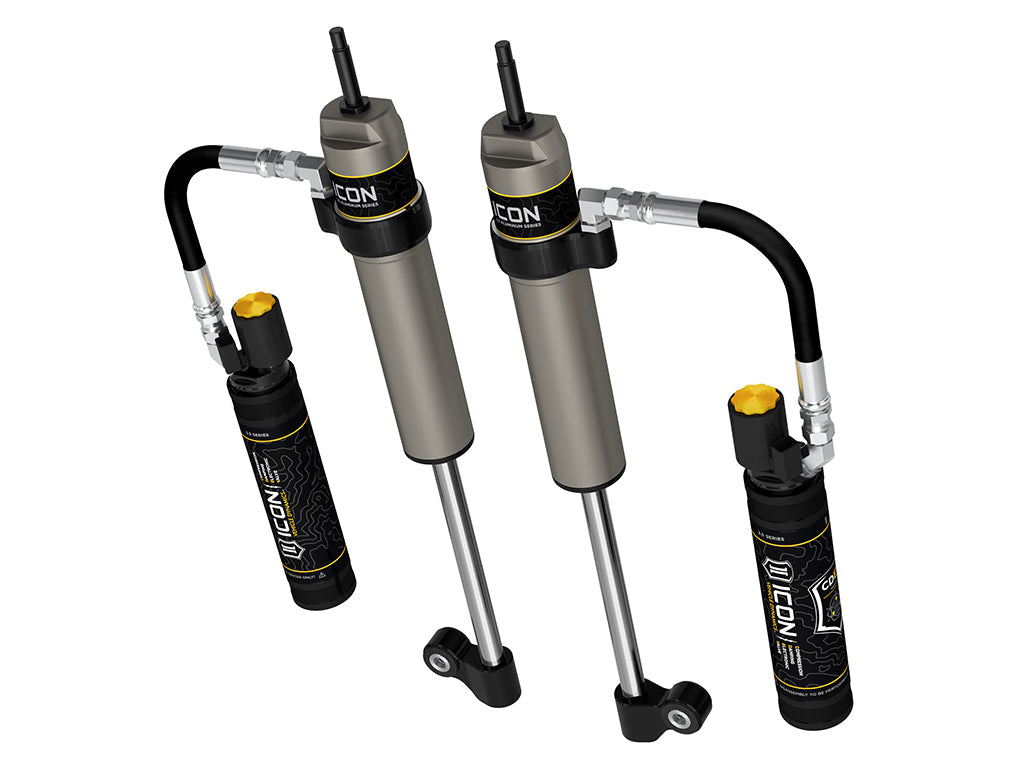

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. This RXT rear shock features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location, allowing for additional wheel travel when paired with ICON Multi-Rate Leaf Springs. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Specifications:
- Position: Rear
- Shock series: 2.5 Series
- Travel: 11.00"
Required to install (sold separately):
- Also Requires Part Number 158505
Installation notes:
- Requires iOS operated device to run ICON Intelligent Control App
Fits:
- 2022-2023 Toyota Tacoma: Base (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53502 and Number 58735E or 59730E
- 2005-2015 Toyota Tacoma: Base (4WD, Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53507 and Number 58735E or 59730E
- 2006 Toyota Tacoma: Base Prerunner (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53507 and Number 58735E or 59730E
- 2016-2023 Toyota Tacoma: Edicion Especial, Limited, SR, TRD Off-Road, TRD Sport (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53502 and Number 58735E or 59730E
- 2021-2023 Toyota Tacoma: Nightshade (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53502 and Number 58735E or 59730E
- 2005-2015 Toyota Tacoma: Pre Runner (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53507 and Number 58735E or 59730E
- 2017-2023 Toyota Tacoma: Sport (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53502 and Number 58735E or 59730E
- 2016-2023 Toyota Tacoma: SR5 (Rear) — with 2.625 Maximum Lift Rear; Also Requires Part Number 53502 and Number 58735E or 59730E
- 2006-2009 Toyota Tacoma: SR5 Prerunner, TRD Sport Prerunner (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53507 and Number 58735E or 59730E
- 2021-2022 Toyota Tacoma: Trail (Rear) — Also Requires Part Number 53502 and Number 58735E or 59730E
- 2023 Toyota Tacoma: Trail Special Edition (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53502 and Number 58735E or 59730E
- 2017-2023 Toyota Tacoma: TRD Pro (Rear) — with 2.125" Maximum Lift Rear; Also Requires Part Number 53502 and Number 58735E or 59730E
- 2015 Toyota Tacoma: TRD Pro (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53507 and Number 58735E or 59730E
- 2010-2015 Toyota Tacoma: TRD Sport (Rear) — with 2.625" Maximum Lift Rear; Also Requires Part Number 53507 and Number 58735E or 59730E
Part #: 57826EP
