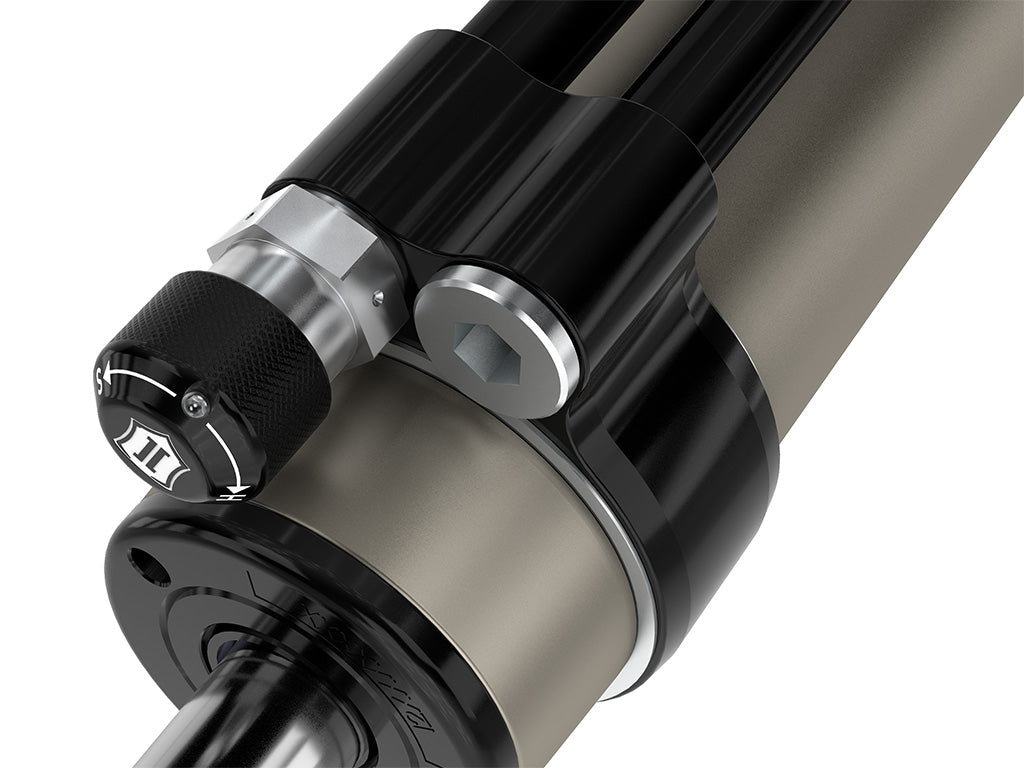

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
Specifications:
- Lift height: 0-3.5"
- Position: Front
- Shock series: 2.5 Series
- Travel: 9.00"
Note: some applications below require additional ICON parts (sold separately) — see the note on your vehicle.
Installation notes:
- Up to 33x11.50" Tire with Minor Fender Trimming
- 0 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2003-2009 Toyota 4Runner (Front) — Also Requires Part Number 56101 and Number 56102; with 0" - 3.5" Suspension Lift
- 2010-2024 Toyota 4Runner (Front) — Also Requires Part Number 56102 and Number 56106; with 0" - 3.5" Suspension Lift; without Dynamic Stabilizer Bar
- 2007-2009 Toyota FJ Cruiser (Front) — Also Requires Part Number 56101 and Number 56102; with 0" - 3.5" Suspension Lift
- 2010-2014 Toyota FJ Cruiser (Front) — Also Requires Part Number 56102 and Number 56106; with 0" - 3.5" Suspension Lift
- 2022-2023 Toyota Tacoma: Base (Front) — Also Requires Part Number 56102 and Number 56107 or 54300; with 0" - 2.75" Suspension Lift
- 2005-2015 Toyota Tacoma: Base (4WD, Front) — Also Requires Part Number 56101 or 54300 and Number 56102; with 0" - 3.5" Suspension Lift
- 2006 Toyota Tacoma: Base Prerunner (Front) — Also Requires Part Number 56101 or 54300 and Number 56102; with 0" - 3.5" Suspension Lift
- 2016-2023 Toyota Tacoma: Edicion Especial, Limited, SR, SR5, TRD Off-Road, TRD Sport (Front) — Also Requires Part Number 56102 and Number 56107 or 54300; with 0" - 2.75" Suspension Lift
- 2021-2023 Toyota Tacoma: Nightshade (Front) — Also Requires Part Number 56102 and Number 56107 or 54300; with 0" - 2.75" Suspension Lift
- 2005-2015 Toyota Tacoma: Pre Runner (Front) — Also Requires Part Number 56101 or 54300 and Number 56102; with 0" - 3.5" Suspension Lift
- 2017-2023 Toyota Tacoma: Sport (Front) — Also Requires Part Number 56102 and Number 56107 or 54300; with 0" - 2.75" Suspension Lift
- 2006-2009 Toyota Tacoma: SR5 Prerunner, TRD Sport Prerunner (Front) — Also Requires Part Number 56101 or 54300 and Number 56102; with 0" - 3.5" Suspension Lift
- 2021-2022 Toyota Tacoma: Trail (Front) — Also Requires Part Number 56102 and Number 56107 or 54300; with 0" - 2.75" Suspension Lift
- 2015 Toyota Tacoma: TRD Pro (Front) — Also Requires Part Number 56101 or 54300 and Number 56102; with 0" - 1.75" Suspension Lift
- 2017-2023 Toyota Tacoma: TRD Pro (Front) — Also Requires Part Number 56102 and Number 56107 or 54300; with 0" - 1.25" Suspension Lift
- 2010-2015 Toyota Tacoma: TRD Sport (Front) — Also Requires Part Number 56101 or 54300 and Number 56102; with 0" - 3.5" Suspension Lift
Part #: 59906P
