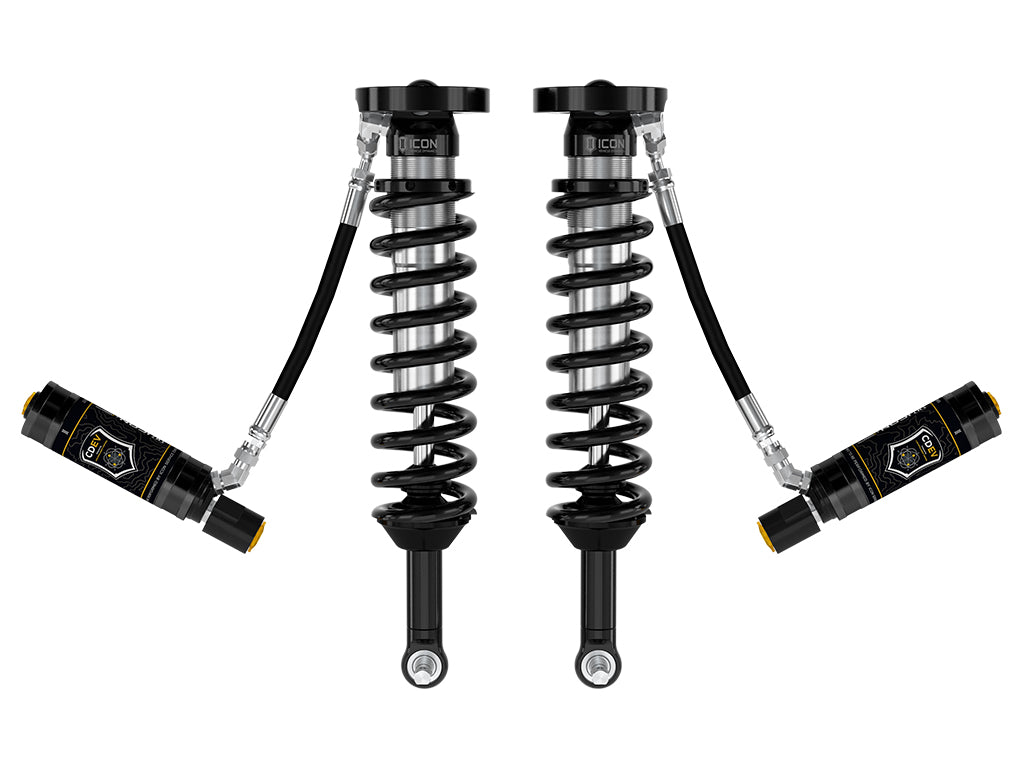

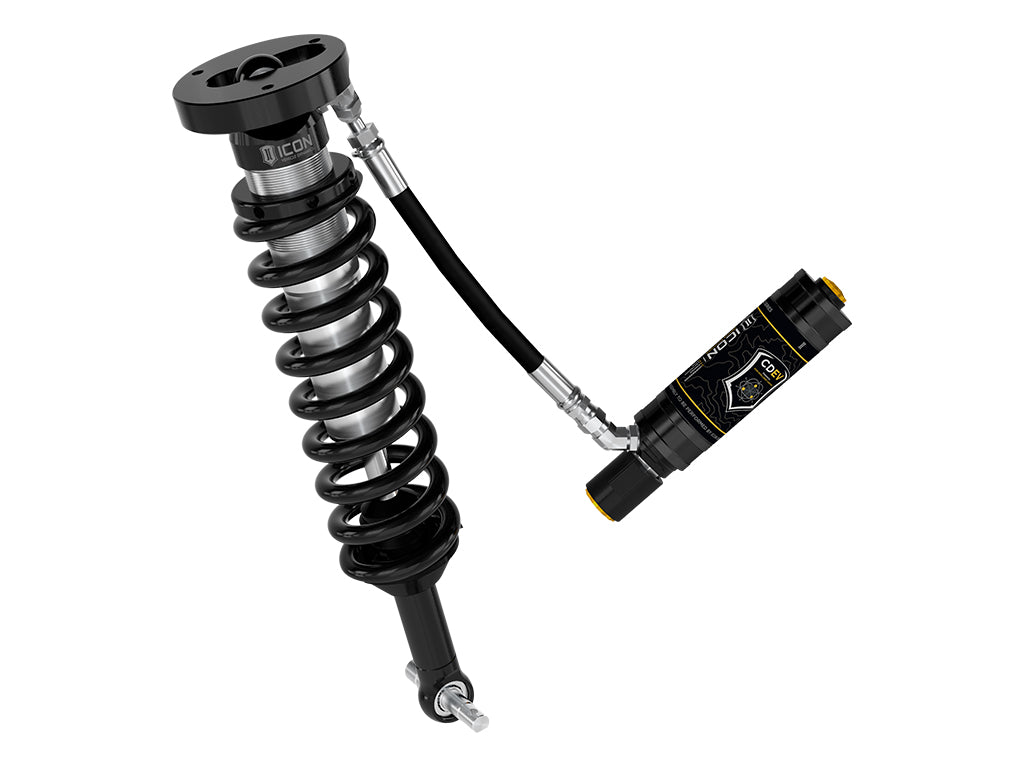

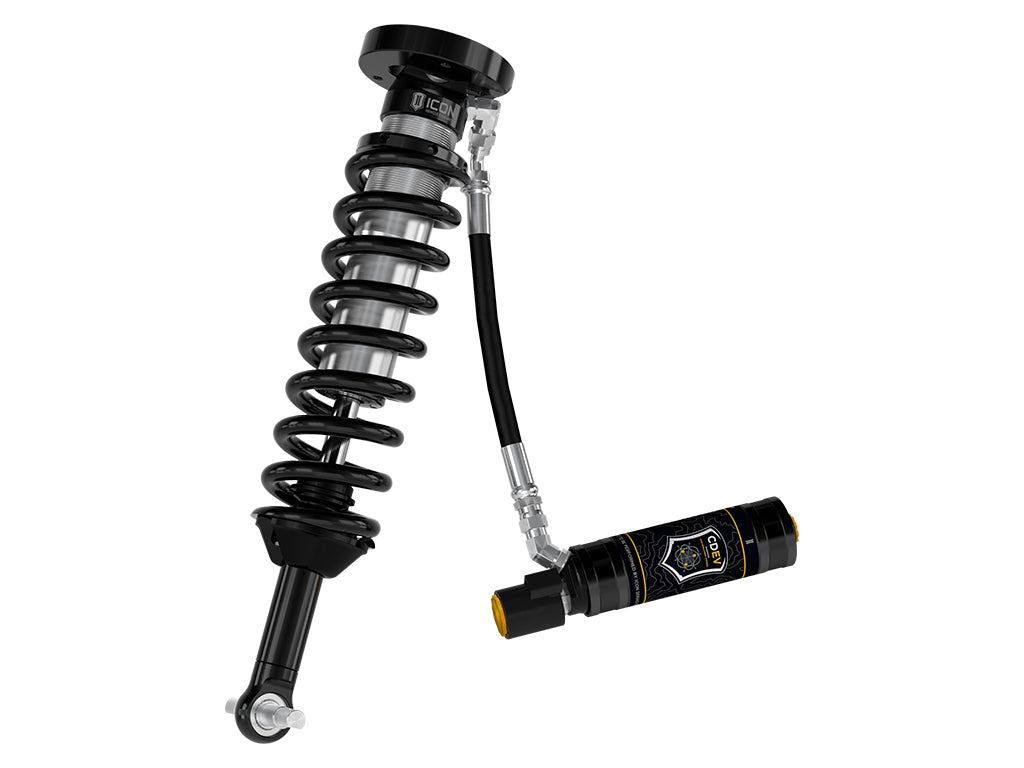

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2026 GMC Canyon and 2023-2026 Chevrolet Colorado Trail Boss trucks. Their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 10.25” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss.
Specifications:
- Front lift: 1.75" - 2.5"
- Position: Front
- Shock series: 2.5 Series
- Extended length: 23.83"
- Material: Steel, Aluminum
Required to install (sold separately):
- Also Requires Part Number 73000 and Number 77751EP
Installation notes:
- Raises Front 1.75" - 2.5"
- Use Up To 35" x 12.50" Tires

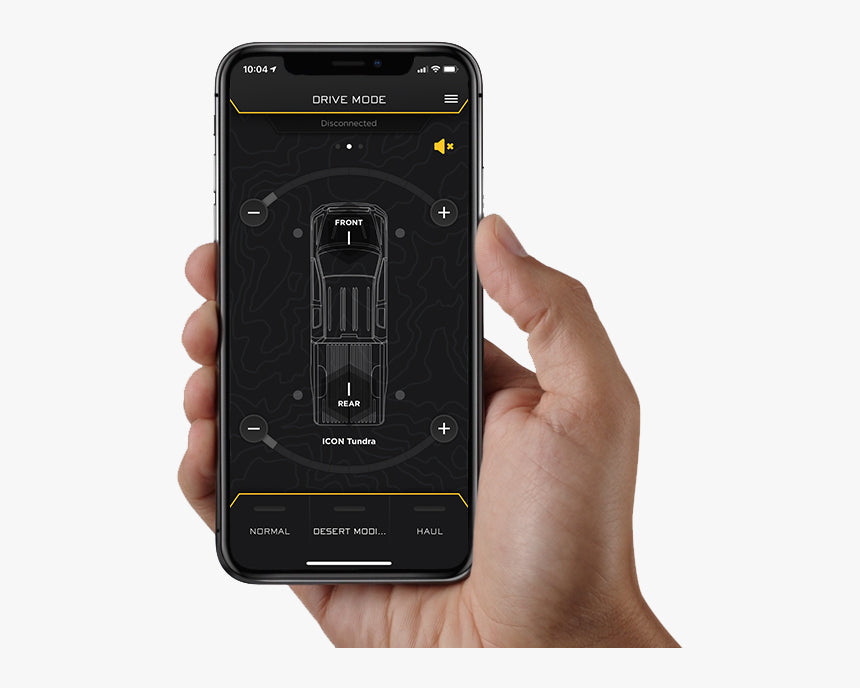

- Requires iOS operated device to run ICON Intelligent Control App
- Requires ICON Delta Joint Pro Front Upper Control Arms
- 18 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2023-2026 Chevrolet Colorado: Trail Boss (Front)
- 2023-2026 GMC Canyon: AT4, Denali, Elevation (Front)
Part #: 71670E
