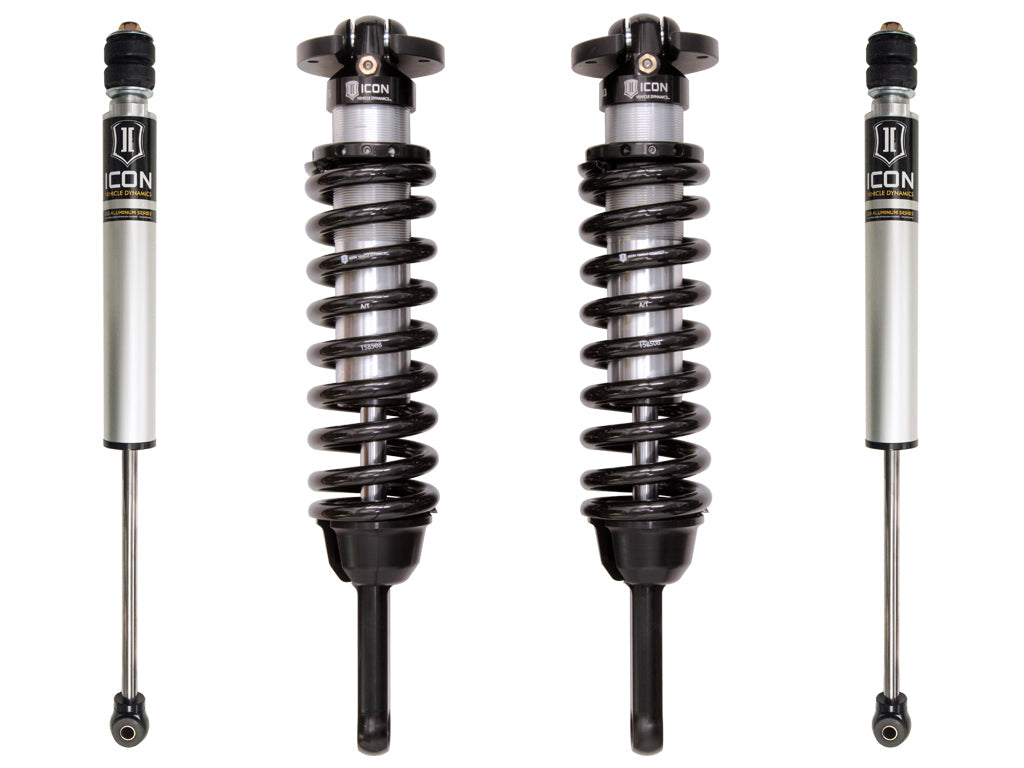

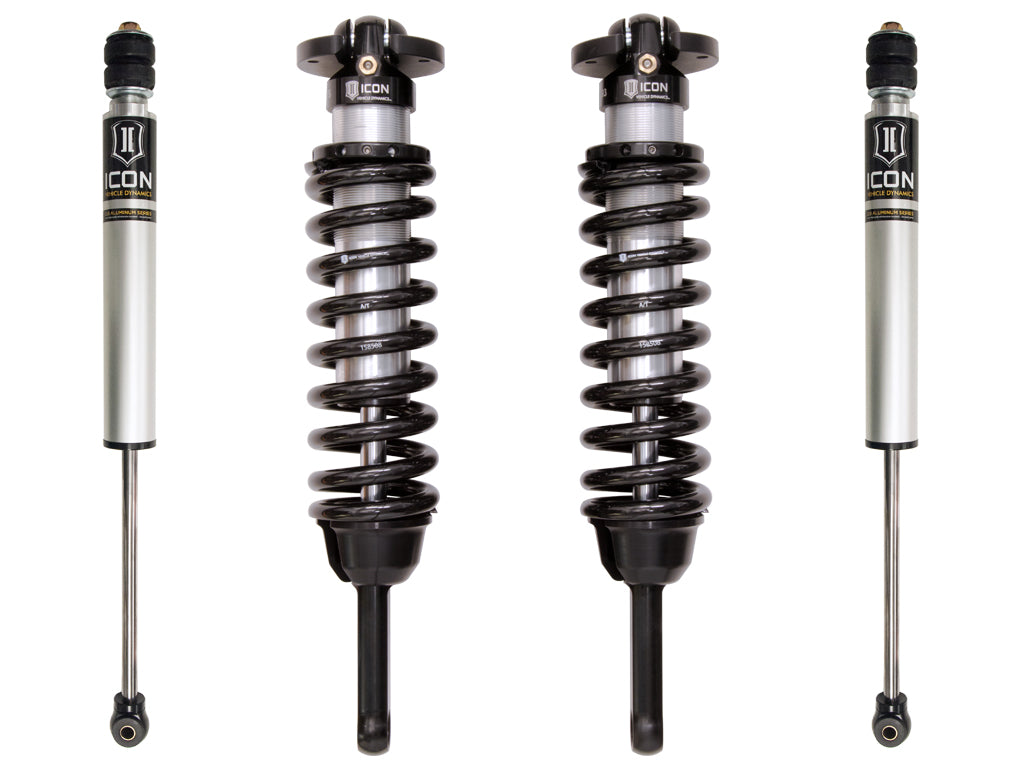

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Specifications:
- Lift height: 0-3.5"
- Position: Front and Rear
Installation notes:
- Up to 33x11.50" Tire with Minor Fender Trimming
- 0 (mm) Offset Aftermarket Wheels Recommended
Fits:
- 2022-2023 Toyota Tacoma: Base (Front and Rear) — with 2" Maximum Lift Rear; Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2005-2015 Toyota Tacoma: Base (4WD, Front and Rear) — with 2" Maximum Lift Rear; Raises Front 0" - 3.5"
- 2006 Toyota Tacoma: Base Prerunner (Front and Rear) — with 2" Maximum Lift Rear; Raises Front 0" - 3.5"
- 2016-2017 Toyota Tacoma: Edicion Especial, Limited, SR, SR5, TRD Off-Road, TRD Sport (Front and Rear) — with 2" Maximum Lift Rear; Raises Front 0" - 2.75"
- 2018-2023 Toyota Tacoma: Edicion Especial, Limited, Sport, SR, SR5, TRD Off-Road, TRD Sport (Front and Rear) — with 2" Maximum Lift Rear; Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2021-2023 Toyota Tacoma: Nightshade (Front and Rear) — with 2" Maximum Lift Rear; Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2005-2015 Toyota Tacoma: Pre Runner (Front and Rear) — with 2" Maximum Lift Rear; Raises Front 0" - 3.5"
- 2017 Toyota Tacoma: Sport (Front and Rear) — with 2" Maximum Lift Rear; Raises Front 0" - 2.75"
- 2006-2009 Toyota Tacoma: SR5 Prerunner, TRD Sport Prerunner (Front and Rear) — with 2" Maximum Lift Rear; Raises Front 0" - 3.5"
- 2021-2022 Toyota Tacoma: Trail (Front and Rear) — with 2" Maximum Lift Rear; Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2023 Toyota Tacoma: Trail Special Edition (Front and Rear) — with 2" Maximum Lift Rear; Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 2.75"
- 2017 Toyota Tacoma: TRD Pro (Front and Rear) — with 1.5" Maximum Lift Rear; Raises Front 0" - 1.25"
- 2018-2023 Toyota Tacoma: TRD Pro (Front and Rear) — with 1.5" Maximum Lift Rear; Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install; Raises Front 0" - 1.25"
- 2015 Toyota Tacoma: TRD Pro (Front and Rear) — with 2" Maximum Lift Rear; Raises Front 0" - 1.75"
- 2010-2015 Toyota Tacoma: TRD Sport (Front and Rear) — with 2" Maximum Lift Rear; Raises Front 0" - 3.5"
Part #: K53001
