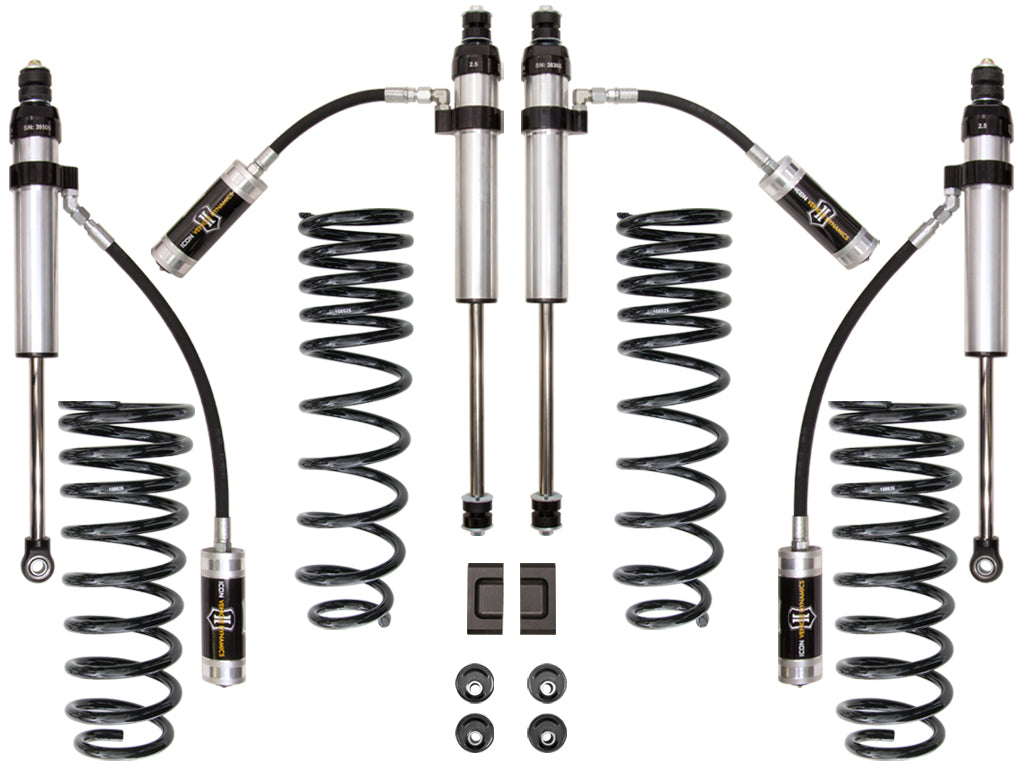

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 2 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.5 Aluminum Series remote reservoir shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. This ICON Stage 2 System is the perfect suspension system for drivers seeking a quality on-road ride with outstanding off-road performance under extreme use.
Specifications:
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 4.63” Backspace
- Lift heights based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher if installed on a stock weighted vehicle.
- Use Up To 33" x 11.50" Tires
- Front Raise Height 3"
- Rear Raise Height 3"
Fits:
- 1991-1992 Toyota Land Cruiser (4.0L GAS, Front and Rear)
- 1993-1997 Toyota Land Cruiser (4.5L GAS, Front and Rear)
Part #: K53092
