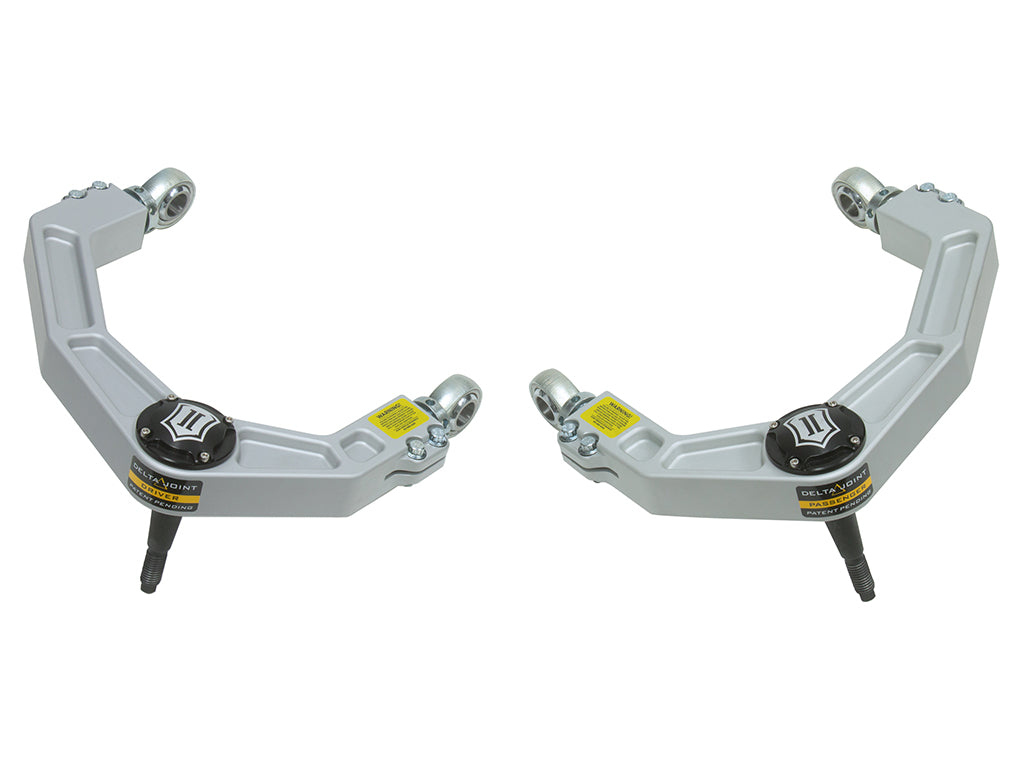

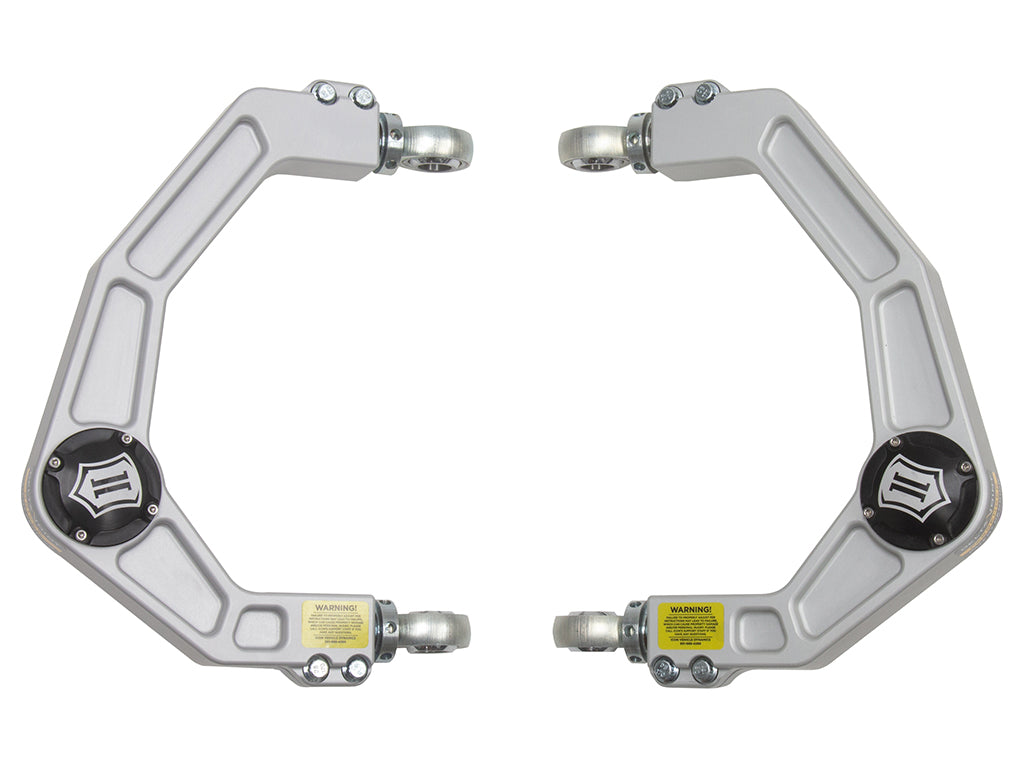

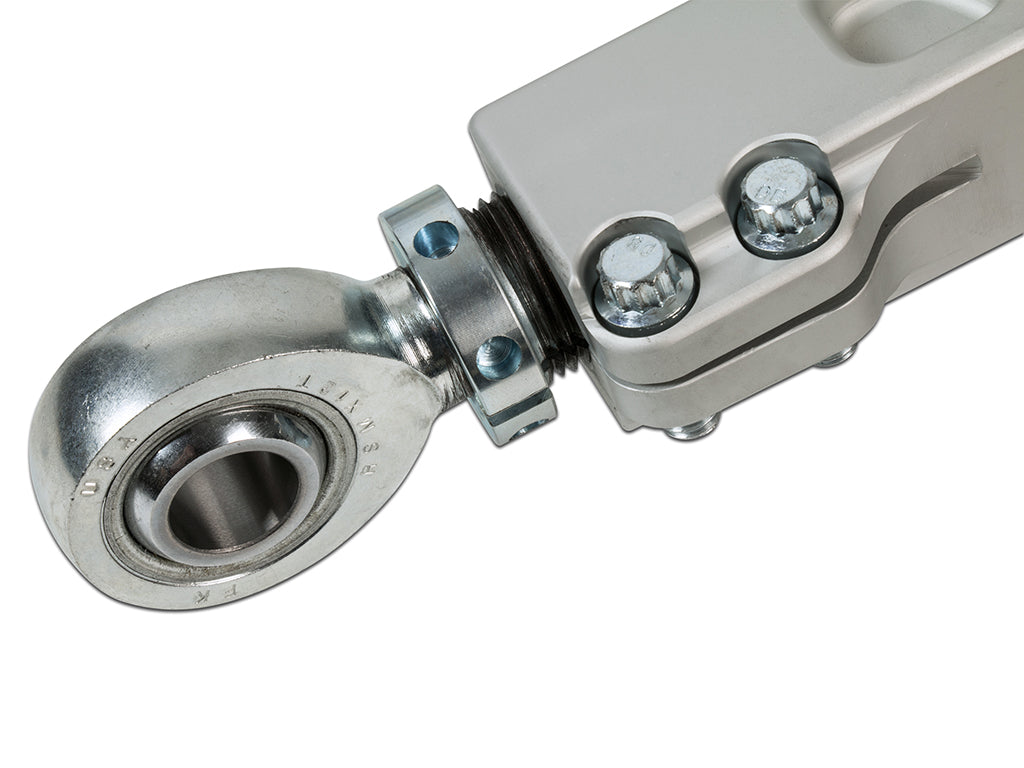

Take the performance of your 2009-2020 Ford F150 to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. These upper control arms are designed to improve the overall performance of the F150 with corrected front-end geometry, adjustable camber and caster, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum, these control arms merge lightweight construction with high strength properties for a product that functions just as well as it looks. Replacing the OE ball joint with the included ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect upgrade for the 2009-2020 Ford F150.
These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Specifications:
- Position: Front Upper
- Finish: Anodized
Installation notes:
- Recommended Aftermarket Wheel Size: 17x8.5" with 5” Backspace / 6mm Offset
- with 0" - 3" Suspension Lift
- with Aftermarket Wheels
- Use Up To 33" x 11.50" Tires
Fits:
- 2014-2017 Ford Expedition: EL King Ranch, EL XL (Front Upper)
- 2014 Ford Expedition: EL Limited, Limited, Max Limited (Front Upper)
- 2015-2017 Ford Expedition: EL Limited (Front Upper) — without Continuously Controlled Damping (CCD) System
- 2016-2017 Ford Expedition: EL SSV (Front Upper)
- 2014-2017 Ford Expedition: EL XLT, King Ranch (Front Upper) — without Factory Installed 20" Aluminum Wheels
- 2020 Ford Expedition: King Ranch (Front Upper) — without Continuously Controlled Damping (CCD) System
- 2015-2020 Ford Expedition: Limited, Max Limited (Front Upper) — without Continuously Controlled Damping (CCD) System
- 2014-2019 Ford Expedition: Max XL, XL (Front Upper)
- 2016-2020 Ford Expedition: SSV (Front Upper)
- 2014-2020 Ford Expedition: XLT (Front Upper)
- 2009 Ford F-150: Flotillera (Front Upper)
- 2010-2013 Ford F-150: FX2 (Front Upper)
- 2014 Ford F-150: FX2 (Front Upper) — without Factory Installed 20" Aluminum Wheels
- 2009-2014 Ford F-150: FX4, STX (Front Upper)
- 2010-2012 Ford F-150: Harley-Davidson Edition (Front Upper)
- 2009-2020 Ford F-150: King Ranch, Lariat, Platinum, XL, XLT (Front Upper)
- 2011 Ford F-150: Lariat Limited (Front Upper)
- 2013-2014, 2016-2020 Ford F-150: Limited (Front Upper)
- 2018-2020 Ford F-150: Police Responder (Front Upper)
- 2016-2017 Ford F-150: SSV (Front Upper) — without Factory Installed 20" Aluminum Wheels
- 2018-2020 Ford F-150: SSV (Leaf rear springs, Front Upper)
- 2014 Ford F-150: Tremor (Front Upper)
Part #: 98505DJ
