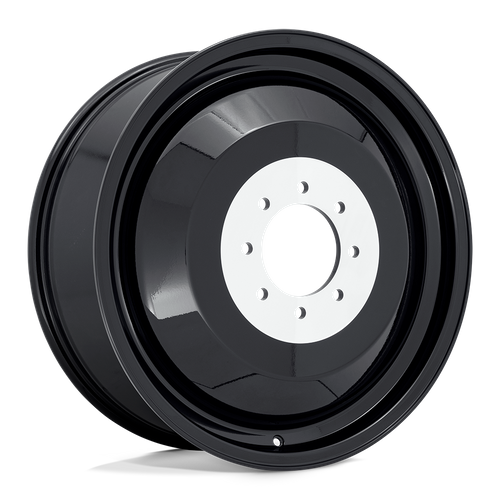

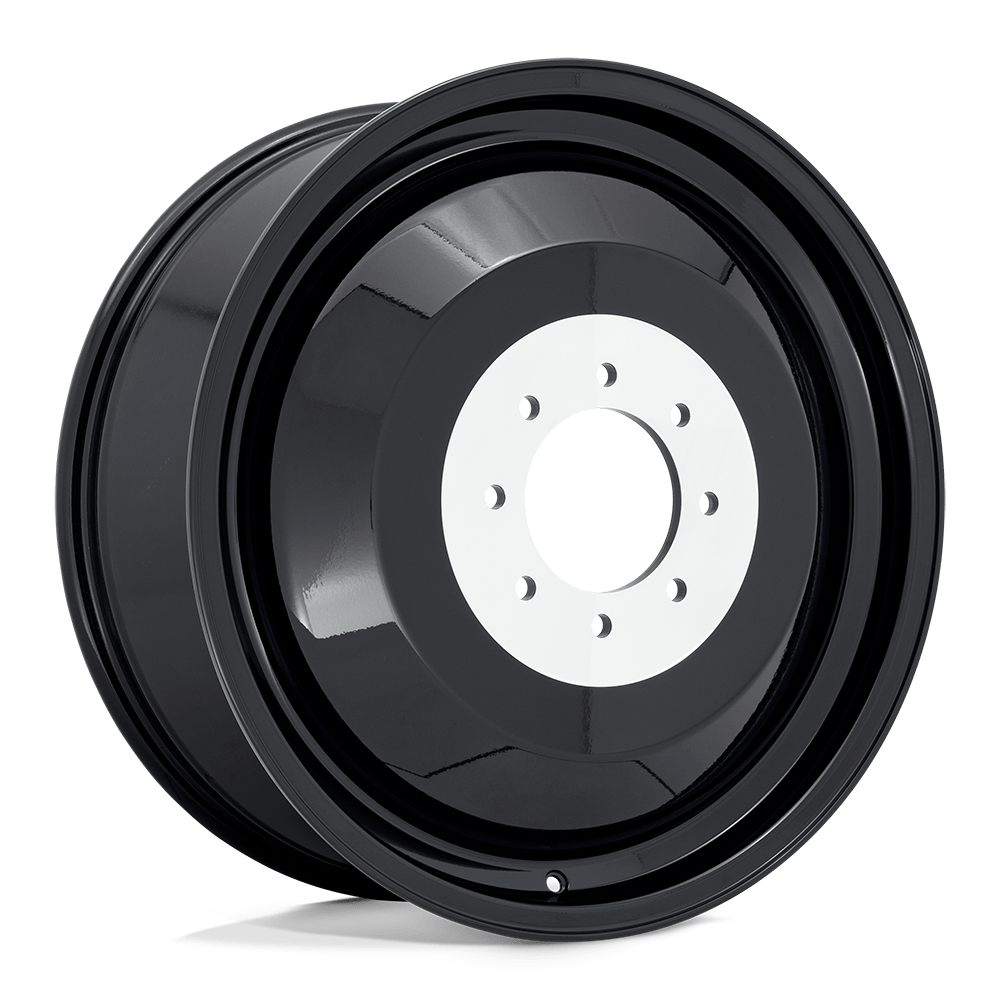

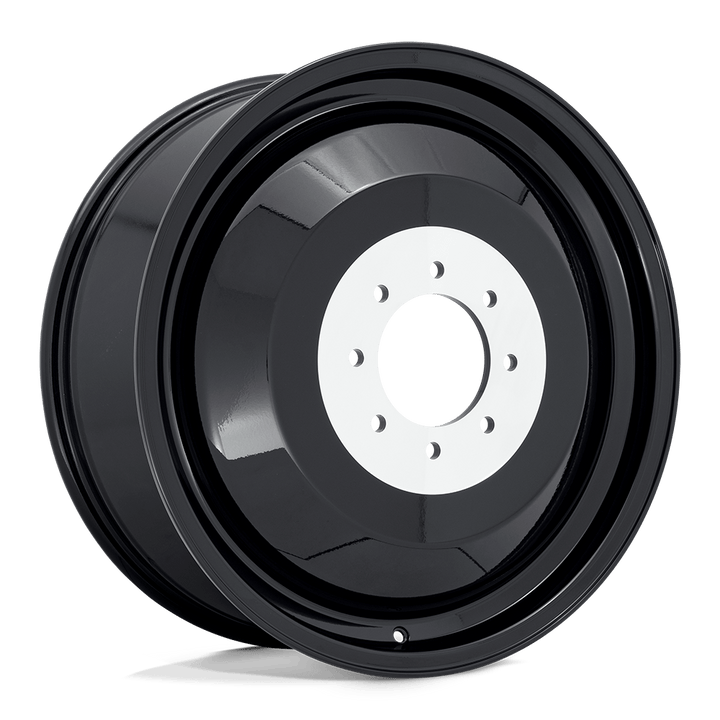

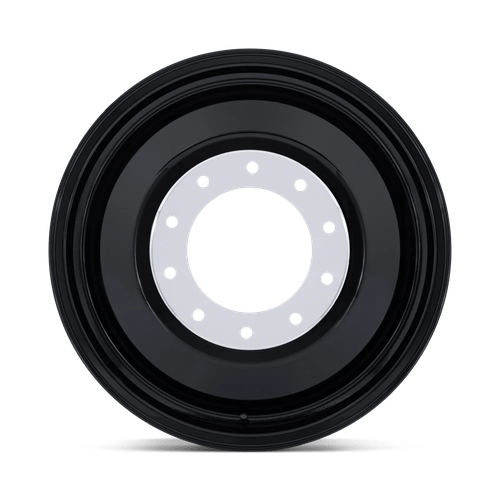

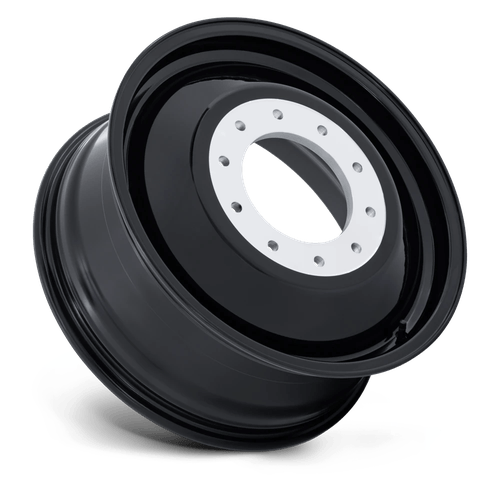

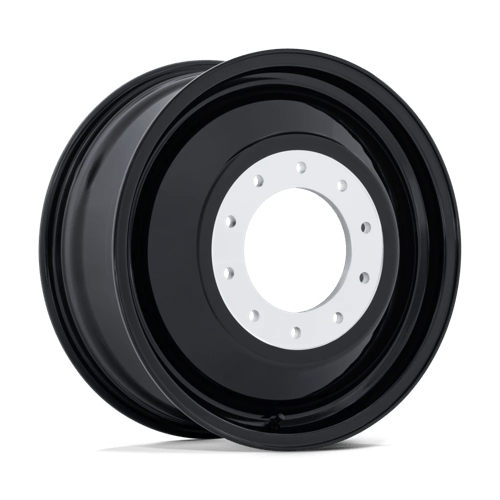

The Fuel Dually Inner is the inner rear wheel for dual-rear-wheel (DRW) trucks: the wheel that mounts behind the outer rear wheel on each side. Finished in Gloss Black in 20", 22" and 24" diameters, all 8.25" wide. The 8-lug versions (8x165.1, 8x170, 8x200, 8x210) are cast aluminum, load rated to 2,500 lbs; the 10-lug 10x225 version is forged aluminum, load rated to 3,750 lbs. TPMS compatible. Match the diameter and bolt pattern of the outer dually wheels on your truck.
| Sizes | 20x8.25, 22x8.25, 24x8.25 |
|---|---|
| Bolt patterns | 8x165.1, 8x170, 8x200, 8x210, 10x225 |
| Offsets | +78mm to +118mm |
| Center bore | 117mm, 121.5mm, 125.1mm, 141mm, 142mm, 154.3mm, 170.1mm |
| Construction | Cast aluminum (8-lug), forged aluminum (10-lug 10x225) |
| Load rating | 2,500 lbs (cast), 3,750 lbs (forged) |
| TPMS | Compatible |
| Finish | Gloss Black |
Part #: D5032082A9, D5032282A9, D5032482A9, D50020828F, D500208292, D50020829D, D501208272, D50120828D, D501208293, D501228217, D501228272, D50122828D, D501228292, D501228293, D50122829D, D501248272, D50124828D, D50124828F, D501248292, D501248293, D50124829D
